Datasheet CD4538BC (Fairchild) - 9
| Fabricante | Fairchild |
| Descripción | Dual Precision Monostable |
| Páginas / Página | 12 / 9 — CD453. Test Circuits and Waveforms. 8BC. FIGURE 14. Power Dissipation … |
| Formato / tamaño de archivo | PDF / 140 Kb |
| Idioma del documento | Inglés |

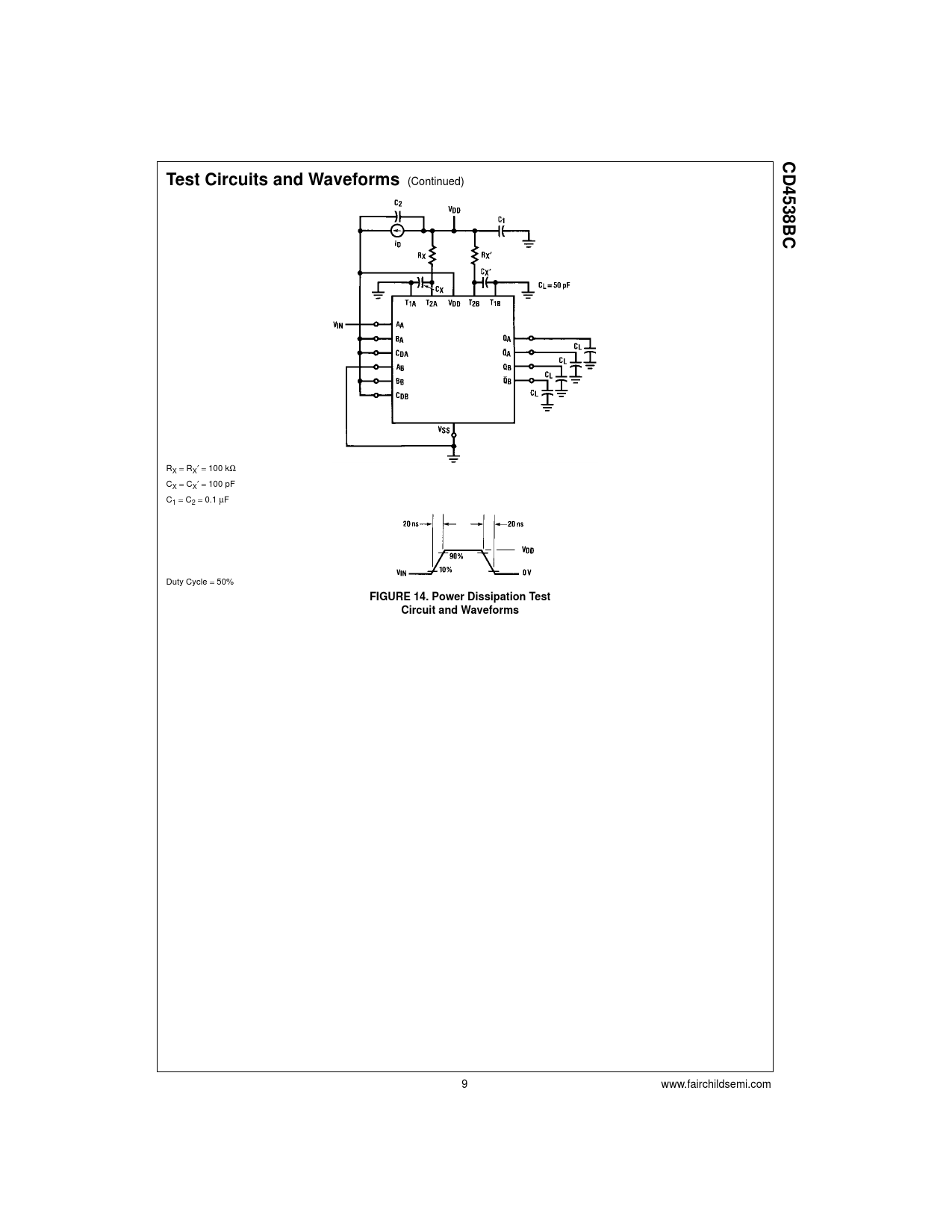

CD453. Test Circuits and Waveforms. 8BC. FIGURE 14. Power Dissipation Test. Circuit and Waveforms
Línea de modelo para esta hoja de datos
Versión de texto del documento
CD453 Test Circuits and Waveforms
(Continued)
8BC
R ′ X = RX = 100 kΩ C ′ X = CX = 100 pF C1 = C2 = 0.1 µF Duty Cycle = 50%
FIGURE 14. Power Dissipation Test Circuit and Waveforms
