Datasheet CD4538BC (Fairchild) - 8
| Fabricante | Fairchild |
| Descripción | Dual Precision Monostable |
| Páginas / Página | 12 / 8 — Test Circuits and Waveforms. 38BC 45 D C. FIGURE 12. Switching Test … |
| Formato / tamaño de archivo | PDF / 140 Kb |
| Idioma del documento | Inglés |

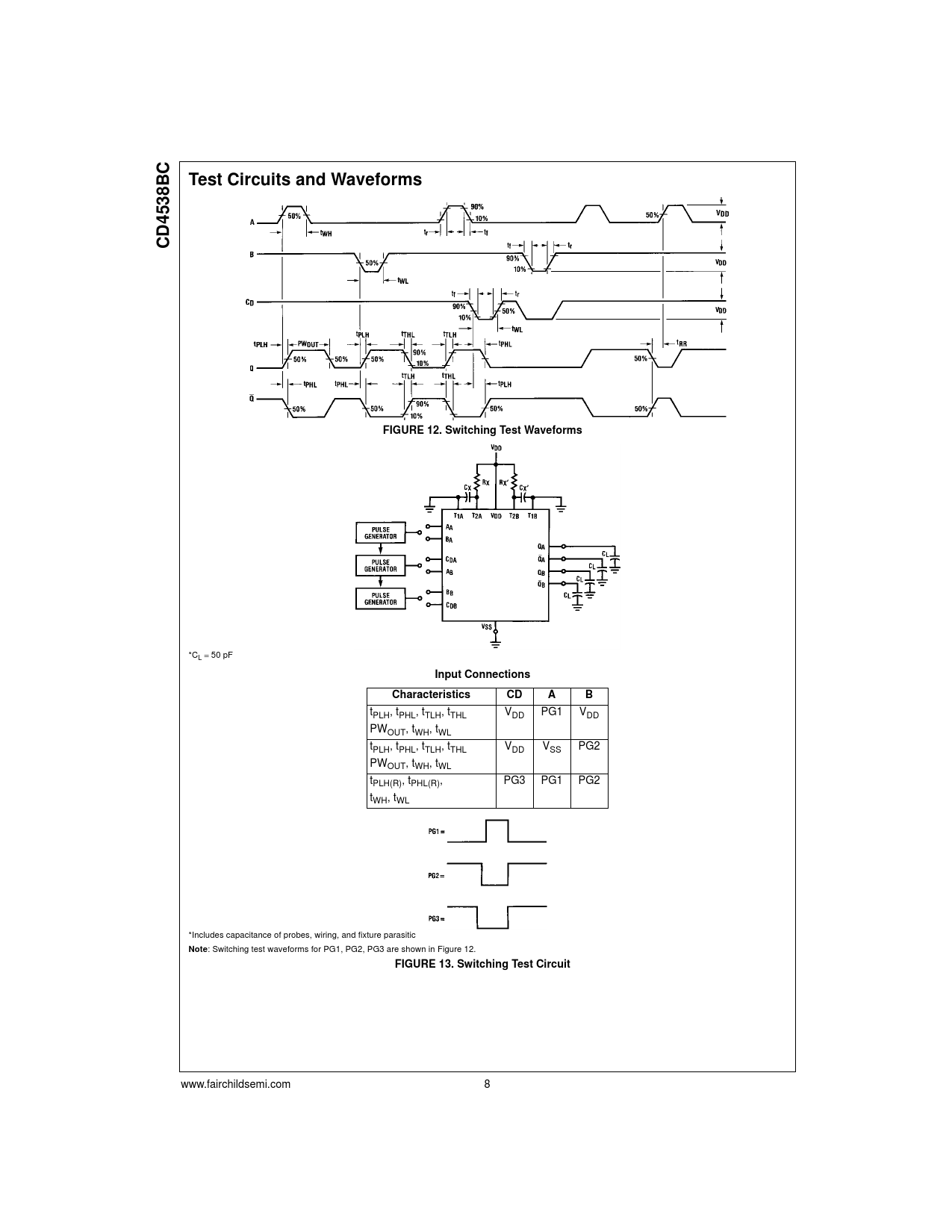

Test Circuits and Waveforms. 38BC 45 D C. FIGURE 12. Switching Test Waveforms. Input Connections. Characteristics. Note
Línea de modelo para esta hoja de datos
Versión de texto del documento
Test Circuits and Waveforms 38BC 45 D C FIGURE 12. Switching Test Waveforms
*CL = 50 pF
Input Connections Characteristics CD A B
tPLH, tPHL, tTLH, tTHL VDD PG1 VDD PWOUT, tWH, tWL tPLH, tPHL, tTLH, tTHL VDD VSS PG2 PWOUT, tWH, tWL tPLH(R), tPHL(R), PG3 PG1 PG2 tWH, tWL *Includes capacitance of probes, wiring, and fixture parasitic
Note
: Switching test waveforms for PG1, PG2, PG3 are shown in Figure 12.
FIGURE 13. Switching Test Circuit
www.fairchildsemi.com 8
*CL = 50 pF
Input Connections Characteristics CD A B
tPLH, tPHL, tTLH, tTHL VDD PG1 VDD PWOUT, tWH, tWL tPLH, tPHL, tTLH, tTHL VDD VSS PG2 PWOUT, tWH, tWL tPLH(R), tPHL(R), PG3 PG1 PG2 tWH, tWL *Includes capacitance of probes, wiring, and fixture parasitic
Note
: Switching test waveforms for PG1, PG2, PG3 are shown in Figure 12.
FIGURE 13. Switching Test Circuit
www.fairchildsemi.com 8
