Datasheet BCV61 (Infineon)
| Fabricante | Infineon |
| Descripción | NPN Silicon Double Transistor |
| Páginas / Página | 7 / 1 — BCV61. NPN Silicon Double Transistor. Type. Marking. Pin Configuration. … |
| Revisión | 01_01 |
| Formato / tamaño de archivo | PDF / 544 Kb |
| Idioma del documento | Inglés |

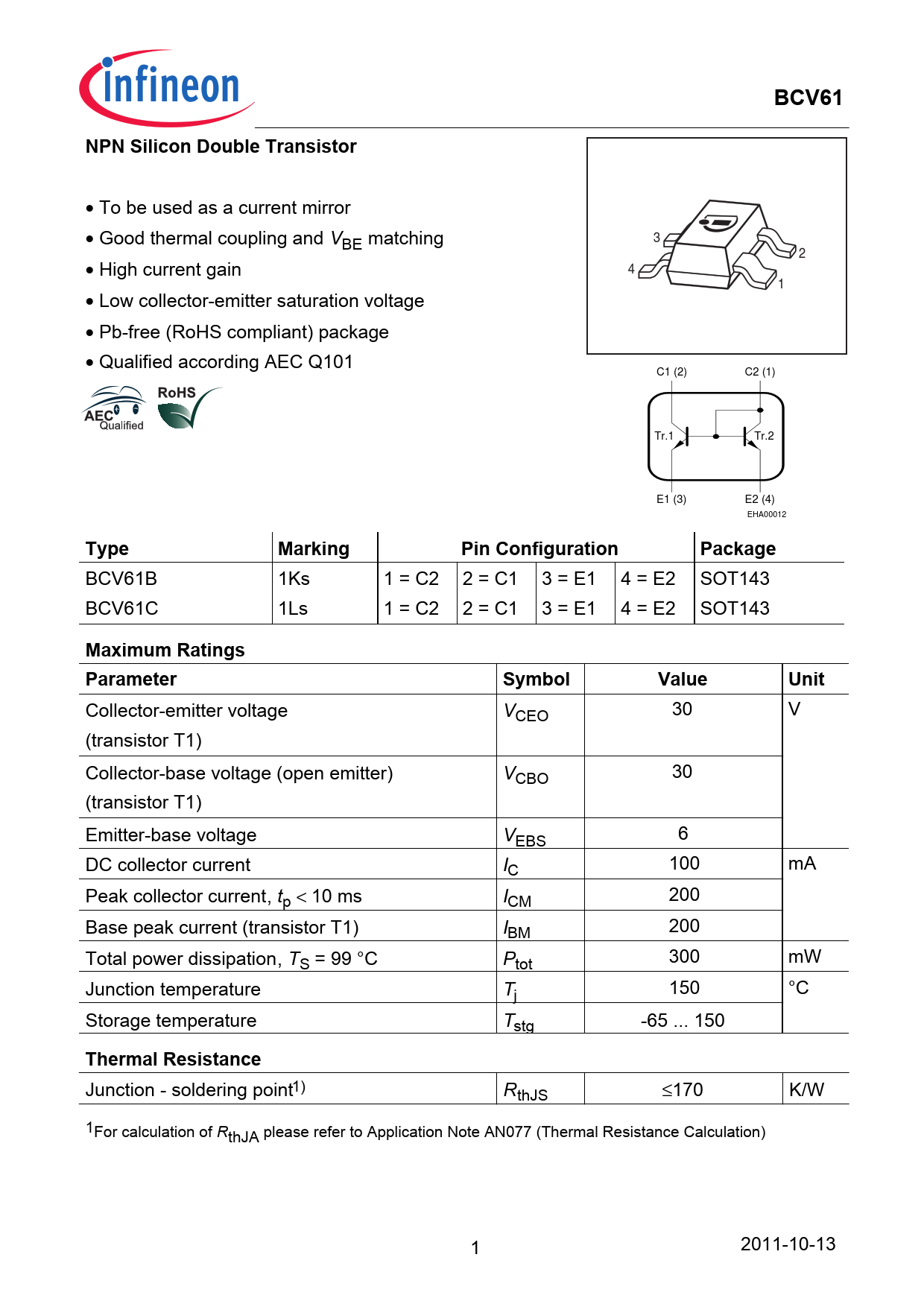

BCV61. NPN Silicon Double Transistor. Type. Marking. Pin Configuration. Package. Maximum Ratings Parameter. Symbol. Value. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
BCV61 NPN Silicon Double Transistor
• To be used as a current mirror • Good thermal coupling and VBE matching 3 2 • High current gain 4 1 • Low collector-emitter saturation voltage • Pb-free (RoHS compliant) package • Qualified according AEC Q101 C1 (2) C2 (1) Tr.1 Tr.2 E1 (3) E2 (4) EHA00012
Type Marking Pin Configuration Package
BCV61B 1Ks 1 = C2 2 = C1 3 = E1 4 = E2 SOT143 BCV61C 1Ls 1 = C2 2 = C1 3 = E1 4 = E2 SOT143
Maximum Ratings Parameter Symbol Value Unit
Collector-emitter voltage VCEO 30 V (transistor T1) Collector-base voltage (open emitter) VCBO 30 (transistor T1) Emitter-base voltage VEBS 6 DC collector current IC 100 mA Peak collector current, tp < 10 ms ICM 200 Base peak current (transistor T1) IBM 200 Total power dissipation, TS = 99 °C Ptot 300 mW Junction temperature Tj 150 °C Storage temperature Tstg -65 ... 150
Thermal Resistance
Junction - soldering point1) RthJS ≤170 K/W 1For calculation of RthJA please refer to Application Note AN077 (Thermal Resistance Calculation) 1 2011-10-13
• To be used as a current mirror • Good thermal coupling and VBE matching 3 2 • High current gain 4 1 • Low collector-emitter saturation voltage • Pb-free (RoHS compliant) package • Qualified according AEC Q101 C1 (2) C2 (1) Tr.1 Tr.2 E1 (3) E2 (4) EHA00012
Type Marking Pin Configuration Package
BCV61B 1Ks 1 = C2 2 = C1 3 = E1 4 = E2 SOT143 BCV61C 1Ls 1 = C2 2 = C1 3 = E1 4 = E2 SOT143
Maximum Ratings Parameter Symbol Value Unit
Collector-emitter voltage VCEO 30 V (transistor T1) Collector-base voltage (open emitter) VCBO 30 (transistor T1) Emitter-base voltage VEBS 6 DC collector current IC 100 mA Peak collector current, tp < 10 ms ICM 200 Base peak current (transistor T1) IBM 200 Total power dissipation, TS = 99 °C Ptot 300 mW Junction temperature Tj 150 °C Storage temperature Tstg -65 ... 150
Thermal Resistance
Junction - soldering point1) RthJS ≤170 K/W 1For calculation of RthJA please refer to Application Note AN077 (Thermal Resistance Calculation) 1 2011-10-13
