PolySwitch® Resettable PTCs. Electrical Characteristics. TS250/TSL250/TSM250/TSV250 – Surface-mount — 250VAC
Línea de modelo para esta hoja de datos
Versión de texto del documento

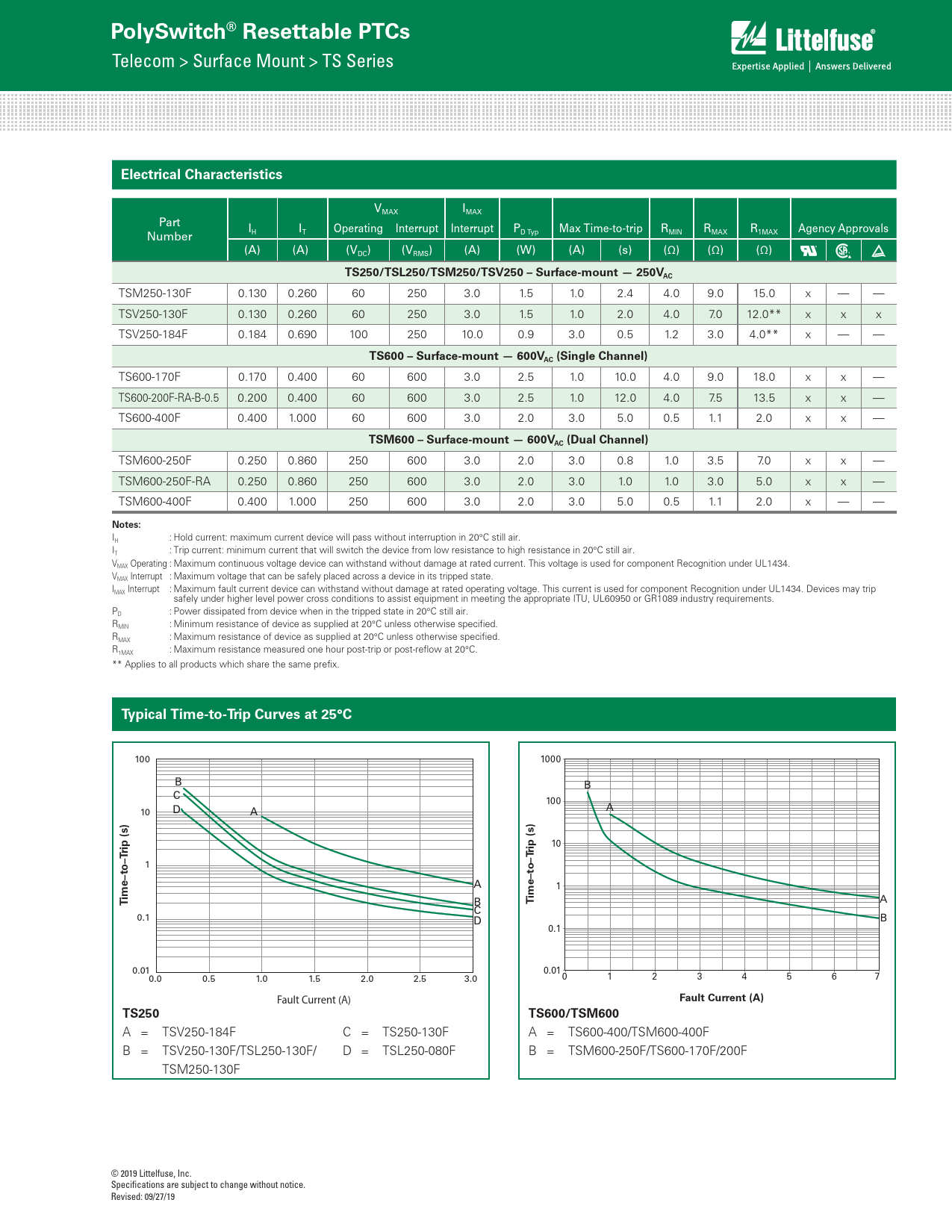

PolySwitch® Resettable PTCs
Telecom > Surface Mount > TS Series
Electrical Characteristics
VMAX IMAX Part I Operating Interrupt Interrupt P Number H IT D Typ Max Time-to-trip RMIN RMAX R1MAX Agency Approvals (A) (A) (VDC) (VRMS) (A) (W) (A) (s) (Ω) (Ω) (Ω)
TS250/TSL250/TSM250/TSV250 – Surface-mount — 250VAC
TSM250-130F 0.130 0.260 60 250 3.0 1.5 1.0 2.4 4.0 9.0 15.0 x — — TSV250-130F 0.130 0.260 60 250 3.0 1.5 1.0 2.0 4.0 7.0 12.0** x x x TSV250-184F 0.184 0.690 100 250 10.0 0.9 3.0 0.5 1.2 3.0 4.0** x — —
TS600 – Surface-mount — 600VAC (Single Channel)
TS600-170F 0.170 0.400 60 600 3.0 2.5 1.0 10.0 4.0 9.0 18.0 x x — TS600-200F-RA-B-0.5 0.200 0.400 60 600 3.0 2.5 1.0 12.0 4.0 7.5 13.5 x x — TS600-400F 0.400 1.000 60 600 3.0 2.0 3.0 5.0 0.5 1.1 2.0 x x —
TSM600 – Surface-mount — 600VAC (Dual Channel)
TSM600-250F 0.250 0.860 250 600 3.0 2.0 3.0 0.8 1.0 3.5 7.0 x x — TSM600-250F-RA 0.250 0.860 250 600 3.0 2.0 3.0 1.0 1.0 3.0 5.0 x x — TSM600-400F 0.400 1.000 250 600 3.0 2.0 3.0 5.0 0.5 1.1 2.0 x — —
Notes:
IH : Hold current: maximum current device will pass without interruption in 20°C still air. IT : Trip current: minimum current that will switch the device from low resistance to high resistance in 20°C still air. VMAX Operating : Maximum continuous voltage device can withstand without damage at rated current. This voltage is used for component Recognition under UL1434. VMAX Interrupt : Maximum voltage that can be safely placed across a device in its tripped state. IMAX Interrupt : Maximum fault current device can withstand without damage at rated operating voltage. This current is used for component Recognition under UL1434. Devices may trip safely under higher level power cross conditions to assist equipment in meeting the appropriate ITU, UL60950 or GR1089 industry requirements. PD : Power dissipated from device when in the tripped state in 20°C still air. RMIN : Minimum resistance of device as supplied at 20°C unless otherwise specified. RMAX : Maximum resistance of device as supplied at 20°C unless otherwise specified. R1MAX : Maximum resistance measured one hour post-trip or post-reflow at 20°C. ** Applies to all products which share the same prefix.
Typical Time-to-Trip Curves at 25°C
100 1000 B B C 100 10 D A A
rip (s) rip (s)
10
o–T
1
o–T
A 1
Time–t
B
Time–t
A C 0.1 D B 0.1 0.01 0.01 0.0 0.5 1.0 1.5 2.0 2.5 3.0 0 1 2 3 4 5 6 7 Fault Current (A)
Fault Current (A) TS250 TS600/TSM600
A = TSV250-184F C = TS250-130F A = TS600-400/TSM600-400F B = TSV250-130F/TSL250-130F/ D = TSL250-080F B = TSM600-250F/TS600-170F/200F TSM250-130F © 2019 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 09/27/19
Telecom > Surface Mount > TS Series
Electrical Characteristics
VMAX IMAX Part I Operating Interrupt Interrupt P Number H IT D Typ Max Time-to-trip RMIN RMAX R1MAX Agency Approvals (A) (A) (VDC) (VRMS) (A) (W) (A) (s) (Ω) (Ω) (Ω)
TS250/TSL250/TSM250/TSV250 – Surface-mount — 250VAC
TSM250-130F 0.130 0.260 60 250 3.0 1.5 1.0 2.4 4.0 9.0 15.0 x — — TSV250-130F 0.130 0.260 60 250 3.0 1.5 1.0 2.0 4.0 7.0 12.0** x x x TSV250-184F 0.184 0.690 100 250 10.0 0.9 3.0 0.5 1.2 3.0 4.0** x — —
TS600 – Surface-mount — 600VAC (Single Channel)
TS600-170F 0.170 0.400 60 600 3.0 2.5 1.0 10.0 4.0 9.0 18.0 x x — TS600-200F-RA-B-0.5 0.200 0.400 60 600 3.0 2.5 1.0 12.0 4.0 7.5 13.5 x x — TS600-400F 0.400 1.000 60 600 3.0 2.0 3.0 5.0 0.5 1.1 2.0 x x —
TSM600 – Surface-mount — 600VAC (Dual Channel)
TSM600-250F 0.250 0.860 250 600 3.0 2.0 3.0 0.8 1.0 3.5 7.0 x x — TSM600-250F-RA 0.250 0.860 250 600 3.0 2.0 3.0 1.0 1.0 3.0 5.0 x x — TSM600-400F 0.400 1.000 250 600 3.0 2.0 3.0 5.0 0.5 1.1 2.0 x — —
Notes:
IH : Hold current: maximum current device will pass without interruption in 20°C still air. IT : Trip current: minimum current that will switch the device from low resistance to high resistance in 20°C still air. VMAX Operating : Maximum continuous voltage device can withstand without damage at rated current. This voltage is used for component Recognition under UL1434. VMAX Interrupt : Maximum voltage that can be safely placed across a device in its tripped state. IMAX Interrupt : Maximum fault current device can withstand without damage at rated operating voltage. This current is used for component Recognition under UL1434. Devices may trip safely under higher level power cross conditions to assist equipment in meeting the appropriate ITU, UL60950 or GR1089 industry requirements. PD : Power dissipated from device when in the tripped state in 20°C still air. RMIN : Minimum resistance of device as supplied at 20°C unless otherwise specified. RMAX : Maximum resistance of device as supplied at 20°C unless otherwise specified. R1MAX : Maximum resistance measured one hour post-trip or post-reflow at 20°C. ** Applies to all products which share the same prefix.
Typical Time-to-Trip Curves at 25°C
100 1000 B B C 100 10 D A A
rip (s) rip (s)
10
o–T
1
o–T
A 1
Time–t
B
Time–t
A C 0.1 D B 0.1 0.01 0.01 0.0 0.5 1.0 1.5 2.0 2.5 3.0 0 1 2 3 4 5 6 7 Fault Current (A)
Fault Current (A) TS250 TS600/TSM600
A = TSV250-184F C = TS250-130F A = TS600-400/TSM600-400F B = TSV250-130F/TSL250-130F/ D = TSL250-080F B = TSM600-250F/TS600-170F/200F TSM250-130F © 2019 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 09/27/19
