Datasheet AP7315Q (Diodes)
| Fabricante | Diodes |
| Descripción | Automotive Compliant 150MA High Psrr Low Noise Ldo With Enable |
| Páginas / Página | 12 / 1 — AP7315Q. AUTOMOTIVE COMPLIANT 150mA HIGH PSRR LOW NOISE LDO WITH ENABLE. … |
| Formato / tamaño de archivo | PDF / 543 Kb |
| Idioma del documento | Inglés |
AP7315Q. AUTOMOTIVE COMPLIANT 150mA HIGH PSRR LOW NOISE LDO WITH ENABLE. Description. Pin Assignments. (Top View). VIN 1. OUT. GND 2
Línea de modelo para esta hoja de datos
Versión de texto del documento

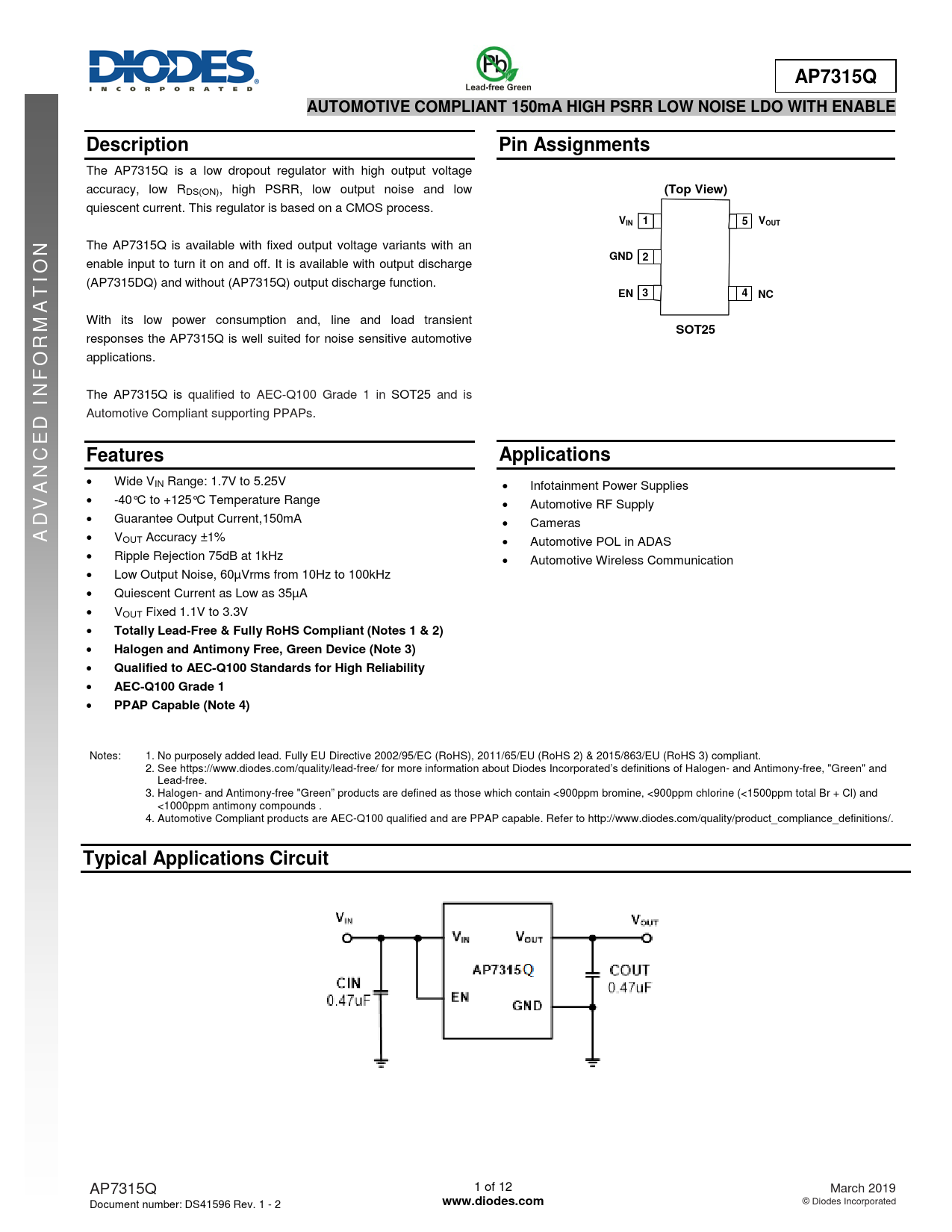

AP7315Q AUTOMOTIVE COMPLIANT 150mA HIGH PSRR LOW NOISE LDO WITH ENABLE Description Pin Assignments
The AP7315Q is a low dropout regulator with high output voltage accuracy, low RDS(ON), high PSRR, low output noise and low
(Top View)
quiescent current. This regulator is based on a CMOS process.
VIN 1 5 V OUT N
The AP7315Q is available with fixed output voltage variants with an
GND 2 IO
enable input to turn it on and off. It is available with output discharge (AP7315DQ) and without (AP7315Q) output discharge function.
AT EN 3 4 NC
With its low power consumption and, line and load transient
RM SOT25
responses the AP7315Q is well suited for noise sensitive automotive
O
applications.
F N I
The AP7315Q is qualified to AEC-Q100 Grade 1 in SOT25 and is
D
Automotive Compliant supporting PPAPs.
E C Features Applications
• Wide VIN Range: 1.7V to 5.25V • Infotainment Power Supplies • -40°C to +125°C Temperature Range • Automotive RF Supply • Guarantee Output Current,150mA •
ADVAN
Cameras • VOUT Accuracy ±1% • Automotive POL in ADAS • Ripple Rejection 75dB at 1kHz • Automotive Wireless Communication • Low Output Noise, 60µVrms from 10Hz to 100kHz • Quiescent Current as Low as 35µA • VOUT Fixed 1.1V to 3.3V •
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free, Green Device (Note 3)
•
Qualified to AEC-Q100 Standards for High Reliability
•
AEC-Q100 Grade 1
•
PPAP Capable (Note 4)
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds . 4. Automotive Compliant products are AEC-Q100 qualified and are PPAP capable. Refer to http://www.diodes.com/quality/product_compliance_definitions/.
Typical Applications Circuit
AP7315Q 1 of 12 March 2019 Document number: DS41596 Rev. 1 - 2
www.diodes.com
© Diodes Incorporated Document Outline Pin Assignments Description Applications Features
