NLM0011/ NLM0010 " NFC-PWM Series ". NFC Wireless Configuration IC with PWM Output. 3 Application Overview

NLM0011/ NLM0010 " NFC-PWM Series " NFC Wireless Configuration IC with PWM Output 3 Application Overview

Línea de modelo para esta hoja de datos

Versión de texto del documento

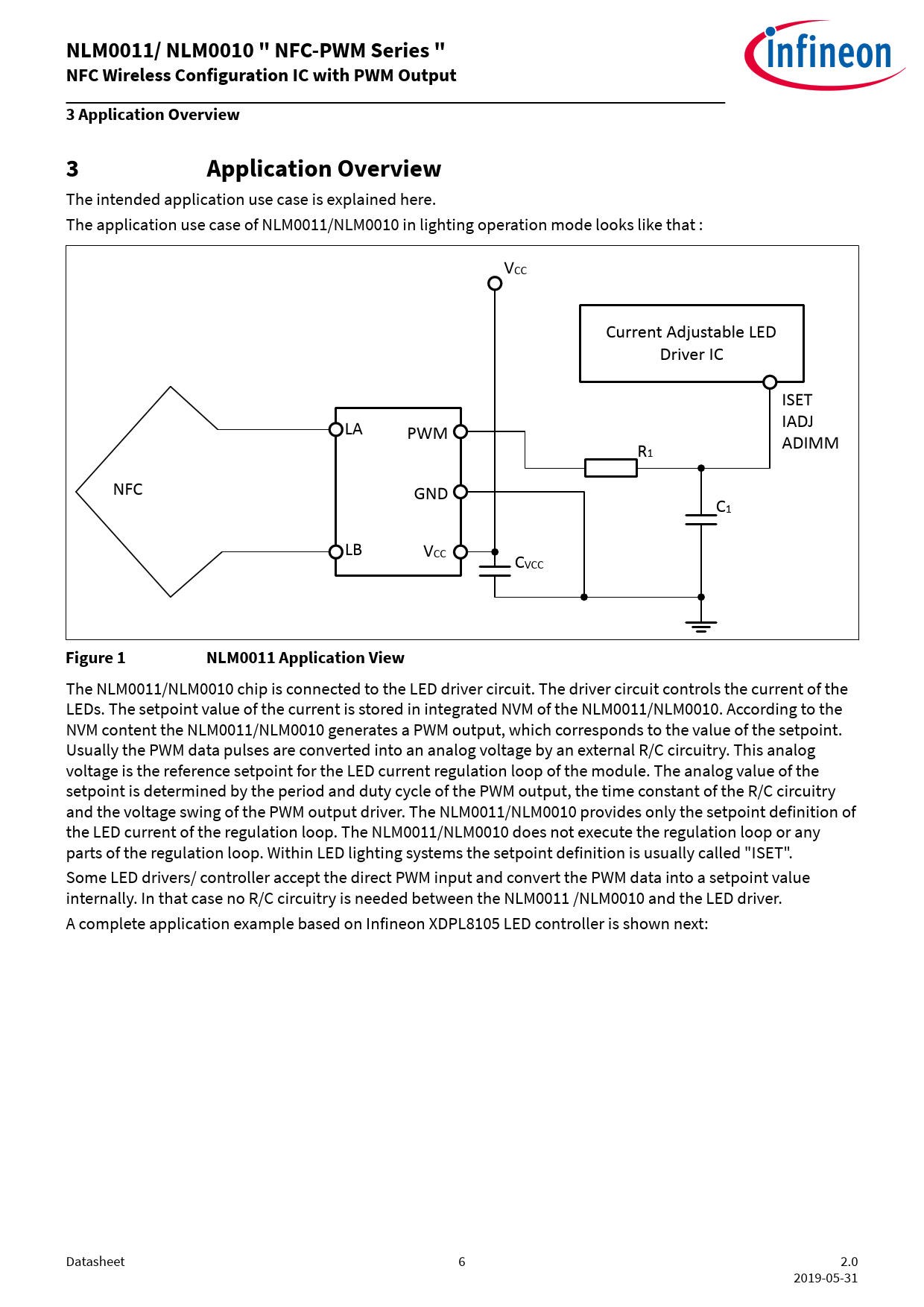

NLM0011/ NLM0010 " NFC-PWM Series " NFC Wireless Configuration IC with PWM Output 3 Application Overview 3 Application Overview
The intended application use case is explained here. The application use case of NLM0011/NLM0010 in lighting operation mode looks like that : VCC Current Adjustable LED Driver IC ISET IADJ LA PWM ADIMM R1 NFC GND C1 LB VCC CVCC
Figure 1 NLM0011 Application View
The NLM0011/NLM0010 chip is connected to the LED driver circuit. The driver circuit controls the current of the LEDs. The setpoint value of the current is stored in integrated NVM of the NLM0011/NLM0010. According to the NVM content the NLM0011/NLM0010 generates a PWM output, which corresponds to the value of the setpoint. Usually the PWM data pulses are converted into an analog voltage by an external R/C circuitry. This analog voltage is the reference setpoint for the LED current regulation loop of the module. The analog value of the setpoint is determined by the period and duty cycle of the PWM output, the time constant of the R/C circuitry and the voltage swing of the PWM output driver. The NLM0011/NLM0010 provides only the setpoint definition of the LED current of the regulation loop. The NLM0011/NLM0010 does not execute the regulation loop or any parts of the regulation loop. Within LED lighting systems the setpoint definition is usually called "ISET". Some LED drivers/ controller accept the direct PWM input and convert the PWM data into a setpoint value internally. In that case no R/C circuitry is needed between the NLM0011 /NLM0010 and the LED driver. A complete application example based on Infineon XDPL8105 LED controller is shown next: Datasheet 6 2.0 2019-05-31 Document Outline Features Description Table of contents 1 General 2 Feature Overview 3 Application Overview 4 Pin Description 5 Functional Description 6 Memory Organization 7 Application and User Memory Access Control 8 NLM0011/NLM0010 EEPROM Shipment Content (Infineon to Customer) 9 Constant Lumen Output (CLO) and Operating Time Counting (OTC) 10 PWM Overview 11 NLM0011/ NLM0010 Command Set 12 NLM0011/ NLM0010 Electrical Characteristics 13 Package Outline Revision history Disclaimer
