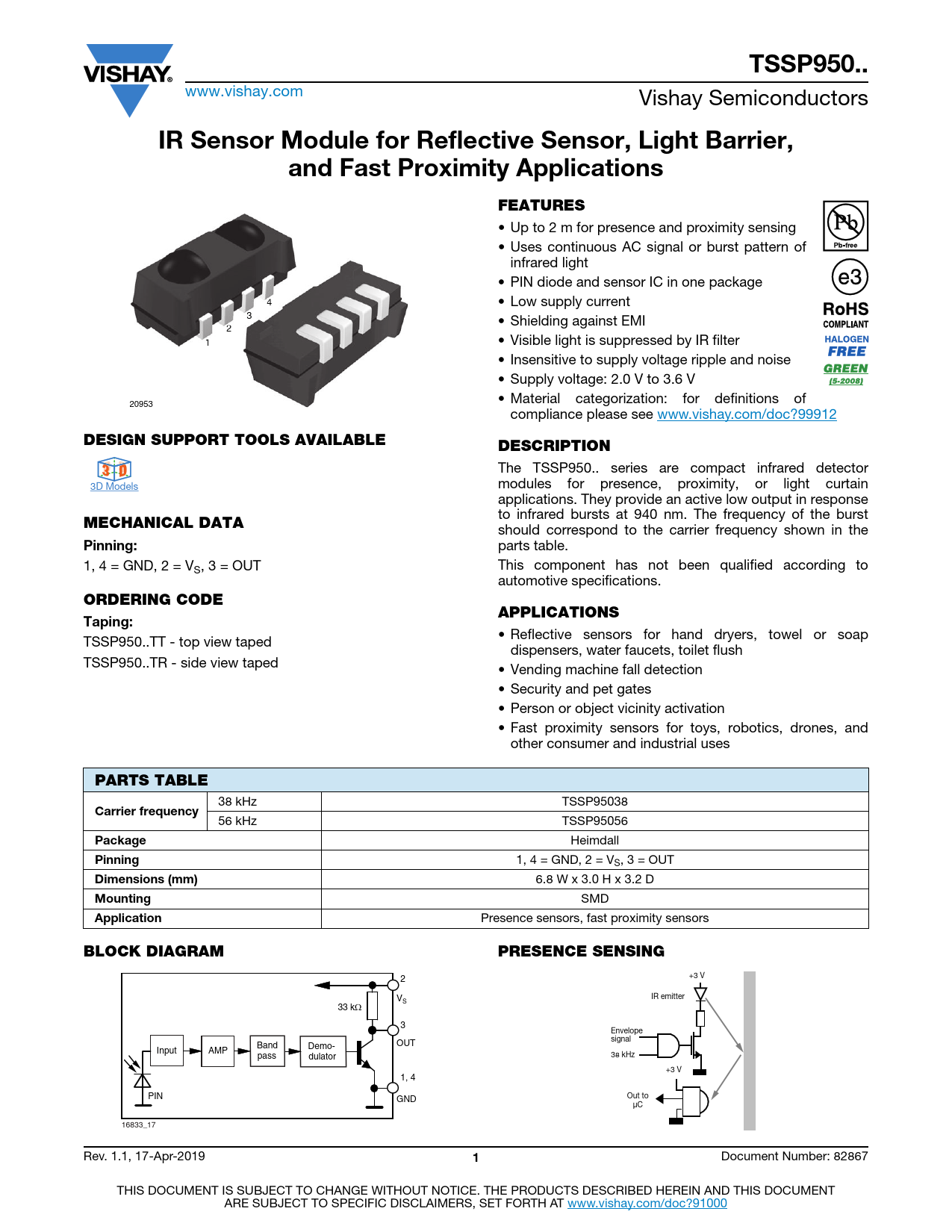

TSSP950.. IR Sensor Module for Reflective Sensor, Light Barrier,. and Fast Proximity Applications. FEATURES
Línea de modelo para esta hoja de datos
Versión de texto del documento
TSSP950..
www.vishay.com Vishay Semiconductors
IR Sensor Module for Reflective Sensor, Light Barrier, and Fast Proximity Applications FEATURES
• Up to 2 m for presence and proximity sensing • Uses continuous AC signal or burst pattern of infrared light • PIN diode and sensor IC in one package 4 • Low supply current 3 • Shielding against EMI 2 1 • Visible light is suppressed by IR filter • Insensitive to supply voltage ripple and noise • Supply voltage: 2.0 V to 3.6 V • Material categorization: for definitions of 20953 20953 compliance please see www.vishay.com/doc?99912
DESIGN SUPPORT TOOLS AVAILABLE DESCRIPTION D 3
The TSSP950.. series are compact infrared detector
3 D
3D Models modules for presence, proximity, or light curtain applications. They provide an active low output in response
MECHANICAL DATA
to infrared bursts at 940 nm. The frequency of the burst should correspond to the carrier frequency shown in the
Pinning:
parts table. 1, 4 = GND, 2 = VS, 3 = OUT This component has not been qualified according to automotive specifications.
ORDERING CODE APPLICATIONS Taping:
• Reflective sensors for hand dryers, towel or soap TSSP950..TT - top view taped dispensers, water faucets, toilet flush TSSP950..TR - side view taped • Vending machine fall detection • Security and pet gates • Person or object vicinity activation • Fast proximity sensors for toys, robotics, drones, and other consumer and industrial uses
PARTS TABLE
38 kHz TSSP95038
Carrier frequency
56 kHz TSSP95056
Package
Heimdall
Pinning
1, 4 = GND, 2 = VS, 3 = OUT
Dimensions (mm)
6.8 W x 3.0 H x 3.2 D
Mounting
SMD
Application
Presence sensors, fast proximity sensors
BLOCK DIAGRAM PRESENCE SENSING
2 +3 V V IR emitter S 33 kΩ 3 Envelope signal Band Demo- OUT Input AMP pass dulator 38 kHz +3 V 1, 4 PIN GND Out to μC 16833_17 Rev. 1.1, 17-Apr-2019
1
