Datasheet TSSP930 (Vishay) - 5
| Fabricante | Vishay |
| Descripción | IR Sensor Module for Reflective Sensor, Light Barrier, and Fast Proximity Applications |
| Páginas / Página | 7 / 5 — TSSP930.. PACKAGE DIMENSIONS |
| Formato / tamaño de archivo | PDF / 199 Kb |
| Idioma del documento | Inglés |
TSSP930.. PACKAGE DIMENSIONS
Línea de modelo para esta hoja de datos
Versión de texto del documento
TSSP930..
www.vishay.com Vishay Semiconductors
PACKAGE DIMENSIONS

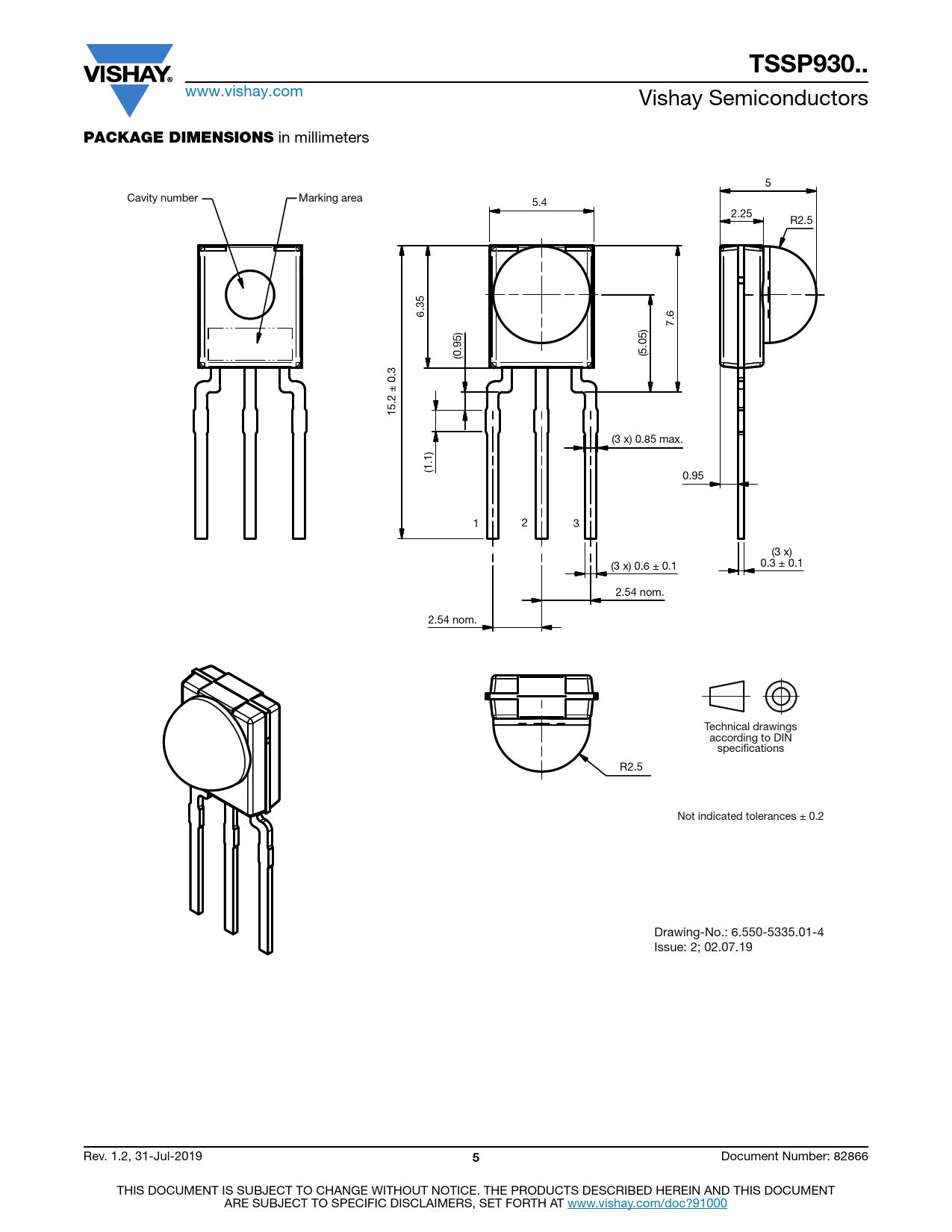

in millimeters 5 Cavity number Marking area 5.4 2.25 R2.5 6.35 7.6 (5.05) (0.95) 15.2 ± 0.3 (3 x) 0.85 max. (1.1) 0.95 1 2 3 (3 x) 0.3 ± 0.1 (3 x) 0.6 ± 0.1 2.54 nom. 2.54 nom. Technical drawings according to DIN specifications R2.5 Not indicated tolerances ± 0.2 Drawing-No.: 6.550-5335.01-4 Issue: 2; 02.07.19 Rev. 1.2, 31-Jul-2019
