Datasheet P9222-R (IDT) - 10
| Fabricante | IDT |
| Descripción | Wireless Power Receiver for Low Power Applications |
| Páginas / Página | 52 / 10 |
| Revisión | 20190927 |
| Formato / tamaño de archivo | PDF / 2.8 Mb |
| Idioma del documento | Inglés |
Línea de modelo para esta hoja de datos
Versión de texto del documento

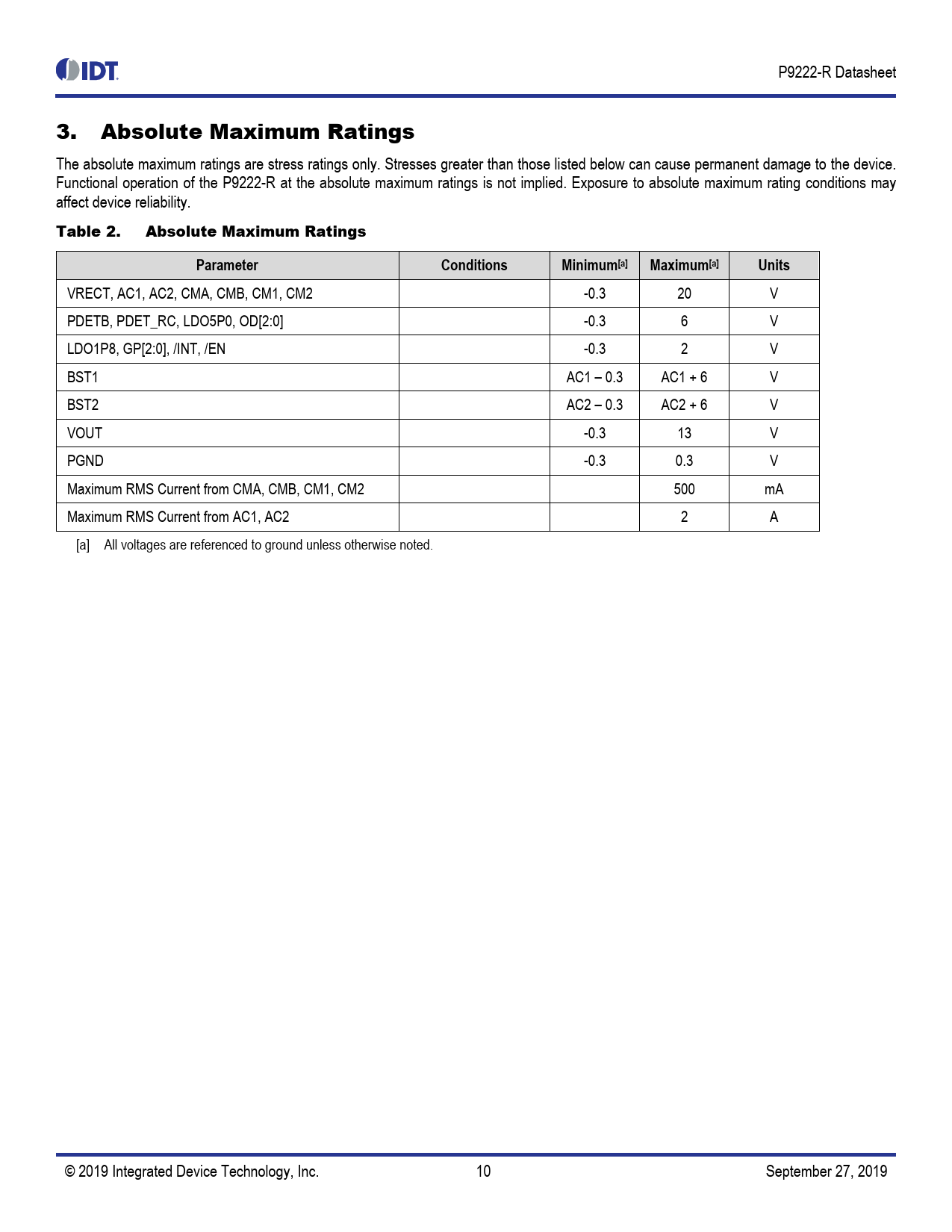

P9222-R Datasheet 3. Absolute Maximum Ratings The absolute maximum ratings are stress ratings only. Stresses greater than those listed below can cause permanent damage to the device.
Functional operation of the P9222-R at the absolute maximum ratings is not implied. Exposure to absolute maximum rating conditions may
affect device reliability.
Table 2. Absolute Maximum Ratings Parameter Conditions Minimum[a] Maximum[a] Units VRECT, AC1, AC2, CMA, CMB, CM1, CM2 -0.3 20 V PDETB, PDET_RC, LDO5P0, OD[2:0] -0.3 6 V LDO1P8, GP[2:0], /INT, /EN -0.3 2 V BST1 AC1 – 0.3 AC1 + 6 V BST2 AC2 – 0.3 AC2 + 6 V VOUT -0.3 13 V PGND -0.3 0.3 V 500 mA 2 A Maximum RMS Current from CMA, CMB, CM1, CM2
Maximum RMS Current from AC1, AC2
[a] All voltages are referenced to ground unless otherwise noted. © 2019 Integrated Device Technology, Inc. 10 September 27, 2019
Functional operation of the P9222-R at the absolute maximum ratings is not implied. Exposure to absolute maximum rating conditions may
affect device reliability.
Table 2. Absolute Maximum Ratings Parameter Conditions Minimum[a] Maximum[a] Units VRECT, AC1, AC2, CMA, CMB, CM1, CM2 -0.3 20 V PDETB, PDET_RC, LDO5P0, OD[2:0] -0.3 6 V LDO1P8, GP[2:0], /INT, /EN -0.3 2 V BST1 AC1 – 0.3 AC1 + 6 V BST2 AC2 – 0.3 AC2 + 6 V VOUT -0.3 13 V PGND -0.3 0.3 V 500 mA 2 A Maximum RMS Current from CMA, CMB, CM1, CM2
Maximum RMS Current from AC1, AC2
[a] All voltages are referenced to ground unless otherwise noted. © 2019 Integrated Device Technology, Inc. 10 September 27, 2019
