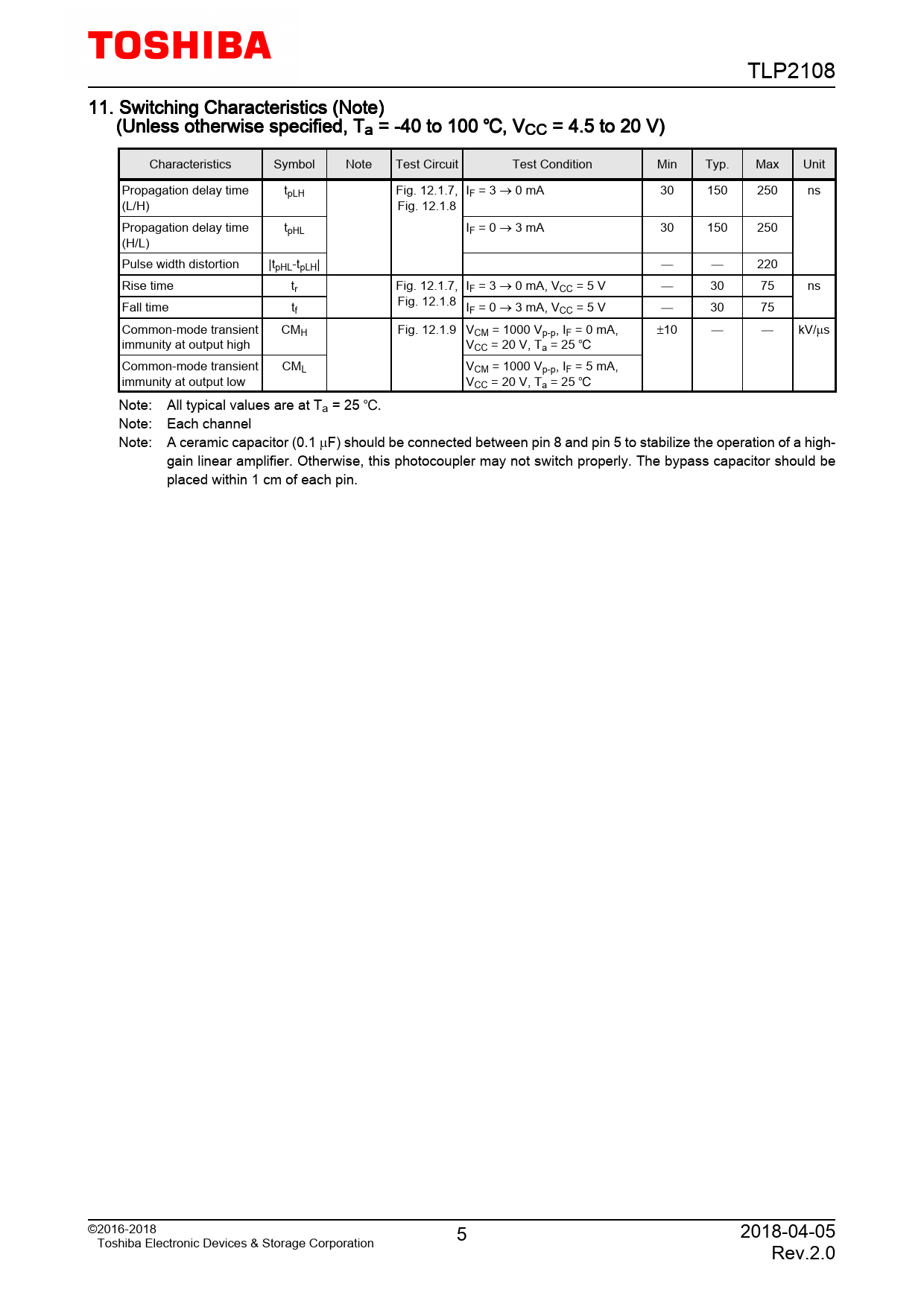

TLP2108 11. Switching Characteristics (Note) (Unless otherwise specified, Ta = -40 to 100 , VCC = 4.5 to 20 V) Characteristics Symbol Note Test Circuit Test Condition Min Typ. Max Unit Propagation delay time tpLH Fig. 12.1.7, IF = 3 → 0 mA 30 150 250 ns (L/H) Fig. 12.1.8 Propagation delay time tpHL IF = 0 → 3 mA 30 150 250 (H/L) Pulse width distortion |tpHL-tpLH|   220 Rise time tr Fig. 12.1.7, IF = 3 → 0 mA, VCC = 5 V  30 75 ns Fall time t Fig. 12.1.8 f IF = 0 → 3 mA, VCC = 5 V  30 75 Common-mode transient CMH Fig. 12.1.9 VCM = 1000 Vp-p, IF = 0 mA, ±10   kV/µs immunity at output high VCC = 20 V, Ta = 25 Common-mode transient CML VCM = 1000 Vp-p, IF = 5 mA, immunity at output low VCC = 20 V, Ta = 25 Note: All typical values are at Ta = 25 . Note: Each channel Note: A ceramic capacitor (0.1 µF) should be connected between pin 8 and pin 5 to stabilize the operation of a high- gain linear amplifier. Otherwise, this photocoupler may not switch properly. The bypass capacitor should be placed within 1 cm of each pin. ©2016-2018 5 2018-04-05 Toshiba Electronic Devices & Storage Corporation Rev.2.0
