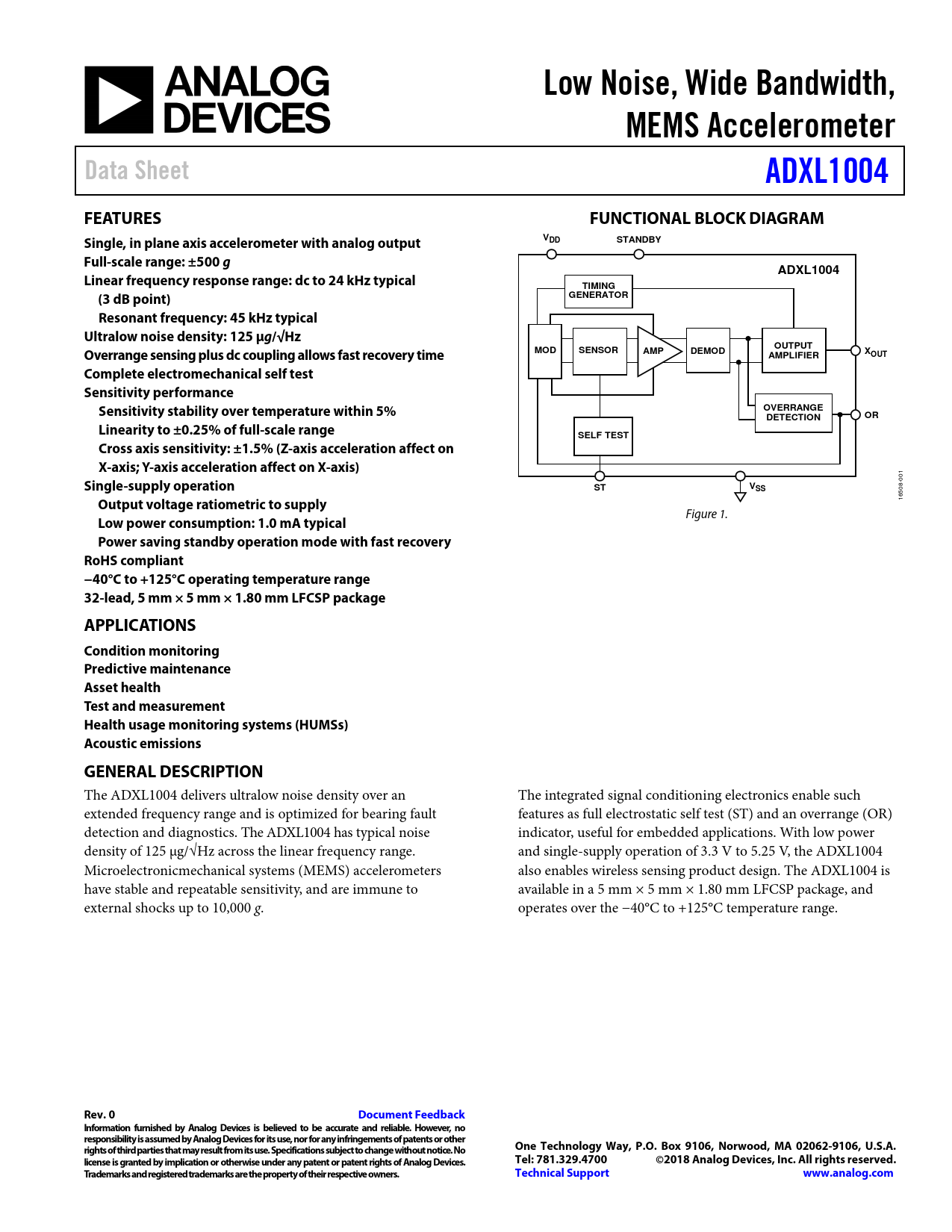

Low Noise, Wide Bandwidth, MEMS Accelerometer Data Sheet ADXL1004 FEATURES FUNCTIONAL BLOCK DIAGRAM Single, in plane axis accelerometer with analog output VDD STANDBY Full-scale range: ±500 g ADXL1004 Linear frequency response range: dc to 24 kHz typical TIMING (3 dB point) GENERATOR Resonant frequency: 45 kHz typical Ultralow noise density: 125 µg /√Hz OUTPUT Overrange sensing plus dc coupling allows fast recovery time MOD SENSOR AMP DEMOD XOUT AMPLIFIER Complete electromechanical self test Sensitivity performance Sensitivity stability over temperature within 5% OVERRANGE DETECTION OR Linearity to ±0.25% of full-scale range SELF TEST Cross axis sensitivity: ±1.5% (Z-axis acceleration affect on X-axis; Y-axis acceleration affect on X-axis) Single-supply operation
001
ST VSS Output voltage ratiometric to supply
16508- Figure 1.
Low power consumption: 1.0 mA typical Power saving standby operation mode with fast recovery RoHS compliant −40°C to +125°C operating temperature range 32-lead, 5 mm × 5 mm × 1.80 mm LFCSP package APPLICATIONS Condition monitoring Predictive maintenance Asset health Test and measurement Health usage monitoring systems (HUMSs) Acoustic emissions GENERAL DESCRIPTION
The ADXL1004 delivers ultralow noise density over an The integrated signal conditioning electronics enable such extended frequency range and is optimized for bearing fault features as full electrostatic self test (ST) and an overrange (OR) detection and diagnostics. The ADXL1004 has typical noise indicator, useful for embedded applications. With low power density of 125 µg/√Hz across the linear frequency range. and single-supply operation of 3.3 V to 5.25 V, the ADXL1004 Microelectronicmechanical systems (MEMS) accelerometers also enables wireless sensing product design. The ADXL1004 is have stable and repeatable sensitivity, and are immune to available in a 5 mm × 5 mm × 1.80 mm LFCSP package, and external shocks up to 10,000 g. operates over the −40°C to +125°C temperature range.
Rev. 0 Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2018 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings Thermal Resistance Recommended Soldering Profile ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Mechanical Device Operation Operating Modes Measurement Mode Standby Mode Bandwidth Applications Information Application Circuit On Demand Self Test Ratiometric Output Voltage Interfacing Analog Output Below 10 kHz Interfacing Analog Output Beyond 10 kHz Overrange Mechanical Considerations for Mounting Layout and Design Recommendations Outline Dimensions Ordering Guide Untitled
