Datasheet ADL5306 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | 60 dB-RANGE (100 nA-100 µA) Low-Cost Logarithmic Converter |
| Páginas / Página | 16 / 4 — Table 2. ADL5306 Absolute Maximum Ratings. Parameter Rating |
| Formato / tamaño de archivo | PDF / 2.2 Mb |
| Idioma del documento | Inglés |
Table 2. ADL5306 Absolute Maximum Ratings. Parameter Rating
Línea de modelo para esta hoja de datos
Versión de texto del documento

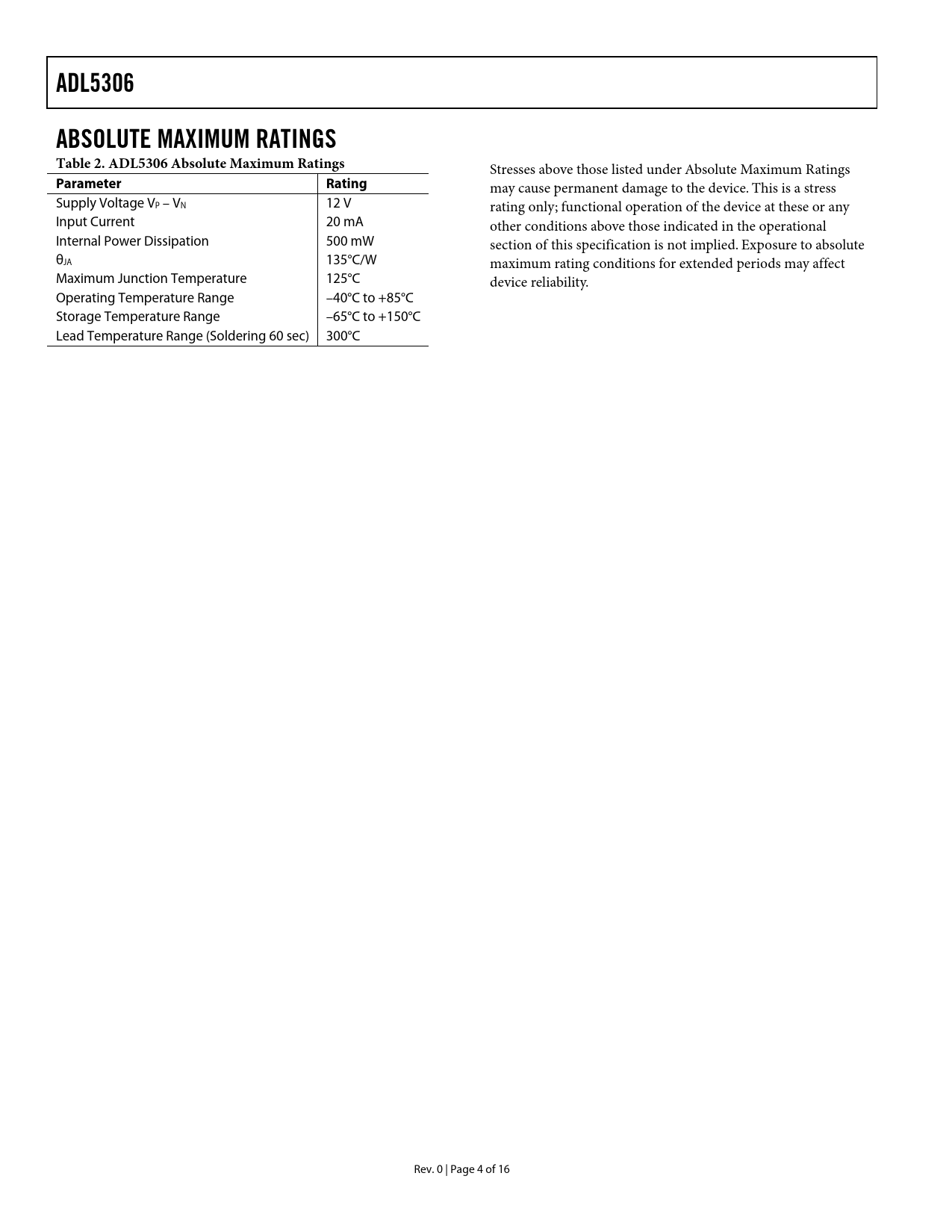

ADL5306 ABSOLUTE MAXIMUM RATINGS
Table 2. ADL5306 Absolute Maximum Ratings
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Supply Voltage V P – VN 12 V rating only; functional operation of the device at these or any Input Current 20 mA other conditions above those indicated in the operational Internal Power Dissipation 500 mW section of this specification is not implied. Exposure to absolute θJA 135°C/W maximum rating conditions for extended periods may affect Maximum Junction Temperature 125°C device reliability. Operating Temperature Range –40°C to +85°C Storage Temperature Range –65°C to +150°C Lead Temperature Range (Soldering 60 sec) 300°C Rev. 0 | Page 4 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION AND PIN FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS GENERAL STRUCTURE THEORY MANAGING INTERCEPT AND SLOPE RESPONSE TIME AND NOISE CONSIDERATIONS APPLICATIONS USING A NEGATIVE SUPPLY CHARACTERIZATION METHODS EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
