Datasheet ADL5310 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | 120 dB RANGE (3 nA TO 3 mA) Dual Logarithmic Converter |
| Páginas / Página | 20 / 4 — ADL5310. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. … |
| Revisión | B |
| Formato / tamaño de archivo | PDF / 577 Kb |
| Idioma del documento | Inglés |
ADL5310. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento

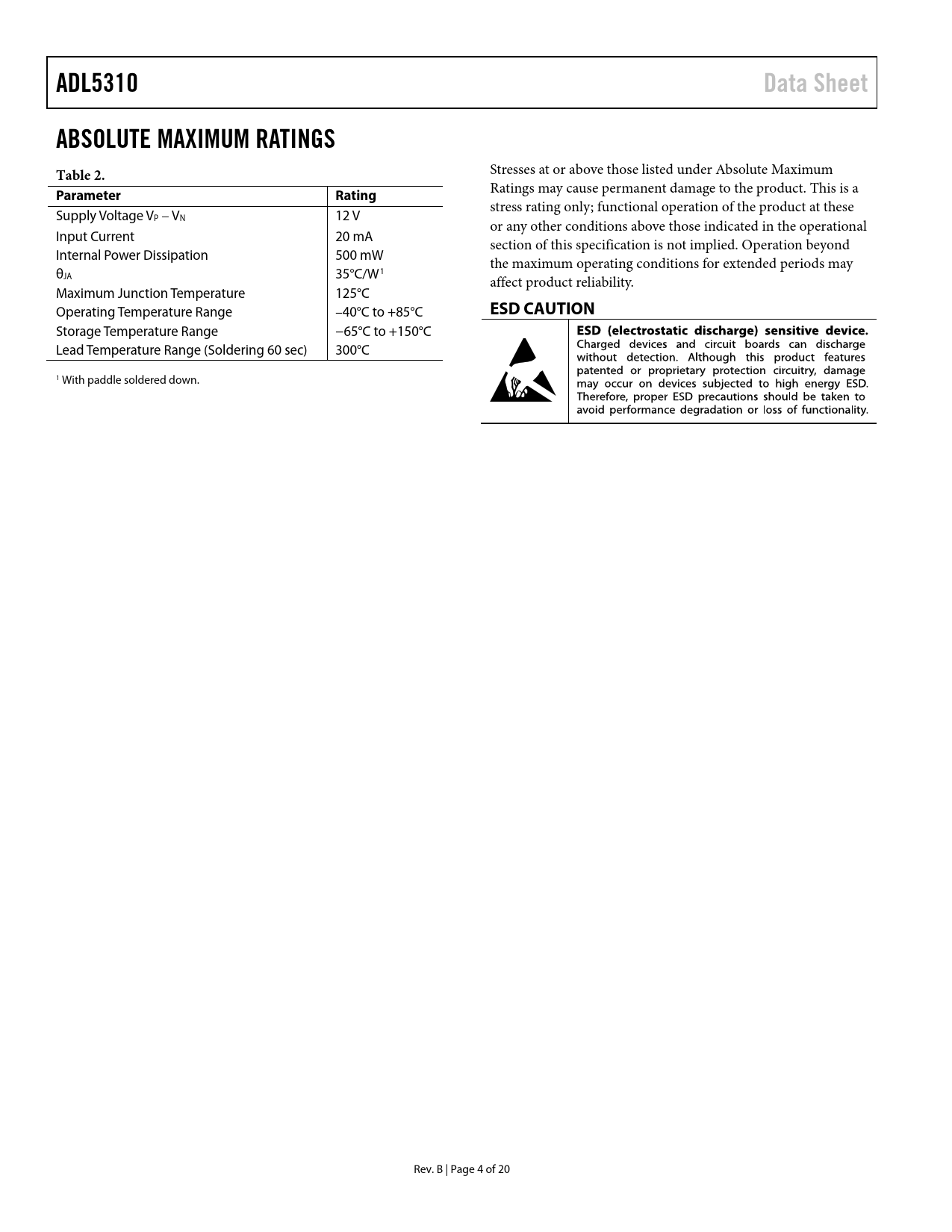

ADL5310 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Supply Voltage VP − VN 12 V or any other conditions above those indicated in the operational Input Current 20 mA section of this specification is not implied. Operation beyond Internal Power Dissipation 500 mW the maximum operating conditions for extended periods may θJA 35°C/W1 affect product reliability. Maximum Junction Temperature 125°C Operating Temperature Range –40°C to +85°C
ESD CAUTION
Storage Temperature Range −65°C to +150°C Lead Temperature Range (Soldering 60 sec) 300°C 1 With paddle soldered down. Rev. B | Page 4 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS GENERAL STRUCTURE THEORY MANAGING INTERCEPT AND SLOPE RESPONSE TIME AND NOISE CONSIDERATIONS APPLICATIONS INFORMATION CALIBRATION MINIMIZING CROSSTALK RELATIVE AND ABSOLUTE POWER MEASUREMENTS CHARACTERIZATION METHODS EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
