Datasheet ADL5315 (Analog Devices) - 8
| Fabricante | Analog Devices |
| Descripción | Precision Wide-range (3 nA - 3 mA) High-Side Current Mirror |
| Páginas / Página | 17 / 8 — ADL5315. Data Sheet. 1.010. N = 2027 MEAN = –1.00696 SD = 0.00389073. … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 472 Kb |
| Idioma del documento | Inglés |
ADL5315. Data Sheet. 1.010. N = 2027 MEAN = –1.00696 SD = 0.00389073. 1.005. +85. (V). +25. INPT. V 1.000. (%). –40. POSV. 0.995. 0.990. –0.97. –0.98
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADL5315 Data Sheet 1.010 35 N = 2027 MEAN = –1.00696 SD = 0.00389073 30 1.005 25 +85 (V) +25 20 INPT V 1.000 – (%) –40 15 POSV 10 0.995 5 0.990 0 2 3 4 5 6 7 8 –0.97 –0.98 –0.99 –1.00 –1.01 –1.02 –1.03 VPOS (V) V
05694-004
SREF – VPOS (V)

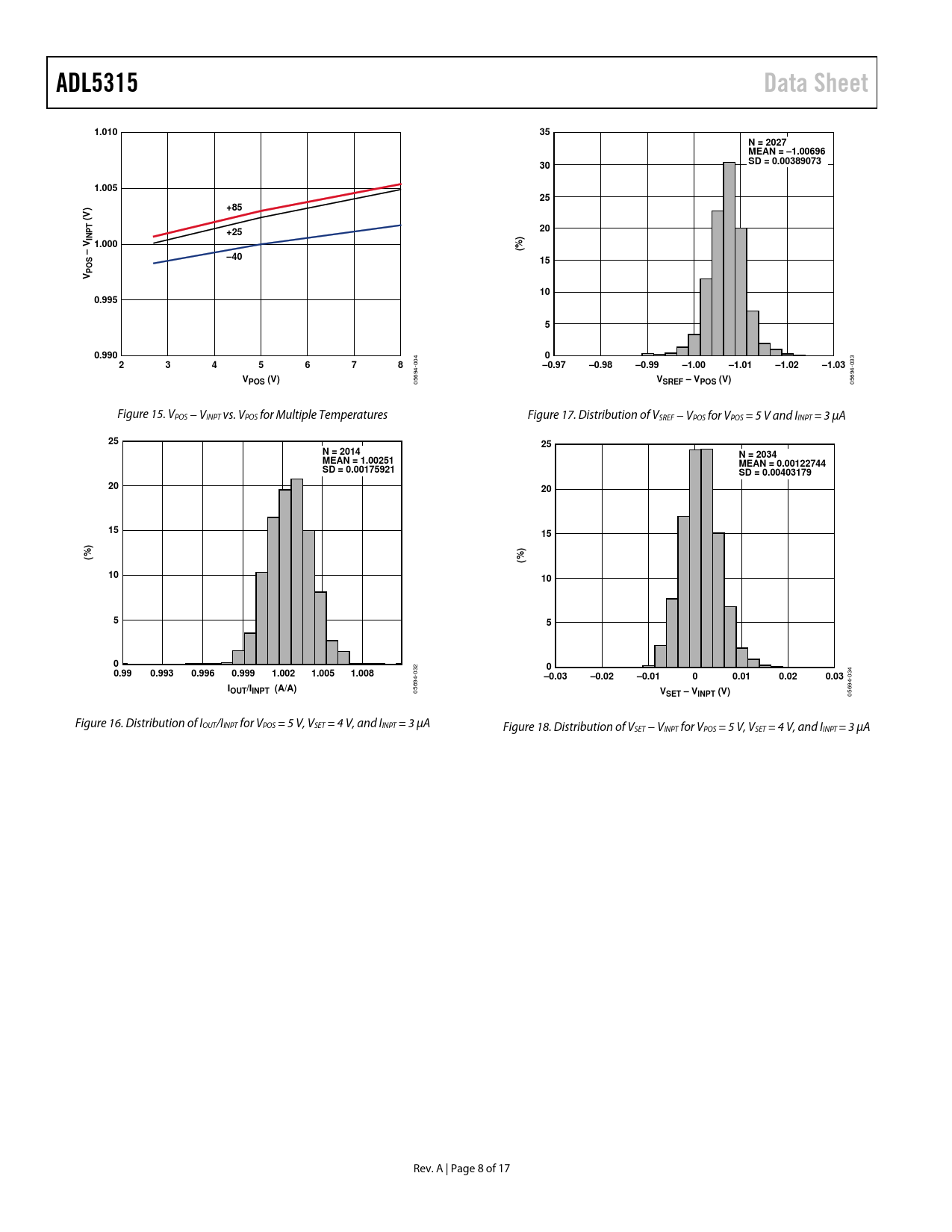

05694-033 Figure 15. VPOS − VINPT vs. VPOS for Multiple Temperatures Figure 17. Distribution of VSREF − VPOS for VPOS = 5 V and IINPT = 3 µA
