Photocoupler. LTV-8x6 series. 3.7 LTV-826S-TA. 3.8 LTV-826S-TA1. Description. Symbol. Dimension in mm (inch). 3.9 Quantities Per Reel
Línea de modelo para esta hoja de datos
Versión de texto del documento

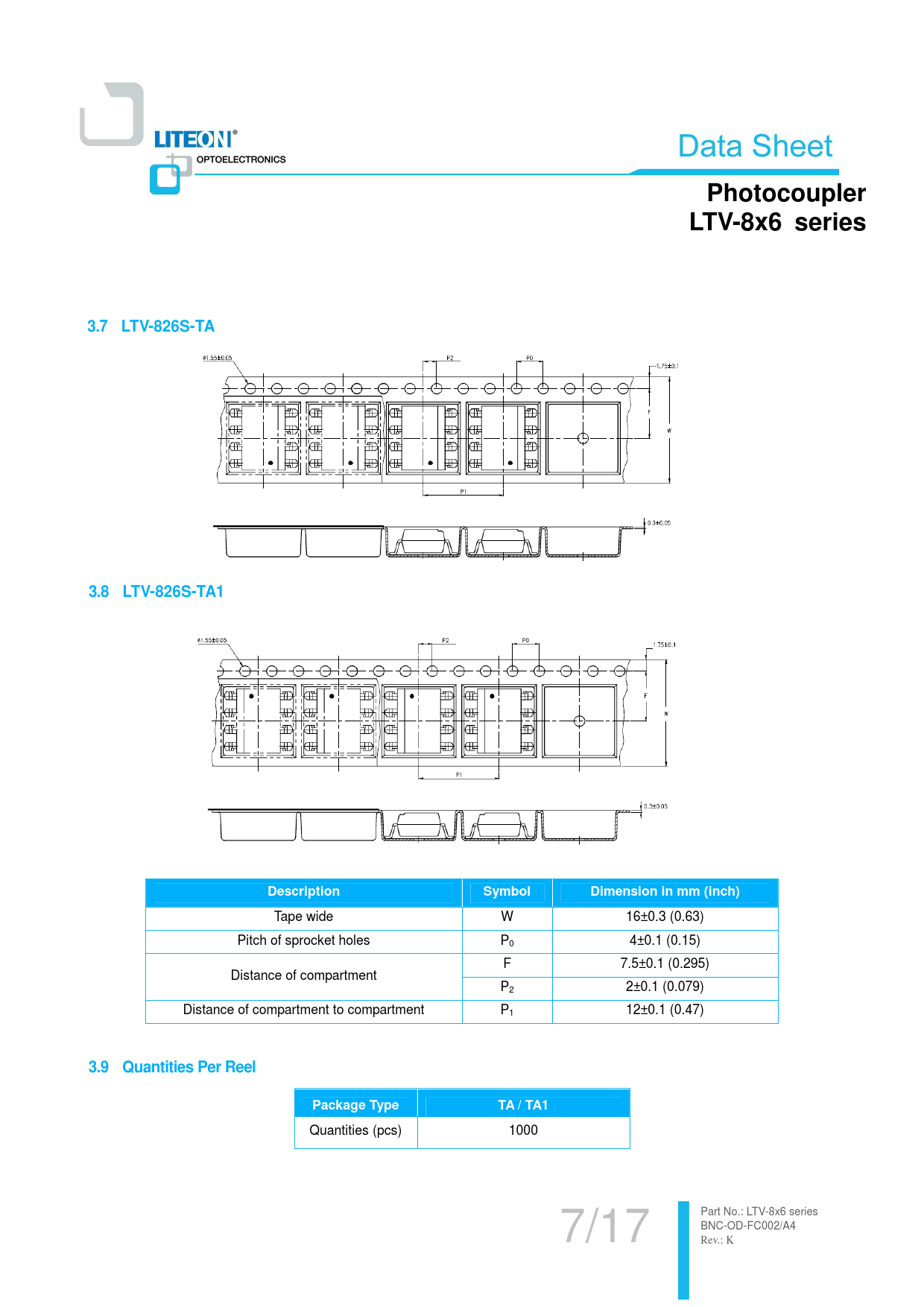

Photocoupler LTV-8x6 series 3.7 LTV-826S-TA 3.8 LTV-826S-TA1 Description Symbol Dimension in mm (inch)
Tape wide W 16±0.3 (0.63) Pitch of sprocket holes P0 4±0.1 (0.15) F 7.5±0.1 (0.295) Distance of compartment P2 2±0.1 (0.079) Distance of compartment to compartment P1 12±0.1 (0.47)
3.9 Quantities Per Reel Package Type TA / TA1
Quantities (pcs) 1000 7/17 Part No.: LTV -8x6 serie s BNC-OD-FC002/A4 Rev.: K
Tape wide W 16±0.3 (0.63) Pitch of sprocket holes P0 4±0.1 (0.15) F 7.5±0.1 (0.295) Distance of compartment P2 2±0.1 (0.079) Distance of compartment to compartment P1 12±0.1 (0.47)
3.9 Quantities Per Reel Package Type TA / TA1
Quantities (pcs) 1000 7/17 Part No.: LTV -8x6 serie s BNC-OD-FC002/A4 Rev.: K
