NXP Semiconductors. ICM7555. General purpose CMOS timer. Fig 8. Minimum pulse width for triggering. Fig 9
Línea de modelo para esta hoja de datos
ICM7555
Versión de texto del documento
NXP Semiconductors ICM7555 General purpose CMOS timer

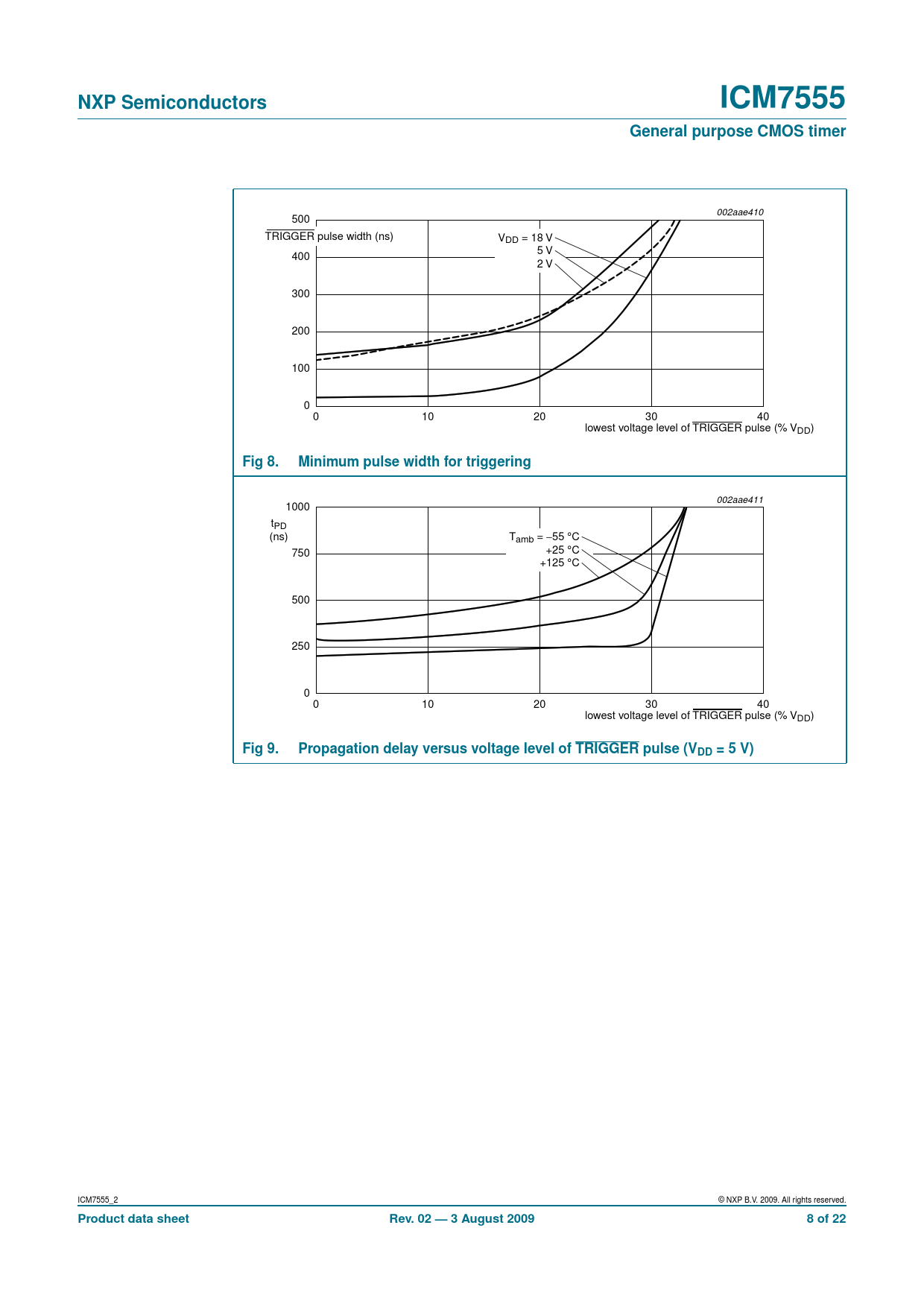

002aae410 500 TRIGGER pulse width (ns) VDD = 18 V 5 V 400 2 V 300 200 100 0 0 10 20 30 40 lowest voltage level of TRIGGER pulse (% VDD)
Fig 8. Minimum pulse width for triggering
002aae411 1000 tPD (ns) Tamb = −55 °C 750 +25 °C +125 °C 500 250 0 0 10 20 30 40 lowest voltage level of TRIGGER pulse (% VDD)
Fig 9. Propagation delay versus voltage level of TRIGGER pulse (VDD = 5 V)
ICM7555_2 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 3 August 2009 8 of 22
