Datasheet ADP5073 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | 1.2 A, DC-to-DC Inverting Regulator |
| Páginas / Página | 17 / 5 — Data Sheet. ADP5073. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 514 Kb |
| Idioma del documento | Inglés |

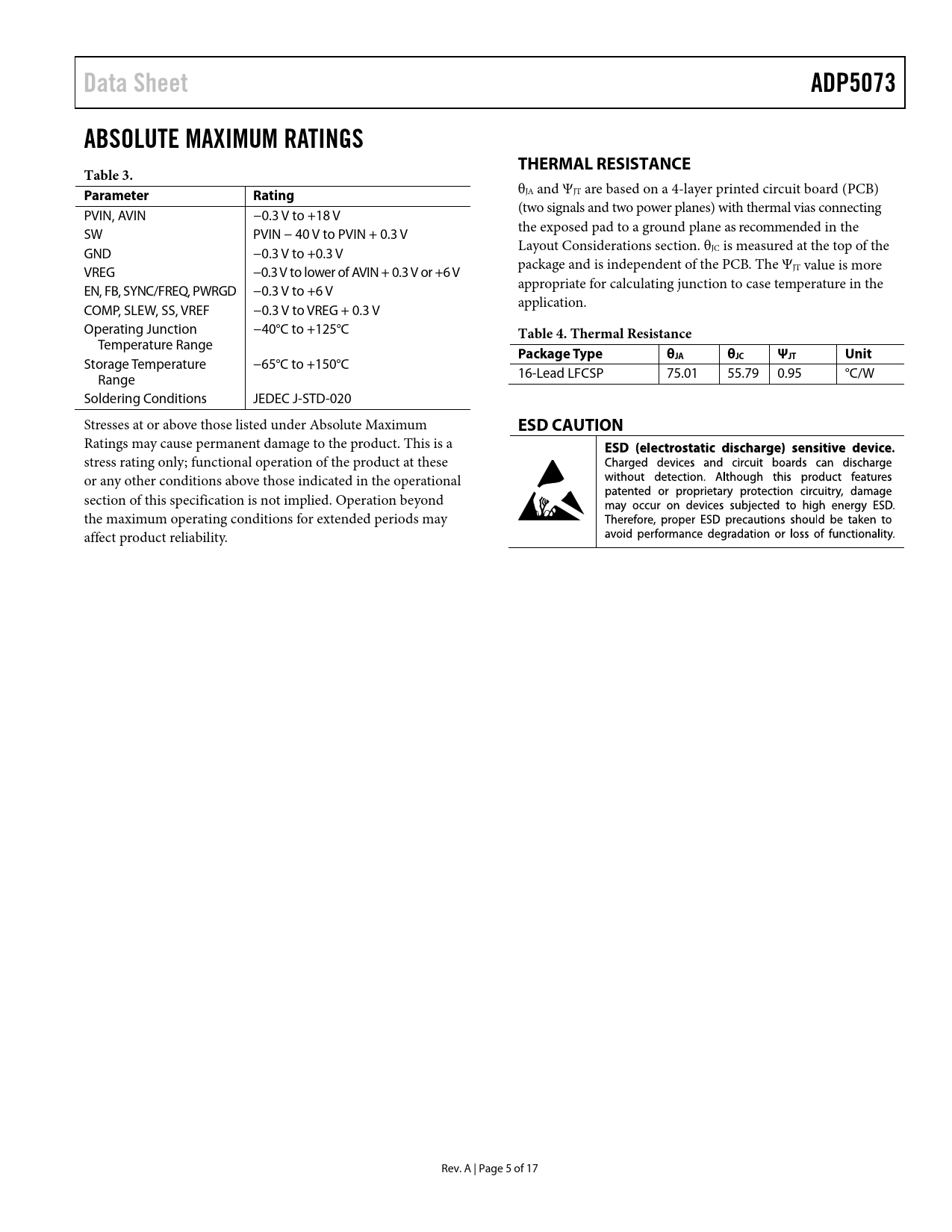

Data Sheet. ADP5073. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 3. Parameter. Rating. Table 4. Thermal Resistance
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 16
Data Sheet ADP5073 ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 3. Parameter Rating
θJA and ΨJT are based on a 4-layer printed circuit board (PCB) PVIN, AVIN −0.3 V to +18 V (two signals and two power planes) with thermal vias connecting SW PVIN − 40 V to PVIN + 0.3 V the exposed pad to a ground plane as recommended in the GND −0.3 V to +0.3 V Layout Considerations section. θJC is measured at the top of the VREG −0.3 V to lower of AVIN + 0.3 V or +6 V package and is independent of the PCB. The ΨJT value is more EN, FB, SYNC/FREQ, PWRGD −0.3 V to +6 V appropriate for calculating junction to case temperature in the COMP, SLEW, SS, VREF −0.3 V to VREG + 0.3 V application. Operating Junction −40°C to +125°C
Table 4. Thermal Resistance
Temperature Range
Package Type θ
Storage Temperature −65°C to +150°C
JA θJC ΨJT Unit
Range 16-Lead LFCSP 75.01 55.79 0.95 °C/W Soldering Conditions JEDEC J-STD-020 Stresses at or above those listed under Absolute Maximum
