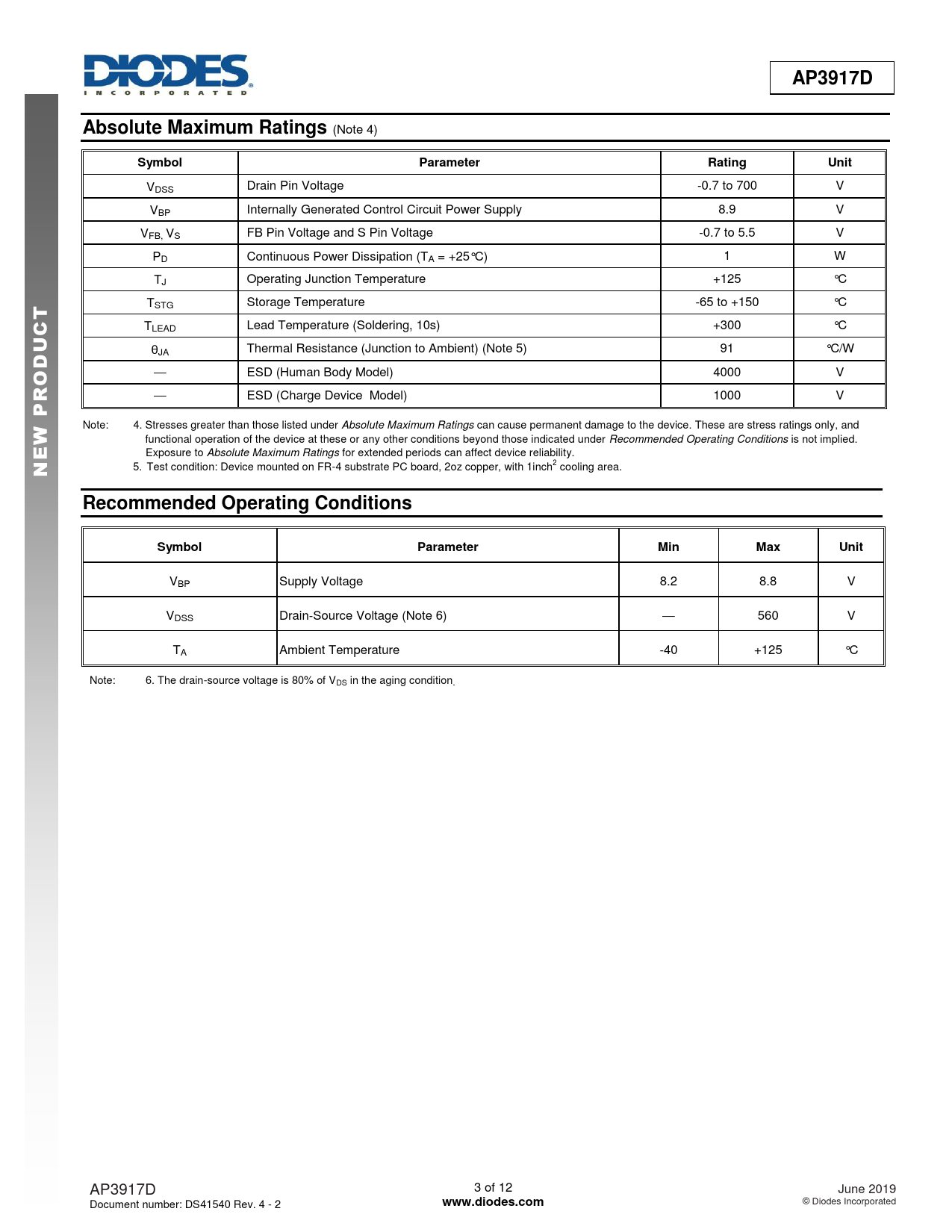

AP3917D Absolute Maximum Ratings
(Note 4)
Symbol Parameter Rating Unit
VDSS Drain Pin Voltage -0.7 to 700 V VBP Internally Generated Control Circuit Power Supply 8.9 V VFB, VS FB Pin Voltage and S Pin Voltage -0.7 to 5.5 V PD Continuous Power Dissipation (TA = +25°C) 1 W TJ Operating Junction Temperature +125 °C
T
TSTG Storage Temperature -65 to +150 °C
C
TLEAD Lead Temperature (Soldering, 10s) +300 °C
U D
θJA Thermal Resistance (Junction to Ambient) (Note 5) 91 °C/W
O
— ESD (Human Body Model) 4000 V
R
— ESD (Charge Device Model) 1000 V
P W
Note: 4. Stresses greater than those listed under Absolute Maximum Ratings can cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied.
E
Exposure to Absolute Maximum Ratings for extended periods can affect device reliability.
N
5. Test condition: Device mounted on FR-4 substrate PC board, 2oz copper, with 1inch2 cooling area.
Recommended Operating Conditions Symbol Parameter Min Max Unit
VBP Supply Voltage 8.2 8.8 V VDSS Drain-Source Voltage (Note 6) — 560 V TA Ambient Temperature -40 +125 °C Note: 6. The drain-source voltage is 80% of VDS in the aging condition. AP3917D 3 of 12 June 2019 Document number: DS41540 Rev. 4 - 2
