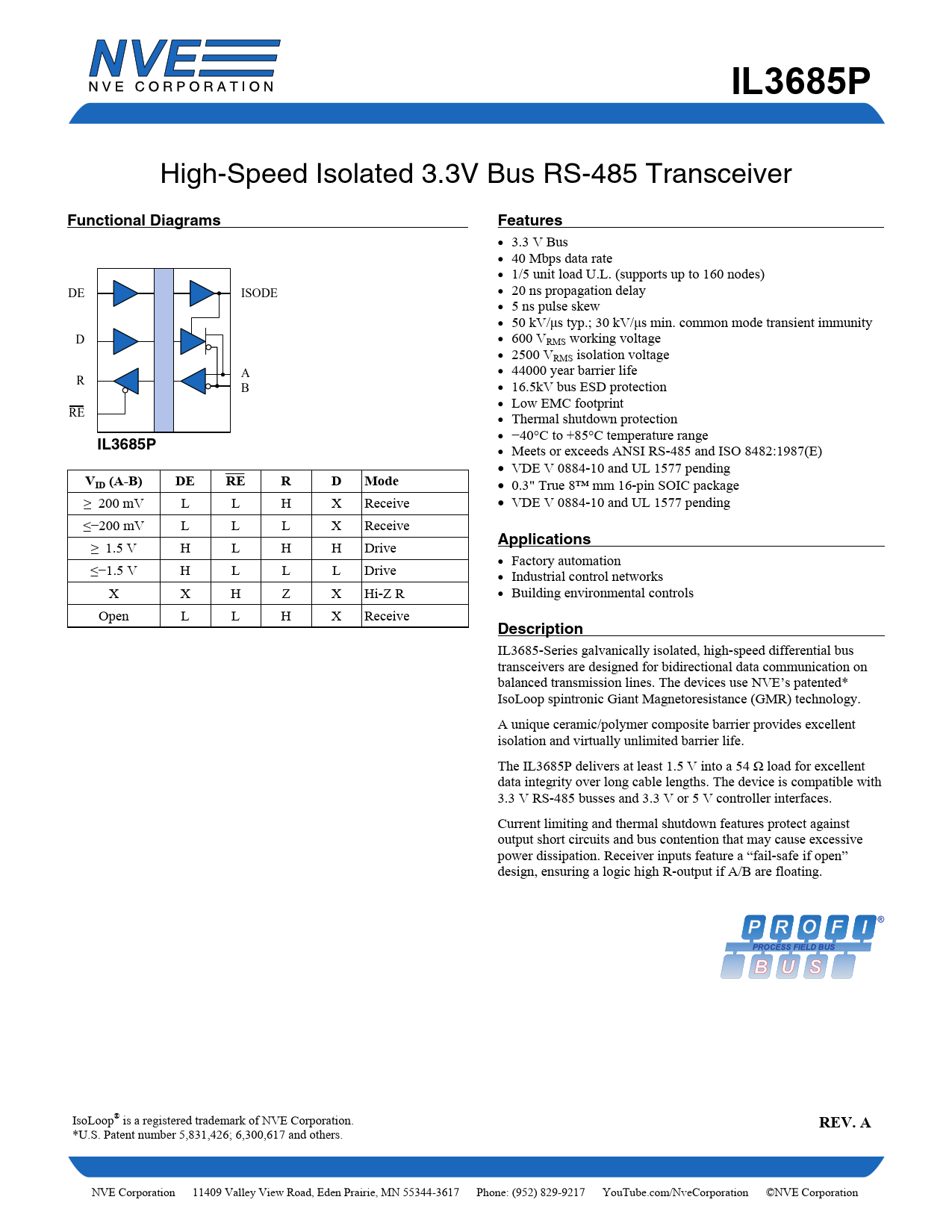

IL3685P
High-Speed Isolated 3.3V Bus RS-485 Transceiver
Functional Diagrams Features
• 3.3 V Bus • 40 Mbps data rate • 1/5 unit load U.L. (supports up to 160 nodes) DE ISODE • 20 ns propagation delay • 5 ns pulse skew • 50 kV/μs typ.; 30 kV/μs min. common mode transient immunity D • 600 VRMS working voltage • 2500 VRMS isolation voltage A • 44000 year barrier life R B • 16.5kV bus ESD protection • Low EMC footprint RE • Thermal shutdown protection • −40°C to +85°C temperature range
IL3685P
• Meets or exceeds ANSI RS-485 and ISO 8482:1987(E) • VDE V 0884-10 and UL 1577 pending
VID (A-B) DE RE R D Mode
• 0.3" True 8™ mm 16-pin SOIC package ≥ 200 mV L L H X Receive • VDE V 0884-10 and UL 1577 pending ≤−200 mV L L L X Receive
Applications
≥ 1.5 V H L H H Drive • Factory automation ≤−1.5 V H L L L Drive • Industrial control networks X X H Z X Hi-Z R • Building environmental controls Open L L H X Receive
Description
IL3685-Series galvanically isolated, high-speed differential bus transceivers are designed for bidirectional data communication on balanced transmission lines. The devices use NVE’s patented* IsoLoop spintronic Giant Magnetoresistance (GMR) technology. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. The IL3685P delivers at least 1.5 V into a 54 Ω load for excellent data integrity over long cable lengths. The device is compatible with 3.3 V RS-485 busses and 3.3 V or 5 V controller interfaces. Current limiting and thermal shutdown features protect against output short circuits and bus contention that may cause excessive power dissipation. Receiver inputs feature a “fail-safe if open” design, ensuring a logic high R-output if A/B are floating. IsoLoop® is a registered trademark of NVE Corporation.
REV. A
*U.S. Patent number 5,831,426; 6,300,617 and others. NVE Corporation 11409 Valley View Road, Eden Prairie, MN 55344-3617 Phone: (952) 829-9217 YouTube.com/NveCorporation ©NVE Corporation
