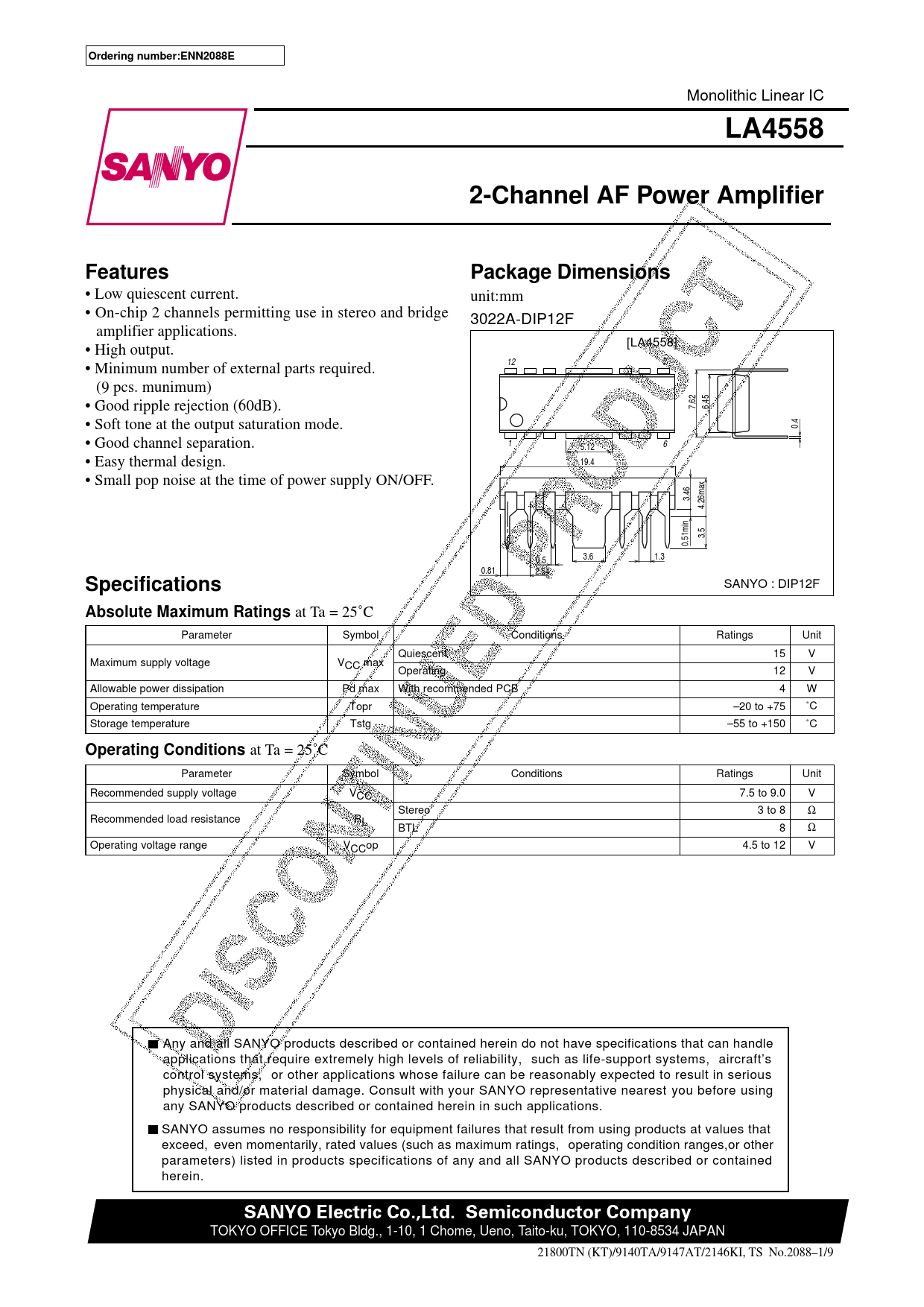

Ordering number:ENN2088E. LA4558. 2-Channel AF Power Amplifier. Features. Package Dimensions. Specifications
Línea de modelo para esta hoja de datos
Versión de texto del documento
Ordering number:ENN2088E
Monolithic Linear IC
LA4558 2-Channel AF Power Amplifier Features Package Dimensions
• Low quiescent current. unit:mm • On-chip 2 channels permitting use in stereo and bridge 3022A-DIP12F amplifier applications. [LA4558] • High output. 12 • Minimum number of external parts required. 7 (9 pcs. munimum) • Good ripple rejection (60dB). 7.62 6.45 • Soft tone at the output saturation mode. 0.4 • Good channel separation. 1 6 5.12 • Easy thermal design. 19.4 • Small pop noise at the time of power supply ON/OFF. 3.46 4.26max 3.5 0.51min 3.6 1.3 0.5 0.81 2.54 SANYO : DIP12F
Specifications Absolute Maximum Ratings
at Ta = 25˚C a r a P e m e t r o b m y S l o C i d n n o i t s g n i t a R s i n U t u Q e i e c s t n 5 1 V a M m i x m u u s l p p y e g a t l o v V C C x a m p O t a r e i g n 2 1 V b a w o ll A e l p r e w o s s i d p i o i t a n d P a m x i W h t e r m o c e m e d n d C P B 4 W p O r e t a g n i p m e t a r e u t e r T p o r 2 – 0 to + 5 7 ˚C r o t S e g a m e t e p a r e r u t s T tg 5 5 – to + 0 5 1 ˚C
