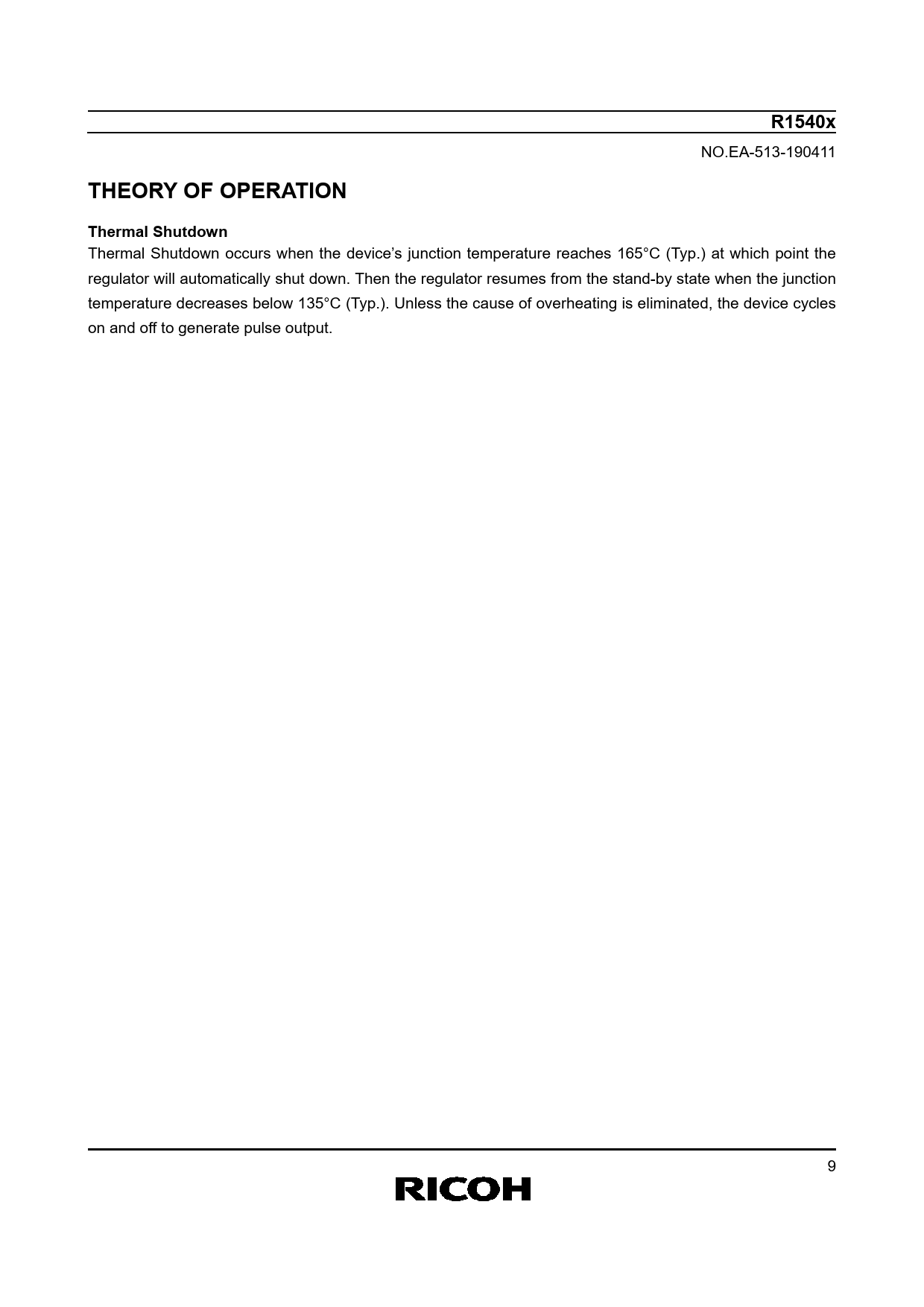

R1540x. THEORY OF OPERATION Thermal Shutdown
Línea de modelo para esta hoja de datos
Versión de texto del documento
R1540x
NO.EA-513-190411
THEORY OF OPERATION Thermal Shutdown
Thermal Shutdown occurs when the device’s junction temperature reaches 165°C (Typ.) at which point the regulator will automatically shut down. Then the regulator resumes from the stand-by state when the junction temperature decreases below 135°C (Typ.). Unless the cause of overheating is eliminated, the device cycles on and off to generate pulse output. 9
NO.EA-513-190411
THEORY OF OPERATION Thermal Shutdown
Thermal Shutdown occurs when the device’s junction temperature reaches 165°C (Typ.) at which point the regulator will automatically shut down. Then the regulator resumes from the stand-by state when the junction temperature decreases below 135°C (Typ.). Unless the cause of overheating is eliminated, the device cycles on and off to generate pulse output. 9
