Datasheet for Industrial R1540x-Y (Ricoh) - 9
| Fabricante | Ricoh |
| Descripción | High Noise Immunity 42 V Input Voltage 70 mA Voltage Tracker for Industrial Applications |
| Páginas / Página | 24 / 9 — R1540x-Y. THEORY OF OPERATION Thermal Shutdown |
| Formato / tamaño de archivo | PDF / 1.3 Mb |
| Idioma del documento | Inglés |

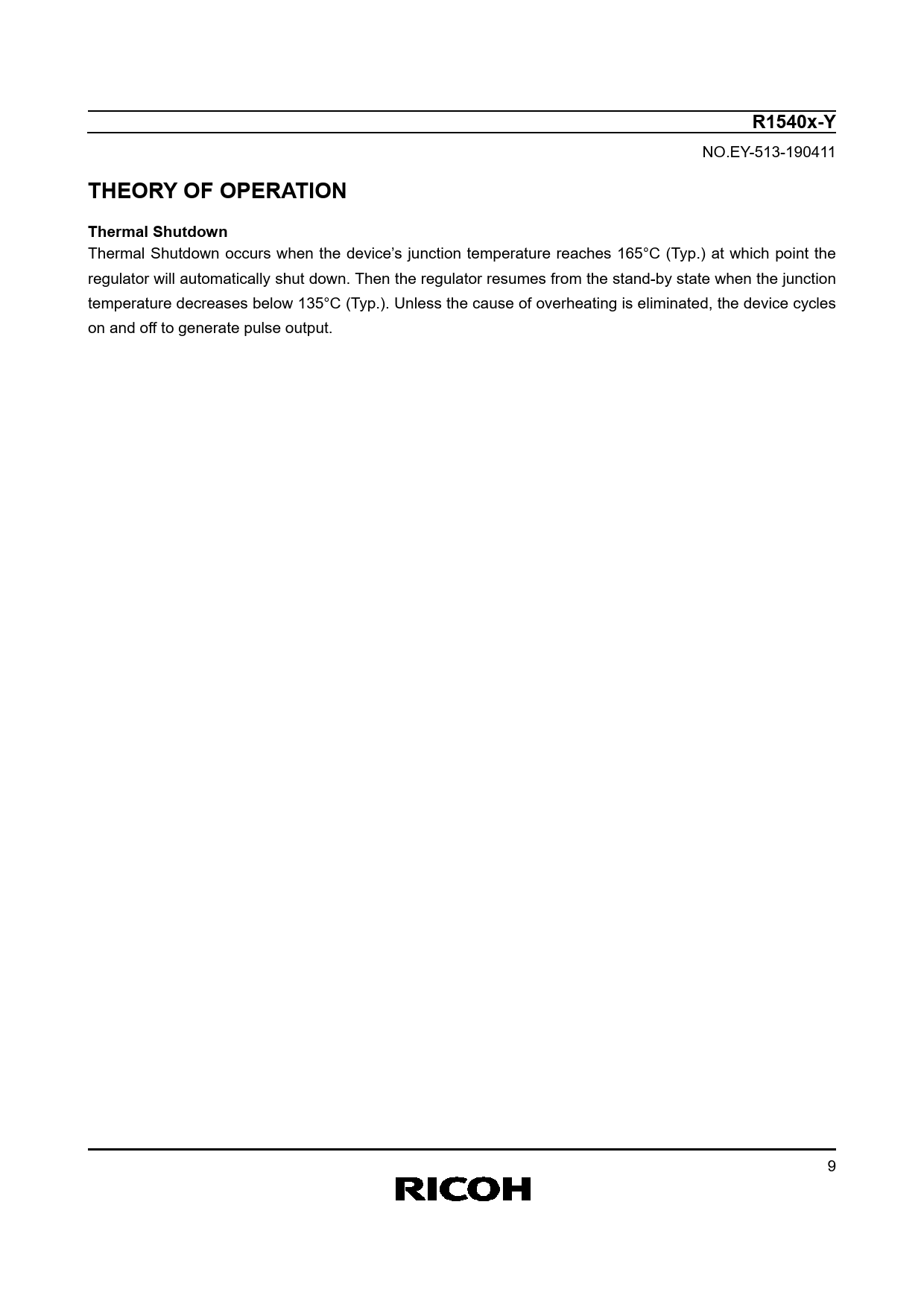

R1540x-Y. THEORY OF OPERATION Thermal Shutdown
Línea de modelo para esta hoja de datos
Versión de texto del documento
R1540x-Y
NO.EY-513-190411
THEORY OF OPERATION Thermal Shutdown
Thermal Shutdown occurs when the device’s junction temperature reaches 165°C (Typ.) at which point the regulator will automatically shut down. Then the regulator resumes from the stand-by state when the junction temperature decreases below 135°C (Typ.). Unless the cause of overheating is eliminated, the device cycles on and off to generate pulse output. 9
NO.EY-513-190411
THEORY OF OPERATION Thermal Shutdown
Thermal Shutdown occurs when the device’s junction temperature reaches 165°C (Typ.) at which point the regulator will automatically shut down. Then the regulator resumes from the stand-by state when the junction temperature decreases below 135°C (Typ.). Unless the cause of overheating is eliminated, the device cycles on and off to generate pulse output. 9
