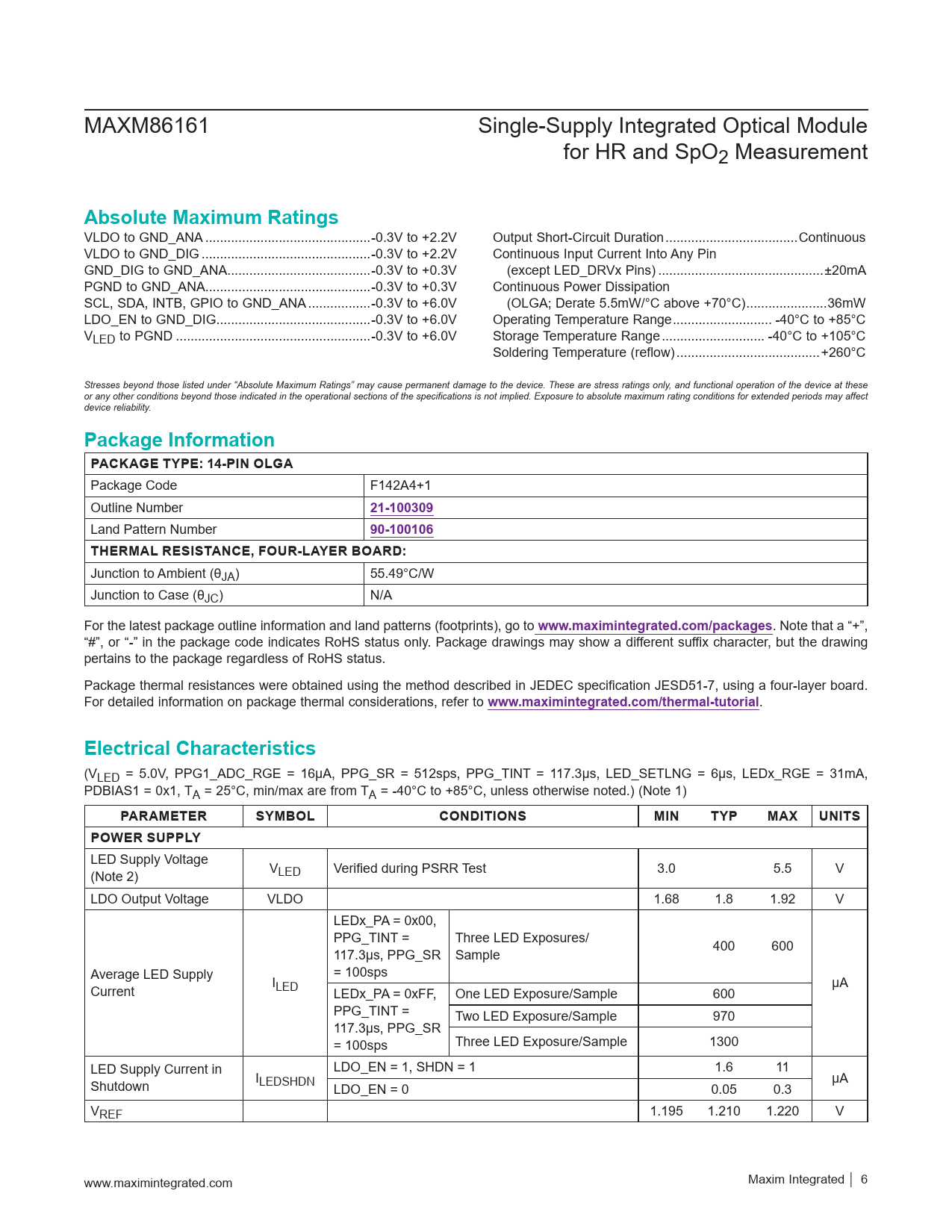

MAXM86161 Single-Supply Integrated Optical Module for HR and SpO2 Measurement
Absolute Maximum Ratings
VLDO to GND_ANA ...-0.3V to +2.2V Output Short-Circuit Duration ..Continuous VLDO to GND_DIG ..-0.3V to +2.2V Continuous Input Current Into Any Pin GND_DIG to GND_ANA ...-0.3V to +0.3V (except LED_DRVx Pins) ...±20mA PGND to GND_ANA ...-0.3V to +0.3V Continuous Power Dissipation SCL, SDA, INTB, GPIO to GND_ANA ...-0.3V to +6.0V (OLGA; Derate 5.5mW/°C above +70°C) ..36mW LDO_EN to GND_DIG..-0.3V to +6.0V Operating Temperature Range ... -40°C to +85°C VLED to PGND ...-0.3V to +6.0V Storage Temperature Range .. -40°C to +105°C Soldering Temperature (reflow) ...+260°C Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Package Information PACKAGE TYPE: 14-PIN OLGA
Package Code F142A4+1 Outline Number
21-100309
Land Pattern Number
90-100106 THERMAL RESISTANCE, FOUR-LAYER BOARD:
Junction to Ambient (θJA) 55.49°C/W Junction to Case (θJC) N/A For the latest package outline information and land patterns (footprints), go to
www.maximintegrated.com/packages
. Note that a “+”, “#”, or “-” in the package code indicates RoHS status only. Package drawings may show a different suffix character, but the drawing pertains to the package regardless of RoHS status. Package thermal resistances were obtained using the method described in JEDEC specification JESD51-7, using a four-layer board. For detailed information on package thermal considerations, refer to
www.maximintegrated.com/thermal-tutorial
.
Electrical Characteristics
(VLED = 5.0V, PPG1_ADC_RGE = 16μA, PPG_SR = 512sps, PPG_TINT = 117.3μs, LED_SETLNG = 6μs, LEDx_RGE = 31mA, PDBIAS1 = 0x1, TA = 25°C, min/max are from TA = -40°C to +85°C, unless otherwise noted.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS POWER SUPPLY
LED Supply Voltage (Note 2) VLED Verified during PSRR Test 3.0 5.5 V LDO Output Voltage VLDO 1.68 1.8 1.92 V LEDx_PA = 0x00, PPG_TINT = Three LED Exposures/ 117.3µs, PPG_SR Sample 400 600 Average LED Supply = 100sps Current ILED μA LEDx_PA = 0xFF, One LED Exposure/Sample 600 PPG_TINT = Two LED Exposure/Sample 970 117.3µs, PPG_SR = 100sps Three LED Exposure/Sample 1300 LED Supply Current in LDO_EN = 1, SHDN = 1 1.6 11 Shutdown ILEDSHDN μA LDO_EN = 0 0.05 0.3 VREF 1.195 1.210 1.220 V www.maximintegrated.com Maxim Integrated │ 6 Document Outline General Description Applications Benefits and Features Simplified Block Diagram Absolute Maximum Ratings Package Information Electrical Characteristics Typical Operating Characteristics Pin Configuration Pin Description Detailed Description Optical Subsystem LED Driver FIFO Configuration LED Sequence Control (0x20 to 0x22) Pseudo-Code Example of Initialize the Optical AFE Pseudo-Code for Interrupt Handling with FIFO_A_FULL Pseudo-Code Example of Reading Data from FIFO Optical Timing One LED Pulsing with No Direct Ambient Sampling One LED Pulsing with Direct Ambient Sampling Two LEDs Pulsing Sequentially with Direct Ambient Sampling All LEDs Pulsing Sequentially with Direct Ambient Sampling ADC Architecture and Transfer Function Non-Linearity (XNL) Trim Proximity Mode Function Picket Fence Detect-and-Replace Function Layout Guidelines I2C/SMBus Compatible Serial Interface Detailed I2C Timing Diagram Bit Transfer START and STOP Conditions Early STOP Conditions Slave Address Acknowledge Bit I2C Write Data Format I2C Read Data Format Register Map Register Details INTERRUPT STATUS 1 (0x00) INTERRUPT STATUS 2 (0X01) INTERRUPT ENABLE 1 (0X02) INTERRUPT ENABLE 2 (0X03) FIFO WRITE POINTER (0X04) FIFO READ POINTER (0X05) OVER FLOW COUNTER (0X06) FIFO DATA COUNTER (0X07) FIFO DATA REGISTER (0X08) FIFO CONFIGURATION 1 (0X09) FIFO CONFIGURATION 2 (0X0A) SYSTEM CONTROL (0X0D) PPG SYNC CONTROL (0X10) PPG CONFIGURATION 1 (0X11) PPG CONFIGURATION 2 (0X12) PPG CONFIGURATION 3 (0X13) PROX INTERRUPT THRESHOLD (0X14) PHOTO DIODE BIAS (0X15) PICKET FENCE (0X16) LED SEQUENCE REGISTER 1 (0X20) LED SEQUENCE REGISTER 2 (0X21) LED SEQUENCE REGISTER 3 (0X22) LED1 PA (0x23) LED2 PA (0x24) LED3_PA (0x25) LED PILOT PA (0x29) LED RANGE 1 (0X2A) S1 HI RES DAC1 (0x2C) S2 HI RES DAC1 (0x2D) S3 HI RES DAC1 (0x2E) S4 HI RES DAC1 (0x2F) S5 HI RES DAC1 (0x30) S6 HI RES DAC1 (0x31) DIE TEMPERATURE CONFIGURATION (0X40) DIE TEMPERATURE INTEGER (0X41) DIE TEMPERATURE FRACTION (0X42) DAC CALIBRATION ENABLE (0X50) SHA COMMAND (0XF0) SHA CONFIGURATION (0XF1) MEMORY CONTROL (0XF2) MEMORY INDEX (0XF3) MEMORY DATA (0XF4) PART ID (0XFF) Ordering Information Revision History
