Data Breif VIPER26K (STMicroelectronics) - 5

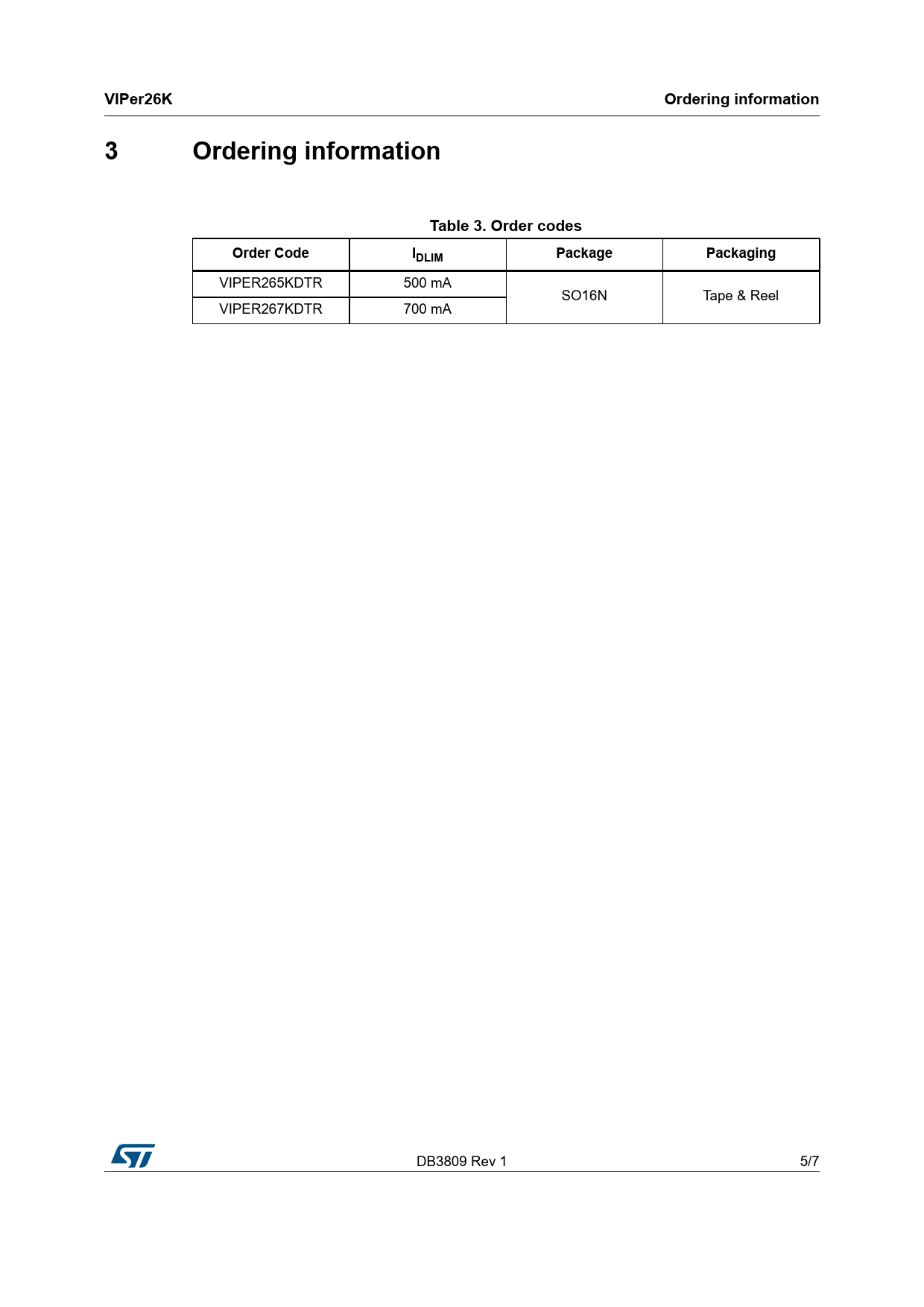

VIPer26K Ordering information 3 Ordering information Table 3. Order codes Order Code IDLIM Package Packaging
VIPER265KDTR 500 mA SO16N Tape & Reel VIPER267KDTR 700 mA DB3809 Rev 1 5/7 7 Document Outline 1 Pin description Figure 1. Connection diagram Table 1. Pin description 2 Electrical characteristics Table 2. Electrical and thermal characteristics Figure 2. Typical isolated flyback configuration with secondary regulation Figure 3. Typical isolated flyback configuration with primary regulation Figure 4. Typical non-isolated flyback configuration 3 Ordering information Table 3. Order codes 4 Revision history Table 4. Document revision history
