Datasheet MPSA06, MMBTA06, PZTA06 (ON Semiconductor) - 7
| Fabricante | ON Semiconductor |
| Descripción | NPN General Purpose Amplifier |
| Páginas / Página | 10 / 7 — MPSA06 / MMBTA06 / PZTA06 — NPN General-Purpose Amplifier Physical … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 411 Kb |
| Idioma del documento | Inglés |

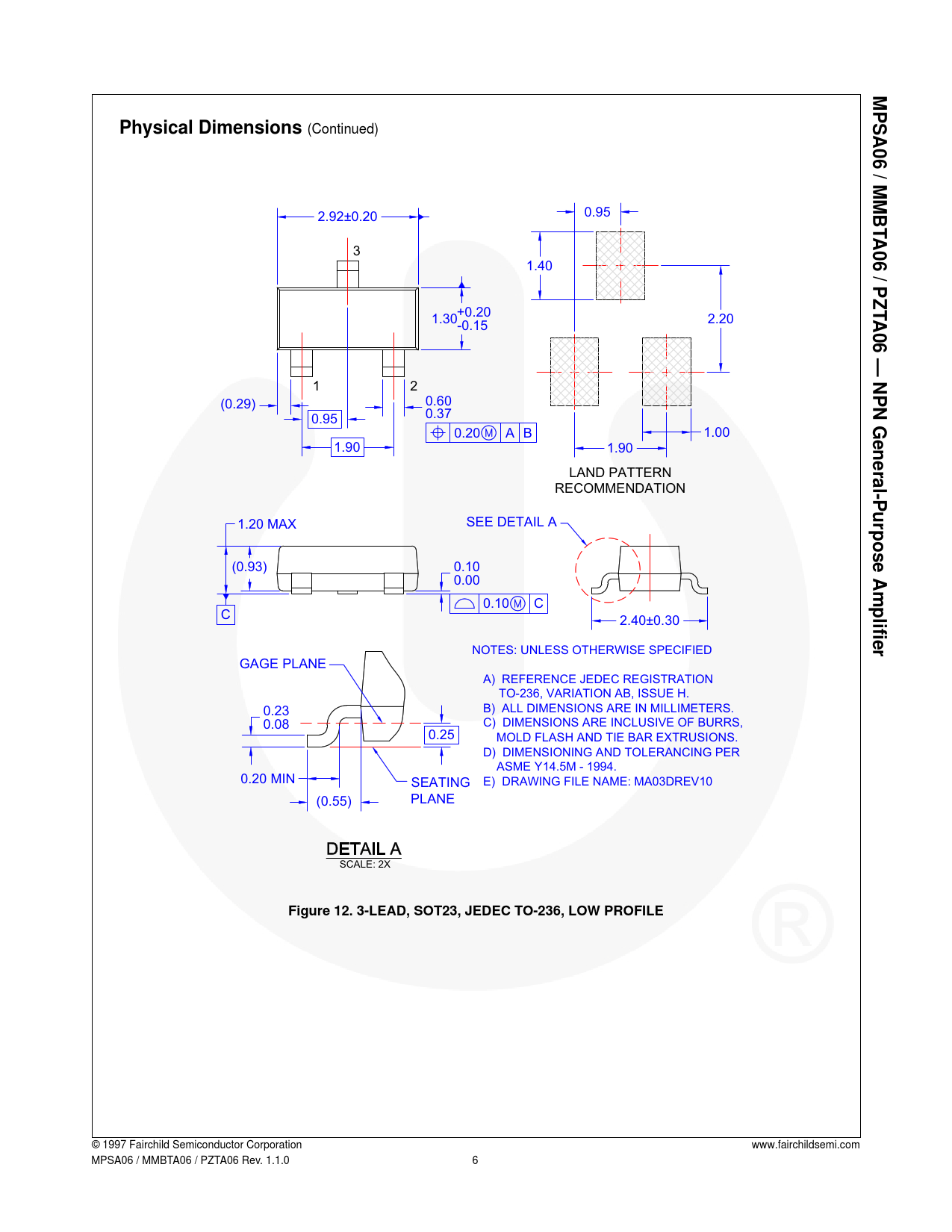

MPSA06 / MMBTA06 / PZTA06 — NPN General-Purpose Amplifier Physical Dimensions (Continued) 0.95 2.92±0.20. 3 1.40. 1.30+0.20
Línea de modelo para esta hoja de datos
Versión de texto del documento
MPSA06 / MMBTA06 / PZTA06 — NPN General-Purpose Amplifier Physical Dimensions (Continued) 0.95 2.92±0.20
3 1.40
1.30+0.20
-0.15 1
(0.29) 2 0.95
1.90 2.20 0.60
0.37
0.20 A B 1.90 1.00 LAND PATTERN
RECOMMENDATION
SEE DETAIL A 1.20 MAX 0.10
0.00 (0.93) 0.10 C C 2.40±0.30 NOTES: UNLESS OTHERWISE SPECIFIED GAGE PLANE
0.23
0.08 A) REFERENCE JEDEC REGISTRATION
TO-236, VARIATION AB, ISSUE H.
B) ALL DIMENSIONS ARE IN MILLIMETERS.
C) DIMENSIONS ARE INCLUSIVE OF BURRS,
MOLD FLASH AND TIE BAR EXTRUSIONS.
D) DIMENSIONING AND TOLERANCING PER
ASME Y14.5M -1994.
E) DRAWING FILE NAME: MA03DREV10 0.25 0.20 MIN
(0.55) SEATING
PLANE SCALE: 2X Figure 12. 3-LEAD, SOT23, JEDEC TO-236, LOW PROFILE © 1997 Fairchild Semiconductor Corporation
