One-Time Programmable, Linear-Taper Digital Potentiometers. Typical Operating Characteristics (continued)
Línea de modelo para esta hoja de datos
Versión de texto del documento

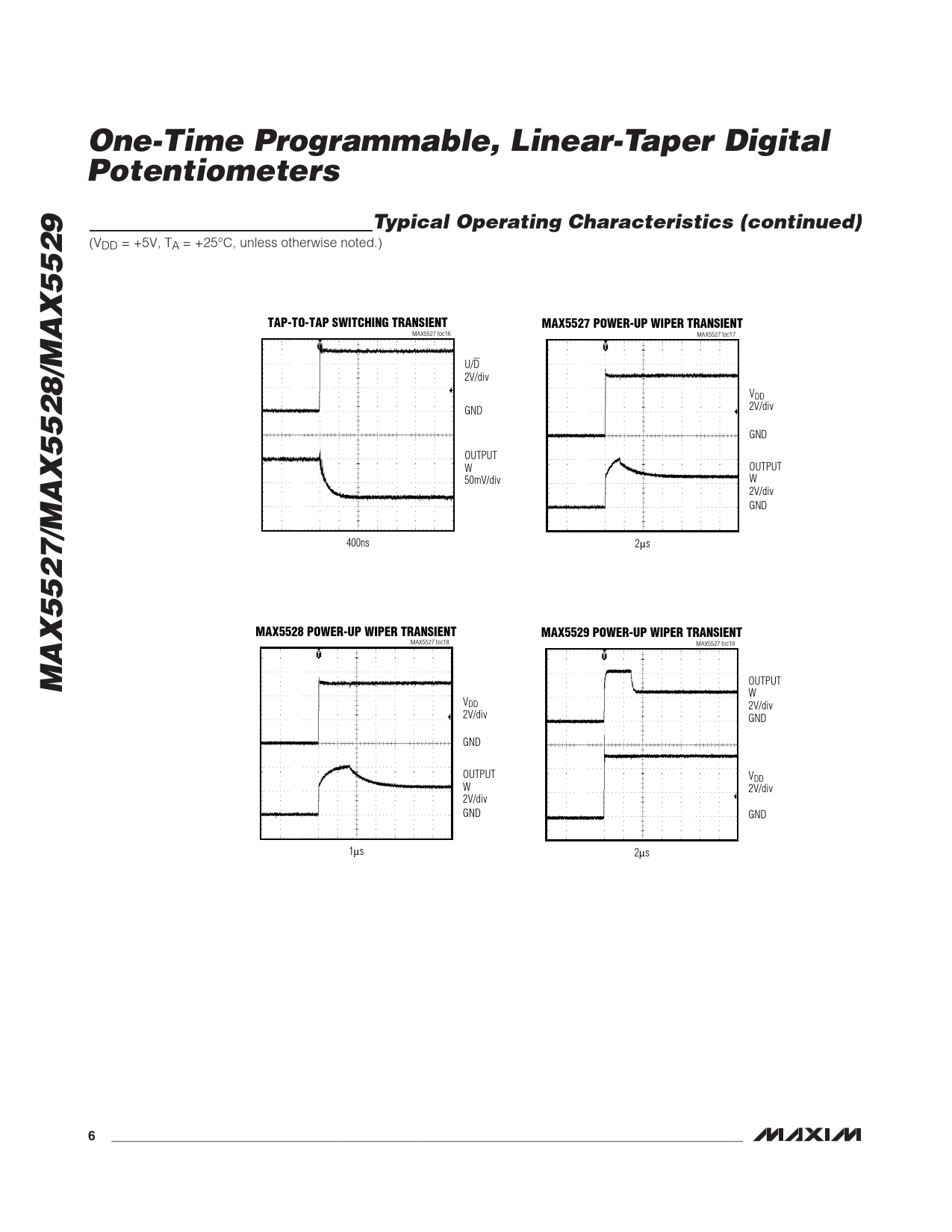

One-Time Programmable, Linear-Taper Digital Potentiometers Typical Operating Characteristics (continued)
(VDD = +5V, TA = +25°C, unless otherwise noted.)
TAP-TO-TAP SWITCHING TRANSIENT MAX5527 POWER-UP WIPER TRANSIENT
MAX5527 toc16 MAX5527 toc17 U/D 2V/div VDD 2V/div GND GND OUTPUT W OUTPUT 50mV/div W 2V/div GND 400ns 2µs
MAX5528 POWER-UP WIPER TRANSIENT MAX5529 POWER-UP WIPER TRANSIENT
MAX5527 toc18 MAX5527 toc19
MAX5527/MAX5528/MAX5529
OUTPUT W VDD 2V/div 2V/div GND GND OUTPUT VDD W 2V/div 2V/div GND GND 1µs 2µs
6 _______________________________________________________________________________________
