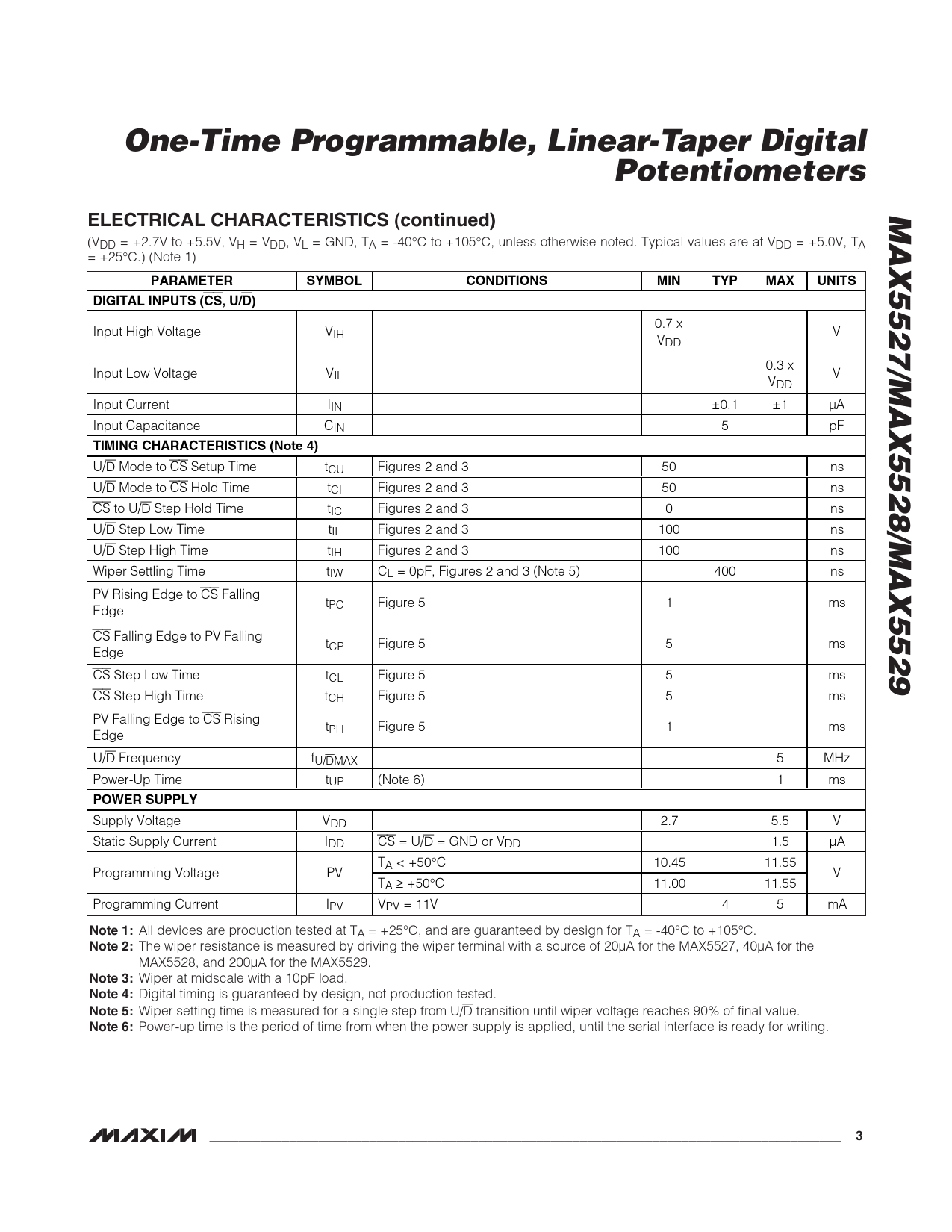

One-Time Programmable, Linear-Taper Digital. Potentiometers. MAX5527/MAX5528/MAX5529. ELECTRICAL CHARACTERISTICS (continued)
Línea de modelo para esta hoja de datos
Versión de texto del documento
One-Time Programmable, Linear-Taper Digital Potentiometers MAX5527/MAX5528/MAX5529 ELECTRICAL CHARACTERISTICS (continued)
(VDD = +2.7V to +5.5V, VH = VDD, VL = GND, TA = -40°C to +105°C, unless otherwise noted. Typical values are at VDD = +5.0V, TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS DIGITAL INPUTS (
CS
, U/
D
)
0.7 x Input High Voltage VIH V VDD 0.3 x Input Low Voltage VIL V VDD Input Current IIN ±0.1 ±1 µA Input Capacitance CIN 5 pF
TIMING CHARACTERISTICS (Note 4)
U/D Mode to CS Setup Time tCU Figures 2 and 3 50 ns U/D Mode to CS Hold Time tCI Figures 2 and 3 50 ns CS to U/D Step Hold Time tIC Figures 2 and 3 0 ns U/D Step Low Time tIL Figures 2 and 3 100 ns U/D Step High Time tIH Figures 2 and 3 100 ns Wiper Settling Time tIW CL = 0pF, Figures 2 and 3 (Note 5) 400 ns PV Rising Edge to CS Falling tPC Figure 5 1 ms Edge CS Falling Edge to PV Falling tCP Figure 5 5 ms Edge CS Step Low Time tCL Figure 5 5 ms CS Step High Time tCH Figure 5 5 ms PV Falling Edge to CS Rising tPH Figure 5 1 ms Edge U/D Frequency fU/DMAX 5 MHz Power-Up Time tUP (Note 6) 1 ms
POWER SUPPLY
Supply Voltage VDD 2.7 5.5 V Static Supply Current IDD CS = U/D = GND or VDD 1.5 µA TA < +50°C 10.45 11.55 Programming Voltage PV V TA ≥ +50°C 11.00 11.55 Programming Current IPV VPV = 11V 4 5 mA
Note 1:
All devices are production tested at TA = +25°C, and are guaranteed by design for TA = -40°C to +105°C.
Note 2:
The wiper resistance is measured by driving the wiper terminal with a source of 20µA for the MAX5527, 40µA for the MAX5528, and 200µA for the MAX5529.
Note 3:
Wiper at midscale with a 10pF load.
Note 4:
Digital timing is guaranteed by design, not production tested.
Note 5:
Wiper setting time is measured for a single step from U/D transition until wiper voltage reaches 90% of final value.
Note 6:
Power-up time is the period of time from when the power supply is applied, until the serial interface is ready for writing.
_______________________________________________________________________________________ 3
