Datasheet SZPL8216A (Silanna)
| Fabricante | Silanna |
| Descripción | 16V, 12A, High Frequency Synchronous Buck Converter |
| Páginas / Página | 4 / 1 — SZPL8216A. 16 V, 12 A, High Frequency Synchronous Buck Converter. … |
| Formato / tamaño de archivo | PDF / 252 Kb |
| Idioma del documento | Inglés |
SZPL8216A. 16 V, 12 A, High Frequency Synchronous Buck Converter. Features. Product Description. Applications. Part Number. Fault
Línea de modelo para esta hoja de datos
Versión de texto del documento

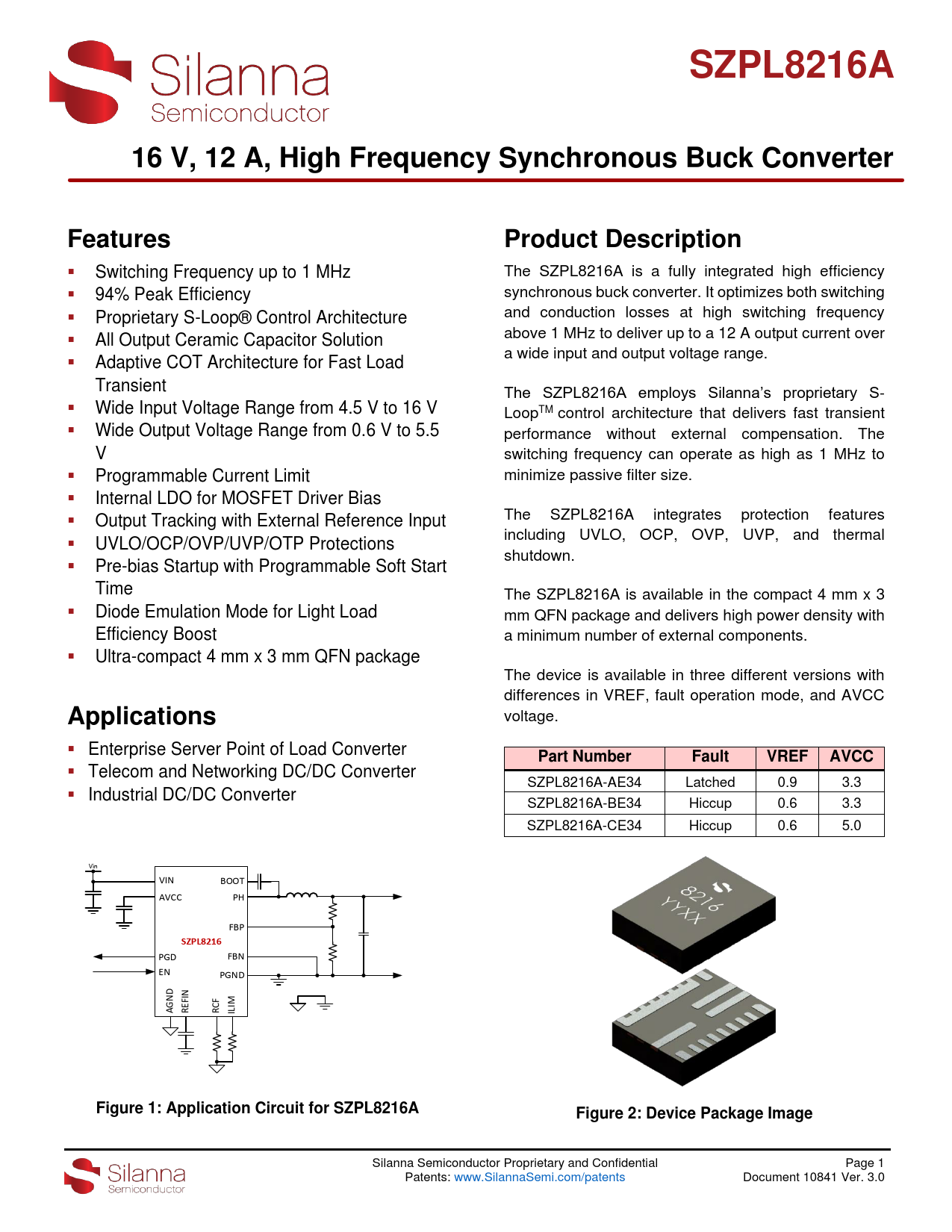

SZPL8216A 16 V, 12 A, High Frequency Synchronous Buck Converter Features Product Description
▪ Switching Frequency up to 1 MHz The SZPL8216A is a fully integrated high efficiency ▪ 94% Peak Efficiency synchronous buck converter. It optimizes both switching ▪ Proprietary S-Loop® Control Architecture and conduction losses at high switching frequency ▪ All Output Ceramic Capacitor Solution above 1 MHz to deliver up to a 12 A output current over ▪ a wide input and output voltage range. Adaptive COT Architecture for Fast Load Transient The SZPL8216A employs Silanna’s proprietary S- ▪ Wide Input Voltage Range from 4.5 V to 16 V LoopTM control architecture that delivers fast transient ▪ Wide Output Voltage Range from 0.6 V to 5.5 performance without external compensation. The V switching frequency can operate as high as 1 MHz to ▪ Programmable Current Limit minimize passive filter size. ▪ Internal LDO for MOSFET Driver Bias ▪ Output Tracking with External Reference Input The SZPL8216A integrates protection features ▪ including UVLO, OCP, OVP, UVP, and thermal UVLO/OCP/OVP/UVP/OTP Protections shutdown. ▪ Pre-bias Startup with Programmable Soft Start Time The SZPL8216A is available in the compact 4 mm x 3 ▪ Diode Emulation Mode for Light Load mm QFN package and delivers high power density with Efficiency Boost a minimum number of external components. ▪ Ultra-compact 4 mm x 3 mm QFN package The device is available in three different versions with differences in VREF, fault operation mode, and AVCC
Applications
voltage. ▪ Enterprise Server Point of Load Converter
Part Number Fault VREF AVCC
▪ Telecom and Networking DC/DC Converter SZPL8216A-AE34 Latched 0.9 3.3 ▪ Industrial DC/DC Converter SZPL8216A-BE34 Hiccup 0.6 3.3 SZPL8216A-CE34 Hiccup 0.6 5.0 Vin VIN BOOT AVCC PH FBP
SZPL8216
PGD FBN EN PGND D N IN G FE FC IM A R R IL
Figure 1: Application Circuit for SZPL8216A Figure 2: Device Package Image
Silanna Semiconductor Proprietary and Confidential Page 1 Patents: www.SilannaSemi.com/patents Document 10841 Ver. 3.0
