Datasheet BC546, BC846 (NXP) - 3
| Fabricante | NXP |
| Descripción | NPN general-purpose transistors in Surface Mounted Device (SMD) plastic packages |
| Páginas / Página | 14 / 3 — NXP Semiconductors. BC846/BC546 series. 65 V, 100 mA NPN general-purpose … |
| Formato / tamaño de archivo | PDF / 382 Kb |
| Idioma del documento | Inglés |
NXP Semiconductors. BC846/BC546 series. 65 V, 100 mA NPN general-purpose transistors. Ordering information. Table 4
Línea de modelo para esta hoja de datos
BC546
Versión de texto del documento
link to page 3 link to page 3 link to page 3 link to page 2 link to page 9 link to page 3 link to page 3

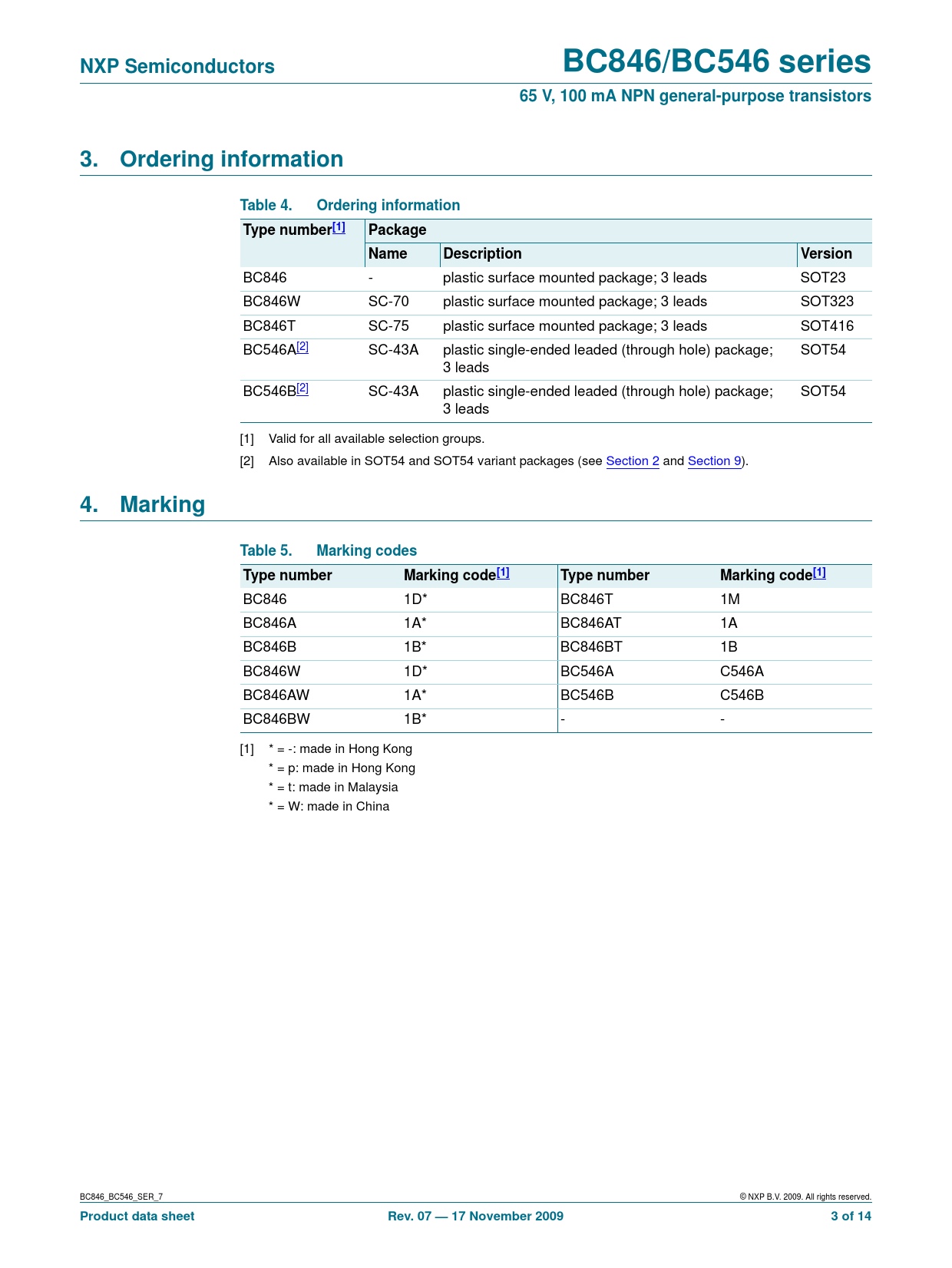

NXP Semiconductors BC846/BC546 series 65 V, 100 mA NPN general-purpose transistors 3. Ordering information Table 4. Ordering information Type number[1] Package Name Description Version
BC846 - plastic surface mounted package; 3 leads SOT23 BC846W SC-70 plastic surface mounted package; 3 leads SOT323 BC846T SC-75 plastic surface mounted package; 3 leads SOT416 BC546A[2] SC-43A plastic single-ended leaded (through hole) package; SOT54 3 leads BC546B[2] SC-43A plastic single-ended leaded (through hole) package; SOT54 3 leads [1] Valid for all available selection groups. [2] Also available in SOT54 and SOT54 variant packages (see Section 2 and Section 9).
4. Marking Table 5. Marking codes Type number Marking code[1] Type number Marking code[1]
BC846 1D* BC846T 1M BC846A 1A* BC846AT 1A BC846B 1B* BC846BT 1B BC846W 1D* BC546A C546A BC846AW 1A* BC546B C546B BC846BW 1B* - - [1] * = -: made in Hong Kong * = p: made in Hong Kong * = t: made in Malaysia * = W: made in China BC846_BC546_SER_7 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 07 — 17 November 2009 3 of 14
Document Outline 1. Product profile 1.1 General description 1.2 Features 1.3 Applications 1.4 Quick reference data 2. Pinning information 3. Ordering information 4. Marking 5. Limiting values 6. Thermal characteristics 7. Characteristics 8. Package outline 9. Packing information 10. Soldering 11. Revision history 12. Legal information 12.1 Data sheet status 12.2 Definitions 12.3 Disclaimers 12.4 Trademarks 13. Contact information 14. Contents
