| Descripción | The MIC862 is a dual low-power operational amplifier in an SOT23-8 package |
| Páginas / Página | 24 / 1 — MIC862. Dual Ultra-Low Power Op Amp in SOT-23-8. Features. General … |
| Formato / tamaño de archivo | PDF / 1.7 Mb |
| Idioma del documento | Inglés |

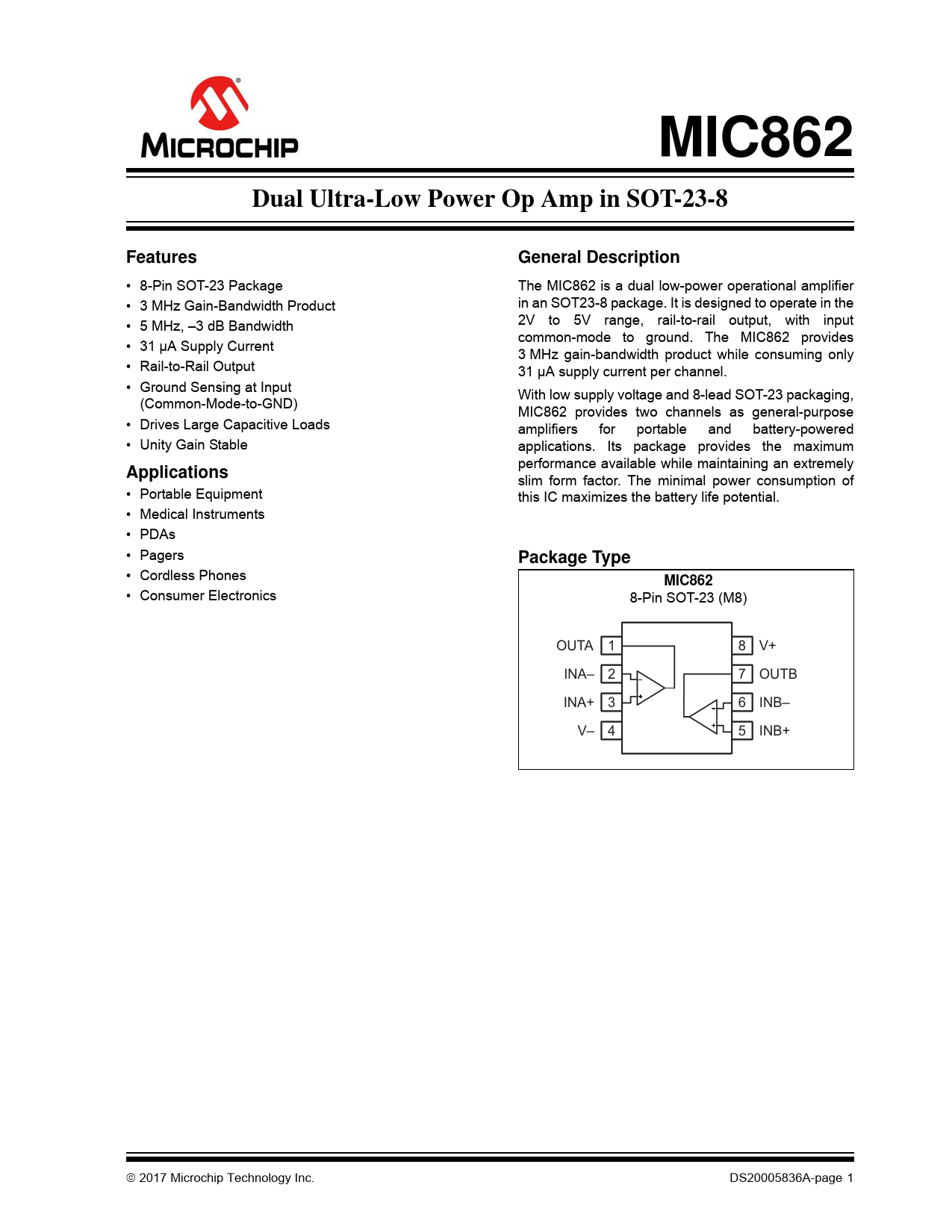

MIC862. Dual Ultra-Low Power Op Amp in SOT-23-8. Features. General Description. Applications. Package Type
Línea de modelo para esta hoja de datos
Versión de texto del documento
MIC862 Dual Ultra-Low Power Op Amp in SOT-23-8 Features General Description
• 8-Pin SOT-23 Package The MIC862 is a dual low-power operational amplifier • 3 MHz Gain-Bandwidth Product in an SOT23-8 package. It is designed to operate in the • 5 MHz, –3 dB Bandwidth 2V to 5V range, rail-to-rail output, with input common-mode to ground. The MIC862 provides • 31 µA Supply Current 3 MHz gain-bandwidth product while consuming only • Rail-to-Rail Output 31 µA supply current per channel. • Ground Sensing at Input With low supply voltage and 8-lead SOT-23 packaging, (Common-Mode-to-GND) MIC862 provides two channels as general-purpose • Drives Large Capacitive Loads amplifiers for portable and battery-powered • Unity Gain Stable applications. Its package provides the maximum performance available while maintaining an extremely
Applications
slim form factor. The minimal power consumption of • Portable Equipment this IC maximizes the battery life potential. • Medical Instruments • PDAs • Pagers
Package Type
• Cordless Phones
MIC862
• Consumer Electronics 8-Pin SOT-23 (M8) OUTA 1 8 V+ INA– 2 7 OUTB INA+ 3 6 INB– V– 4 5 INB+ 2017 Microchip Technology Inc. DS20005836A-page 1 Document Outline 1.0 Electrical Characteristics 2.0 Typical Performance Curves 3.0 Pin Descriptions 4.0 Application Information 4.1 Power Supply Bypassing 4.2 Supply and Loading Resistive Considerations 4.3 Capacitive Load 5.0 Packaging Information 5.1 Package Marking Information Appendix A: Revision History Product Identification System Worldwide Sales and Service
