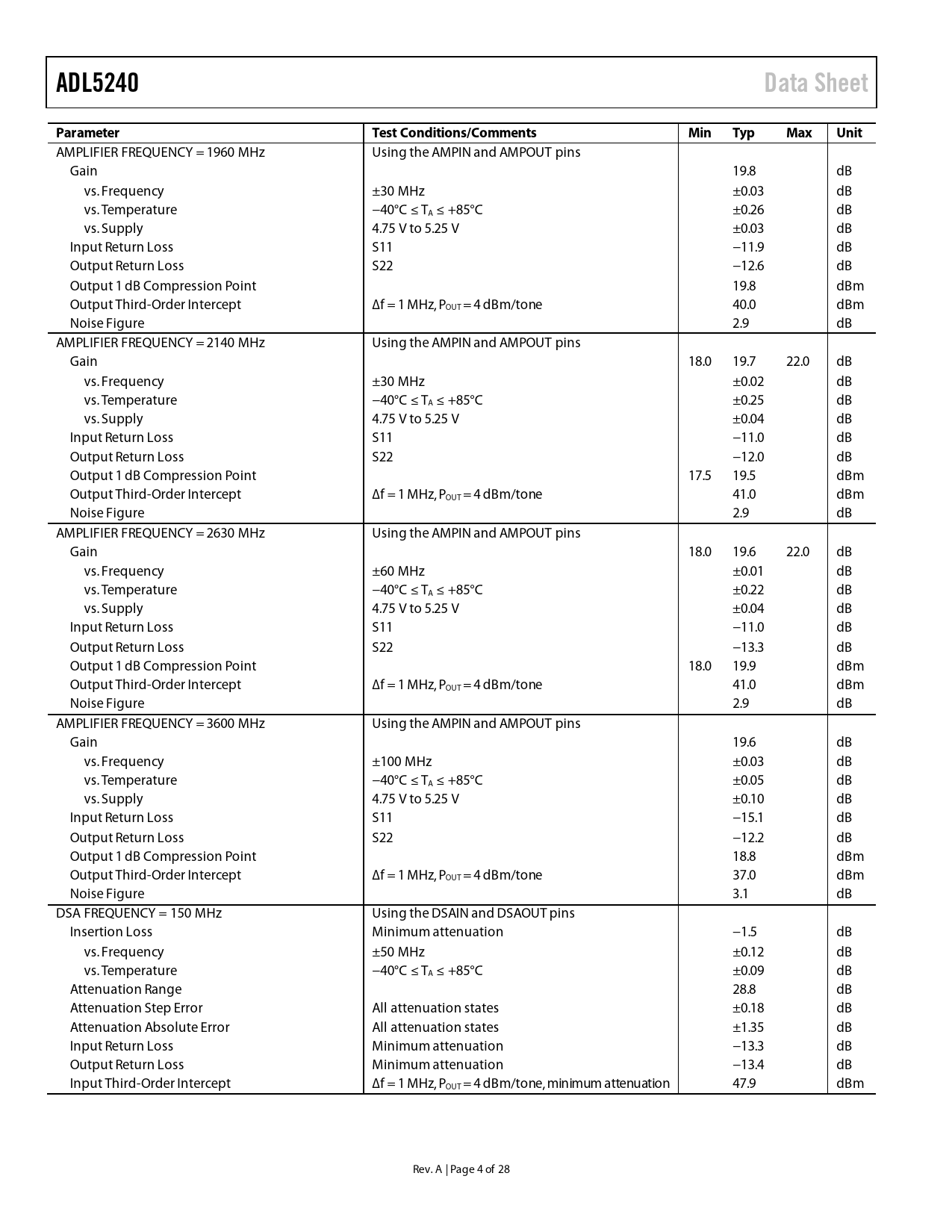

ADL5240 Data Sheet Parameter Test Conditions/Comments Min Typ Max Unit
AMPLIFIER FREQUENCY = 1960 MHz Using the AMPIN and AMPOUT pins Gain 19.8 dB vs. Frequency ±30 MHz ±0.03 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.26 dB vs. Supply 4.75 V to 5.25 V ±0.03 dB Input Return Loss S11 −11.9 dB Output Return Loss S22 −12.6 dB Output 1 dB Compression Point 19.8 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 4 dBm/tone 40.0 dBm Noise Figure 2.9 dB AMPLIFIER FREQUENCY = 2140 MHz Using the AMPIN and AMPOUT pins Gain 18.0 19.7 22.0 dB vs. Frequency ±30 MHz ±0.02 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.25 dB vs. Supply 4.75 V to 5.25 V ±0.04 dB Input Return Loss S11 −11.0 dB Output Return Loss S22 −12.0 dB Output 1 dB Compression Point 17.5 19.5 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 4 dBm/tone 41.0 dBm Noise Figure 2.9 dB AMPLIFIER FREQUENCY = 2630 MHz Using the AMPIN and AMPOUT pins Gain 18.0 19.6 22.0 dB vs. Frequency ±60 MHz ±0.01 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.22 dB vs. Supply 4.75 V to 5.25 V ±0.04 dB Input Return Loss S11 −11.0 dB Output Return Loss S22 −13.3 dB Output 1 dB Compression Point 18.0 19.9 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 4 dBm/tone 41.0 dBm Noise Figure 2.9 dB AMPLIFIER FREQUENCY = 3600 MHz Using the AMPIN and AMPOUT pins Gain 19.6 dB vs. Frequency ±100 MHz ±0.03 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.05 dB vs. Supply 4.75 V to 5.25 V ±0.10 dB Input Return Loss S11 −15.1 dB Output Return Loss S22 −12.2 dB Output 1 dB Compression Point 18.8 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 4 dBm/tone 37.0 dBm Noise Figure 3.1 dB DSA FREQUENCY = 150 MHz Using the DSAIN and DSAOUT pins Insertion Loss Minimum attenuation −1.5 dB vs. Frequency ±50 MHz ±0.12 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.09 dB Attenuation Range 28.8 dB Attenuation Step Error All attenuation states ±0.18 dB Attenuation Absolute Error All attenuation states ±1.35 dB Input Return Loss Minimum attenuation −13.3 dB Output Return Loss Minimum attenuation −13.4 dB Input Third-Order Intercept ∆f = 1 MHz, POUT = 4 dBm/tone, minimum attenuation 47.9 dBm Rev. A | Page 4 of 28 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Applications Information Basic Layout Connections Amplifier Bias Digital Step Attenuator Bias Amplifier RF Input Interface Amplifier RF Output Interface DSA RF Input Interface DSA RF Output Interface DSA SPI Interface SPI Timing SPI Timing Sequence Loop Performance Amplifier Drive Level for Optimum ACLR Thermal Considerations Evaluation Board Outline Dimensions Ordering Guide
