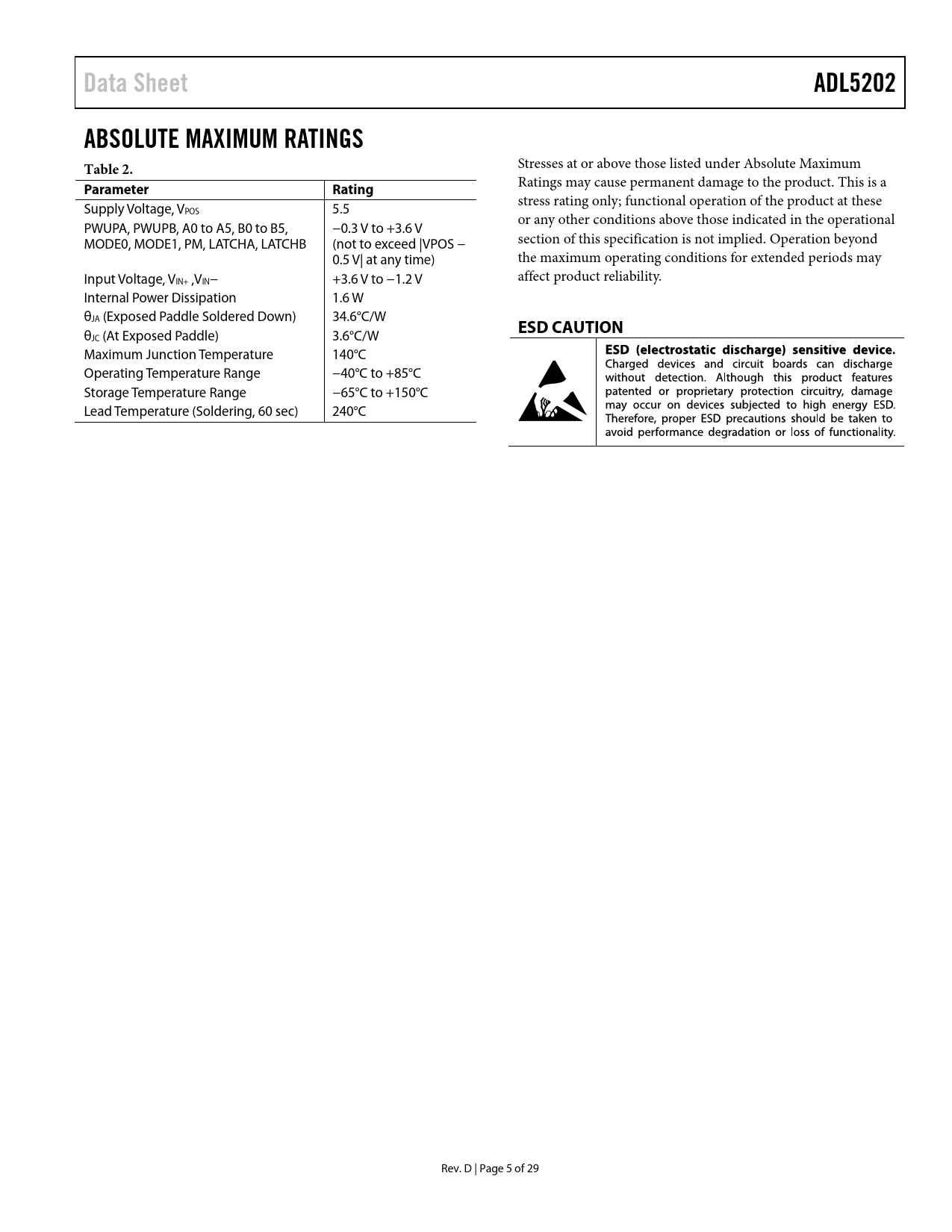

Data Sheet. ADL5202. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION

Data Sheet ADL5202 ABSOLUTE MAXIMUM RATINGS Table 2 Parameter Rating ESD CAUTION

Línea de modelo para esta hoja de datos

Versión de texto del documento

Data Sheet ADL5202 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Supply Voltage, VPOS 5.5 or any other conditions above those indicated in the operational PWUPA, PWUPB, A0 to A5, B0 to B5, −0.3 V to +3.6 V MODE0, MODE1, PM, LATCHA, LATCHB (not to exceed |VPOS − section of this specification is not implied. Operation beyond 0.5 V| at any time) the maximum operating conditions for extended periods may Input Voltage, VIN+ ,VIN− +3.6 V to −1.2 V affect product reliability. Internal Power Dissipation 1.6 W θJA (Exposed Paddle Soldered Down) 34.6°C/W
ESD CAUTION
θJC (At Exposed Paddle) 3.6°C/W Maximum Junction Temperature 140°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Lead Temperature (Soldering, 60 sec) 240°C Rev. D | Page 5 of 29 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS Timing Diagrams ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS CHARACTERIZATION AND TEST CIRCUITS THEORY OF OPERATION DIGITAL INTERFACE OVERVIEW PARALLEL DIGITAL INTERFACE SERIAL PERIPHERAL INTERFACE (SPI) Fast Attack GAIN UP/DOWN INTERFACE TRUTH TABLE LOGIC TIMING CIRCUIT DESCRIPTION BASIC STRUCTURE Input System Output Amplifier Gain Control APPLICATIONS INFORMATION BASIC CONNECTIONS ADC DRIVING LAYOUT CONSIDERATIONS EVALUATION BOARD EVALUATION BOARD CONTROL SOFTWARE EVALUATION BOARD SCHEMATICS AND ARTWORK EVALUATION BOARD CONFIGURATION OPTIONS Configuration Options for the Main Section Configuration Options for the USB Section OUTLINE DIMENSIONS ORDERING GUIDE
