Datasheet HMC8120 (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | 71 GHz to 76 GHz, E-Band Variable Gain Amplifier |
| Páginas / Página | 16 / 1 — 71 GHz to 76 GHz,. E-Band Variable Gain Amplifier. Data Sheet. HMC8120. … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 362 Kb |
| Idioma del documento | Inglés |

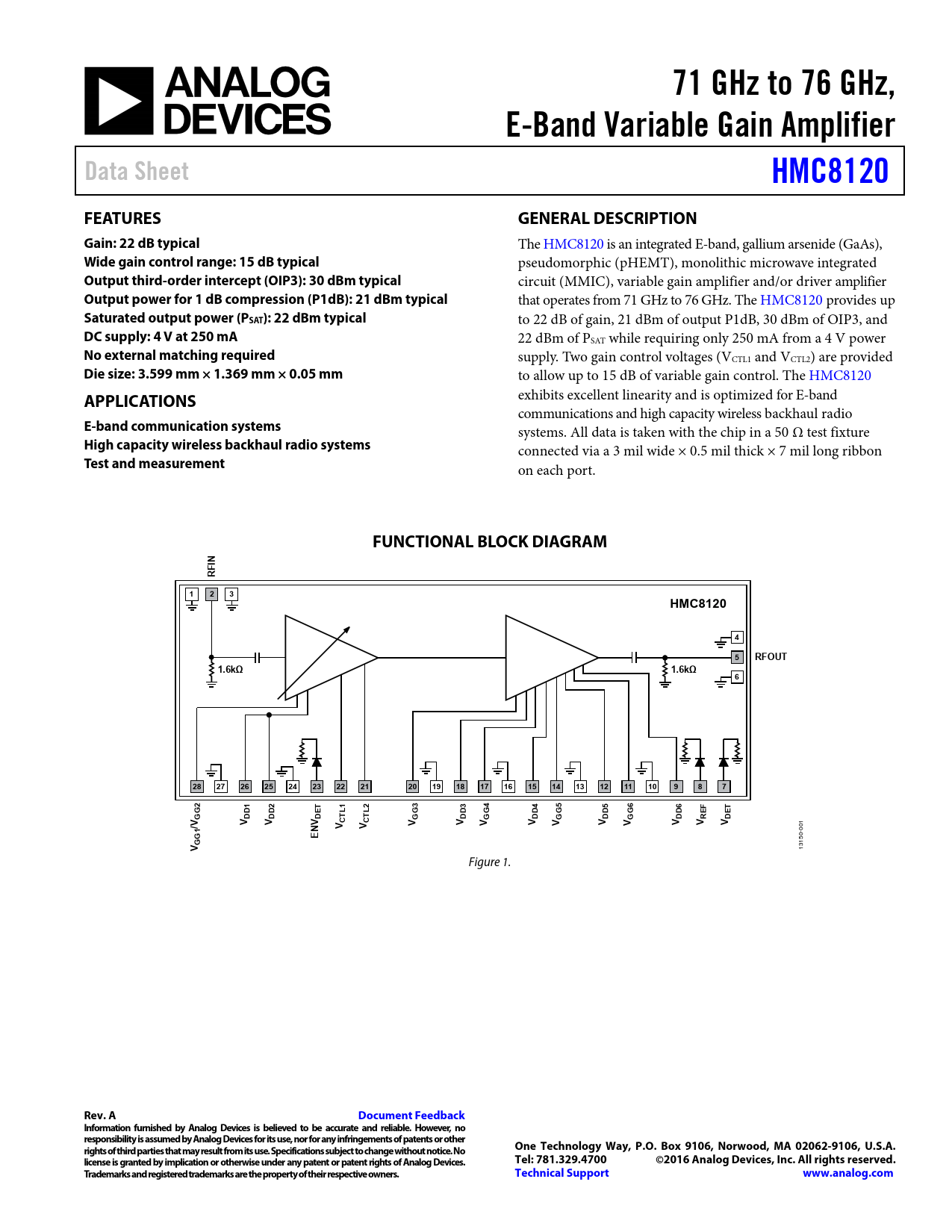

71 GHz to 76 GHz,. E-Band Variable Gain Amplifier. Data Sheet. HMC8120. FEATURES. GENERAL DESCRIPTION. Gain: 22 dB typical
Línea de modelo para esta hoja de datos
Versión de texto del documento
71 GHz to 76 GHz, E-Band Variable Gain Amplifier Data Sheet HMC8120 FEATURES GENERAL DESCRIPTION Gain: 22 dB typical
The HMC8120 is an integrated E-band, gallium arsenide (GaAs),
Wide gain control range: 15 dB typical
pseudomorphic (pHEMT), monolithic microwave integrated
Output third-order intercept (OIP3): 30 dBm typical
circuit (MMIC), variable gain amplifier and/or driver amplifier
Output power for 1 dB compression (P1dB): 21 dBm typical
that operates from 71 GHz to 76 GHz. The HMC8120 provides up
Saturated output power (PSAT): 22 dBm typical
to 22 dB of gain, 21 dBm of output P1dB, 30 dBm of OIP3, and
DC supply: 4 V at 250 mA
22 dBm of PSAT while requiring only 250 mA from a 4 V power
No external matching required
supply. Two gain control voltages (VCTL1 and VCTL2) are provided
Die size: 3.599 mm × 1.369 mm × 0.05 mm
to allow up to 15 dB of variable gain control. The HMC8120
APPLICATIONS
exhibits excellent linearity and is optimized for E-band communications and high capacity wireless backhaul radio
E-band communication systems
systems. All data is taken with the chip in a 50 Ω test fixture
High capacity wireless backhaul radio systems
connected via a 3 mil wide × 0.5 mil thick × 7 mil long ribbon
Test and measurement
on each port.
FUNCTIONAL BLOCK DIAGRAM IN RF 1 2 3 HMC8120 4 5 RFOUT 1.6kΩ 1.6kΩ 6 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 1 2 GG2 DD1 DD2 DET CTL CTL GG3 DD3 GG4 DD4 GG5 DD5 GG6 DD6 REF DET /V V V V V V V V V V V V V V
