HMC625BLP5E
v02.0616
0.5 dB LSB GaAs MMIC 6-BIT DIGITAL VARIABLE GAIN AMPLIFIER, DC - 5 GHz Evaluation PCB
T M L - S ITA IG S - D R U1 IE LIF P M IN A A LE G B IA R A

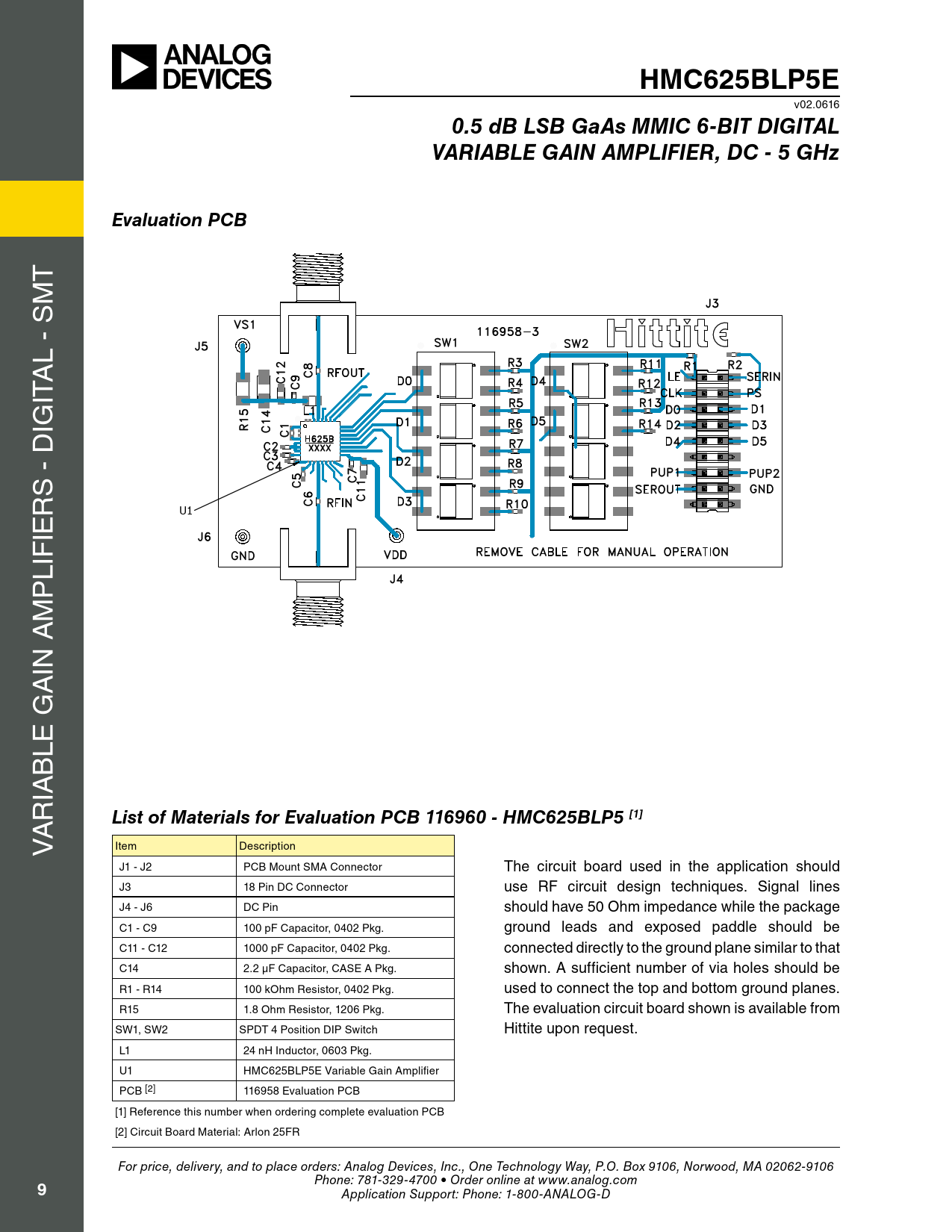

List of Materials for Evaluation PCB 116960 - HMC625BLP5 [1]
V Item Description J1 - J2 PCB Mount SMA Connector The circuit board used in the application should J3 18 Pin DC Connector use RF circuit design techniques. Signal lines J4 - J6 DC Pin should have 50 Ohm impedance while the package C1 - C9 100 pF Capacitor, 0402 Pkg. ground leads and exposed paddle should be C11 - C12 1000 pF Capacitor, 0402 Pkg. connected directly to the ground plane similar to that C14 2.2 µF Capacitor, CASE A Pkg. shown. A sufficient number of via holes should be R1 - R14 100 kOhm Resistor, 0402 Pkg. used to connect the top and bottom ground planes. R15 1.8 Ohm Resistor, 1206 Pkg. The evaluation circuit board shown is available from SW1, SW2 SPDT 4 Position DIP Switch Hittite upon request. L1 24 nH Inductor, 0603 Pkg. U1 HMC625BLP5E Variable Gain Amplifier PCB [2] 116958 Evaluation PCB [1] Reference this number when ordering complete evaluation PCB [2] Circuit Board Material: Arlon 25FR For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
