Datasheet ADRF6518 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | 1.1 GHz Variable Gain Amplifiers and Baseband Programmable Filters |
| Páginas / Página | 39 / 5 — Data Sheet. ADRF6518. TIMING DIAGRAMS. tCLK. tPW. CLK. tLH. tLS. tDS. … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 1.6 Mb |
| Idioma del documento | Inglés |
Data Sheet. ADRF6518. TIMING DIAGRAMS. tCLK. tPW. CLK. tLH. tLS. tDS. tDH. DATA. WRITE BIT. LSB. LSB + 1. LSB + 2. LSB + 3. MSB – 3. MSB – 2. MSB – 1
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet ADRF6518 TIMING DIAGRAMS tCLK tPW CLK tLH tLS LE tDS tDH DATA WRITE BIT LSB LSB + 1 LSB + 2 LSB + 3 MSB – 3 MSB – 2 MSB – 1 MSB - 2 MSB NOTES
002
1. THE FIRST DATA BIT DETERMINES WHETHER THE PART IS WRITING TO OR READING FROM THE INTERNAL 16-BIT REGISTER. FOR A WRITE OPERATION, THE FIRST BIT SHOULD BE A LOGIC 1. THE 16-BIT WORD IS THEN REGISTERED INTO THE DATA PIN ON CONSECUTIVE RISING EDGES OF THE CLOCK.

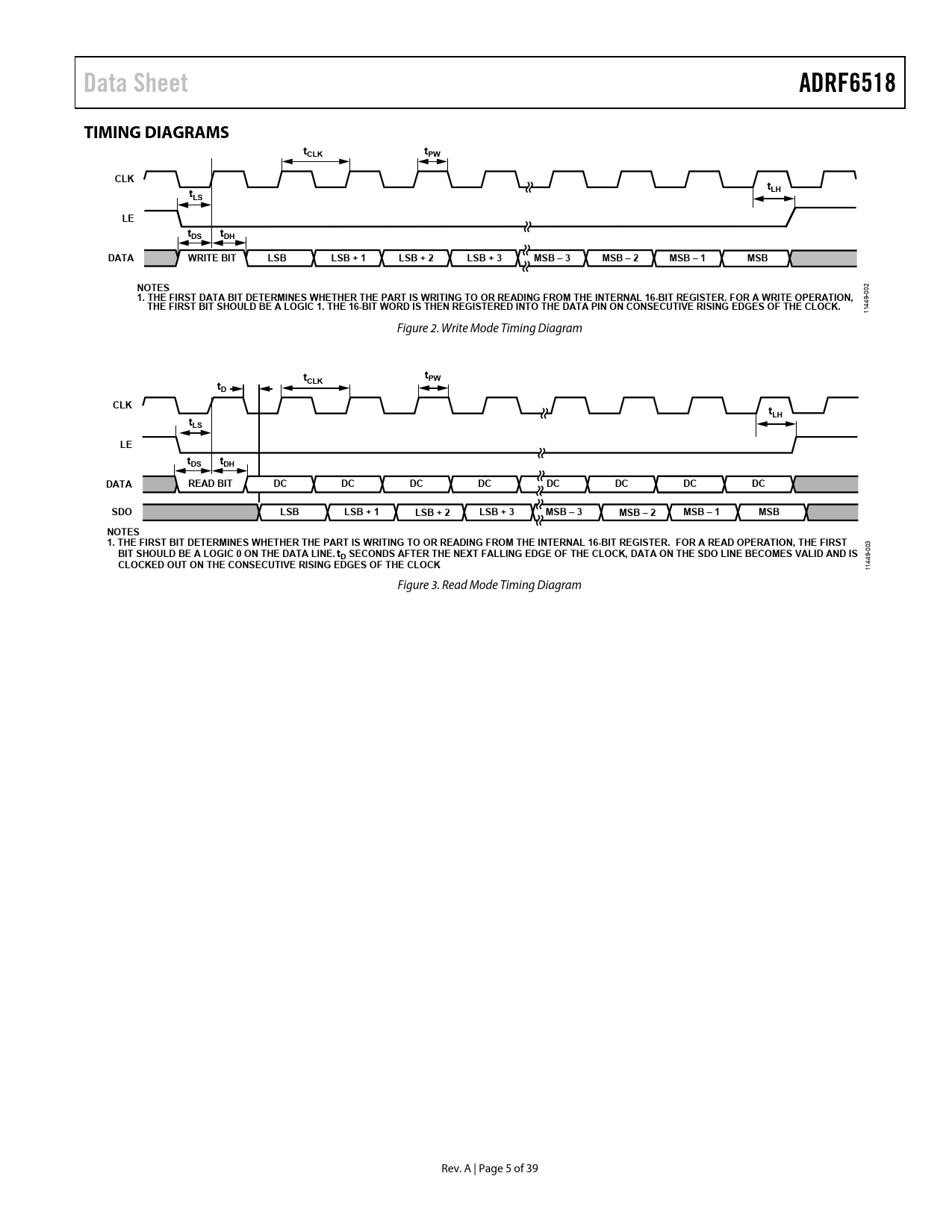

11449- Figure 2. Write Mode Timing Diagram
t tPW CLK tD CLK tLH tLS LE tDS tDH DATA READ BIT DC DC DC DC DC DC DC DC SDO LSB LSB + 1 LSB + 2 LSB + 3 MSB – 3 MSB – 2 MSB – 1 MSB NOTES 1. THE FIRST BIT DETERMINES WHETHER THE PART IS WRITING TO OR READING FROM THE INTERNAL 16-BIT REGISTER. FOR A READ OPERATION, THE FIRST
003
BIT SHOULD BE A LOGIC 0 ON THE DATA LINE. tD SECONDS AFTER THE NEXT FALLING EDGE OF THE CLOCK, DATA ON THE SDO LINE BECOMES VALID AND IS CLOCKED OUT ON THE CONSECUTIVE RISING EDGES OF THE CLOCK
