Datasheet AD8335 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | Quad Low Noise, Low Cost Variable Gain Amplifier |
| Páginas / Página | 28 / 5 — Data Sheet. AD8335. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Rating. … |
| Revisión | B |
| Formato / tamaño de archivo | PDF / 915 Kb |
| Idioma del documento | Inglés |

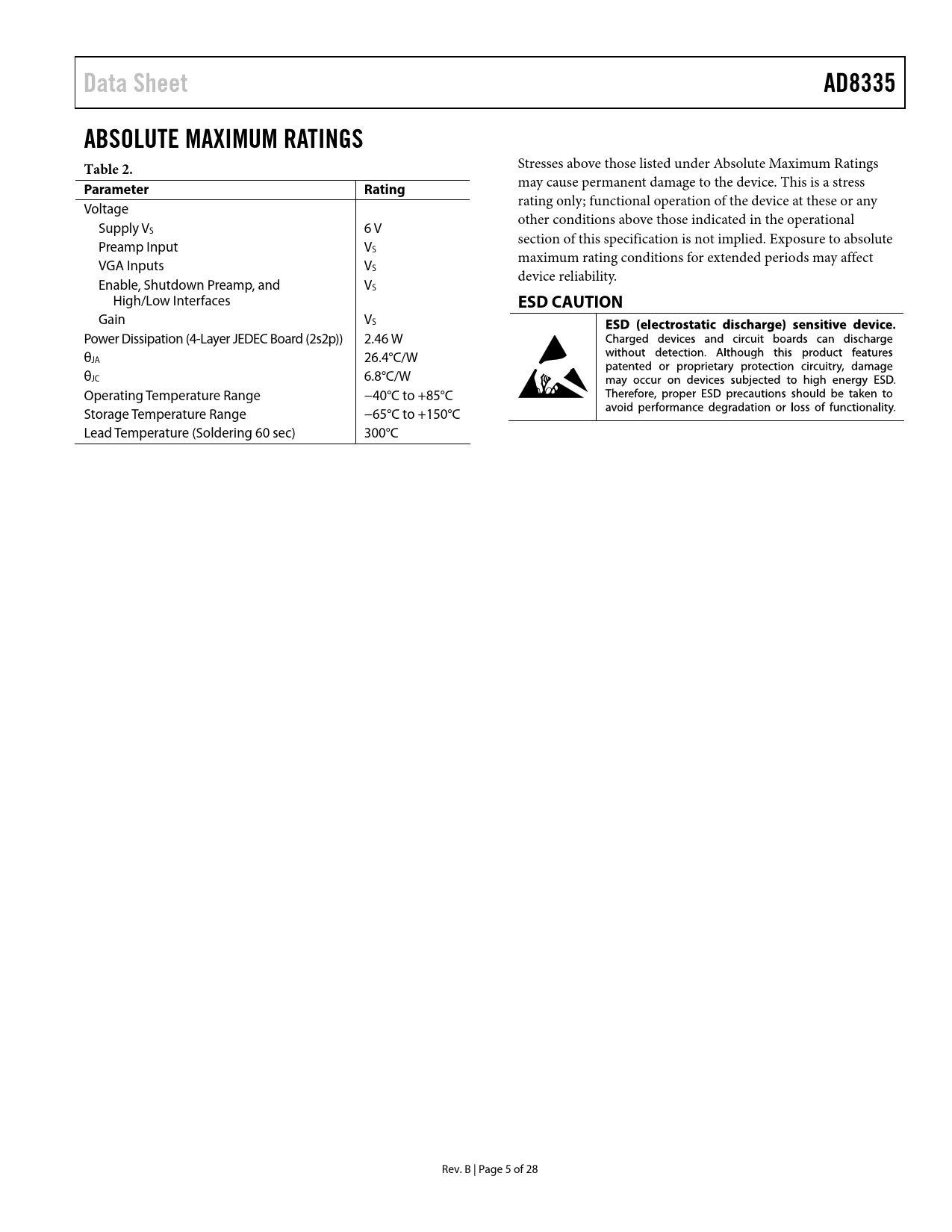

Data Sheet. AD8335. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet AD8335 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress
Parameter Rating
rating only; functional operation of the device at these or any Voltage other conditions above those indicated in the operational Supply VS 6 V section of this specification is not implied. Exposure to absolute Preamp Input VS maximum rating conditions for extended periods may affect VGA Inputs VS device reliability. Enable, Shutdown Preamp, and VS High/Low Interfaces
ESD CAUTION
Gain VS Power Dissipation (4-Layer JEDEC Board (2s2p)) 2.46 W θJA 26.4°C/W θJC 6.8°C/W Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Lead Temperature (Soldering 60 sec) 300°C Rev. B | Page 5 of 28 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS THEORY OF OPERATION ENABLE SUMMARY PREAMP Noise VGA Optimizing the System Dynamic Range Attenuator Gain Control Output Stage VGA Noise APPLICATIONS INFORMATION ULTRASOUND BASIC CONNECTIONS PREAMP CONNECTIONS INPUT OVERDRIVE Input Overload Protection LOGIC INPUTS COMMON-MODE PINS DRIVING ADCs EVALUATION BOARD BOARD LAYOUT OUTLINE DIMENSIONS ORDERING GUIDE
