Datasheet AD8337 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | General-Purpose, Low Cost, DC-Coupled VGA |
| Páginas / Página | 28 / 5 — Data Sheet. AD8337. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Rating. … |
| Revisión | D |
| Formato / tamaño de archivo | PDF / 978 Kb |
| Idioma del documento | Inglés |

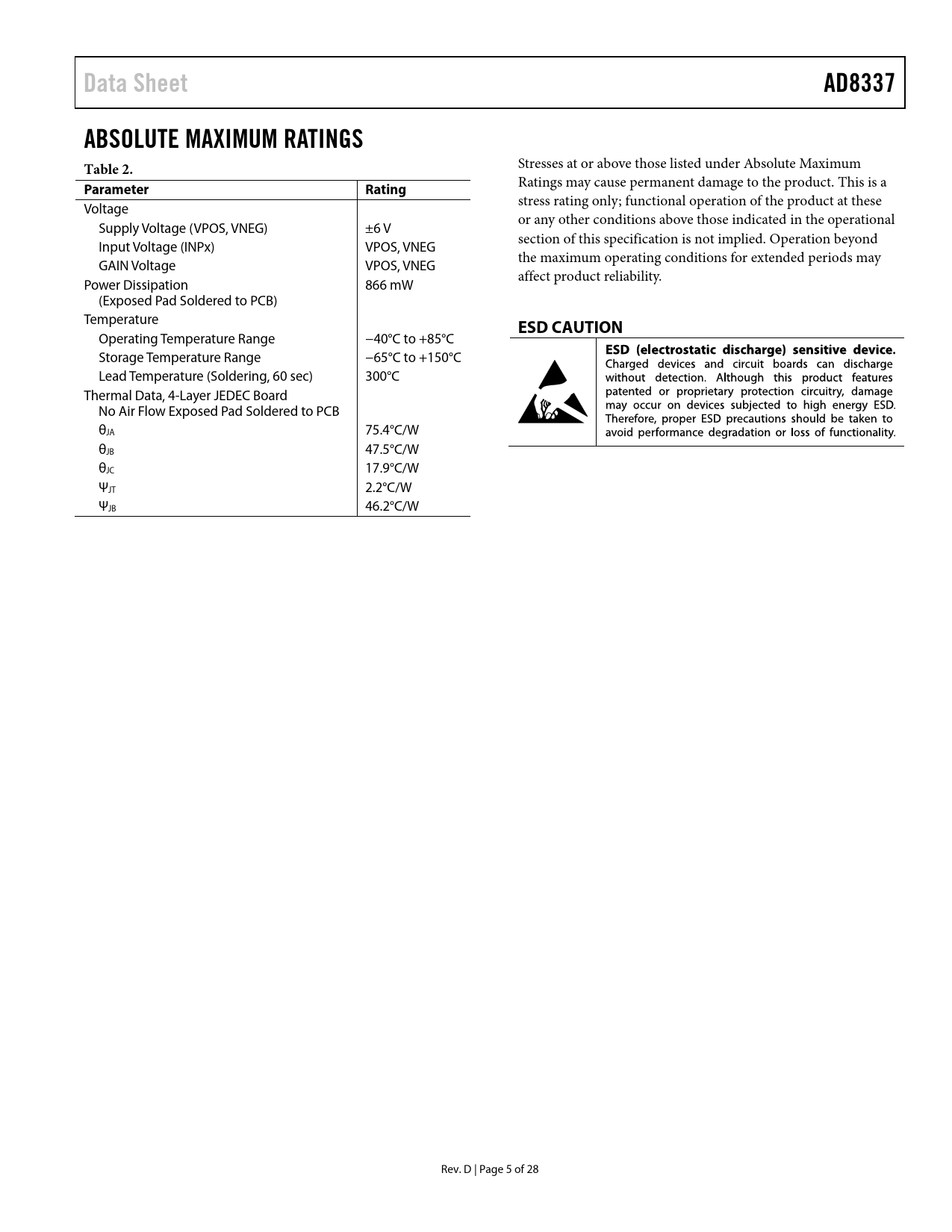

Data Sheet. AD8337. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet AD8337 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these Voltage or any other conditions above those indicated in the operational Supply Voltage (VPOS, VNEG) ±6 V section of this specification is not implied. Operation beyond Input Voltage (INPx) VPOS, VNEG the maximum operating conditions for extended periods may GAIN Voltage VPOS, VNEG affect product reliability. Power Dissipation 866 mW (Exposed Pad Soldered to PCB) Temperature
