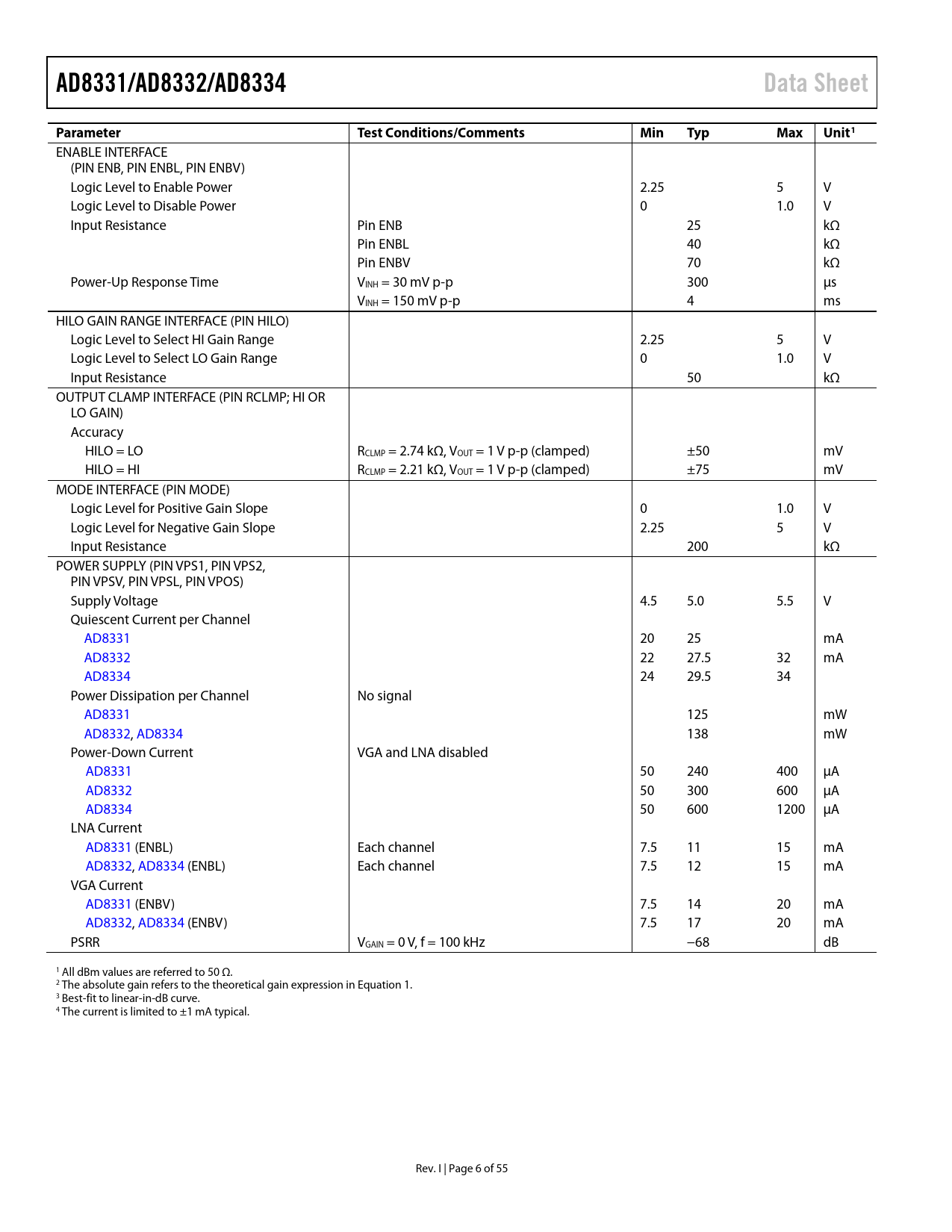

Datasheet AD8331, AD8332, AD8334 (Analog Devices) - 6

AD8331/AD8332/AD8334 Data Sheet Parameter Test Conditions/Comments Min Typ Max Unit1
ENABLE INTERFACE (PIN ENB, PIN ENBL, PIN ENBV) Logic Level to Enable Power 2.25 5 V Logic Level to Disable Power 0 1.0 V Input Resistance Pin ENB 25 kΩ Pin ENBL 40 kΩ Pin ENBV 70 kΩ Power-Up Response Time VINH = 30 mV p-p 300 µs VINH = 150 mV p-p 4 ms HILO GAIN RANGE INTERFACE (PIN HILO) Logic Level to Select HI Gain Range 2.25 5 V Logic Level to Select LO Gain Range 0 1.0 V Input Resistance 50 kΩ OUTPUT CLAMP INTERFACE (PIN RCLMP; HI OR LO GAIN) Accuracy HILO = LO RCLMP = 2.74 kΩ, VOUT = 1 V p-p (clamped) ±50 mV HILO = HI RCLMP = 2.21 kΩ, VOUT = 1 V p-p (clamped) ±75 mV MODE INTERFACE (PIN MODE) Logic Level for Positive Gain Slope 0 1.0 V Logic Level for Negative Gain Slope 2.25 5 V Input Resistance 200 kΩ POWER SUPPLY (PIN VPS1, PIN VPS2, PIN VPSV, PIN VPSL, PIN VPOS) Supply Voltage 4.5 5.0 5.5 V Quiescent Current per Channel AD8331 20 25 mA AD8332 22 27.5 32 mA AD8334 24 29.5 34 Power Dissipation per Channel No signal AD8331 125 mW AD8332, AD8334 138 mW Power-Down Current VGA and LNA disabled AD8331 50 240 400 µA AD8332 50 300 600 µA AD8334 50 600 1200 µA LNA Current AD8331 (ENBL) Each channel 7.5 11 15 mA AD8332, AD8334 (ENBL) Each channel 7.5 12 15 mA VGA Current AD8331 (ENBV) 7.5 14 20 mA AD8332, AD8334 (ENBV) 7.5 17 20 mA PSRR VGAIN = 0 V, f = 100 kHz −68 dB 1 All dBm values are referred to 50 Ω. 2 The absolute gain refers to the theoretical gain expression in Equation 1. 3 Best-fit to linear-in-dB curve. 4 The current is limited to ±1 mA typical. Rev. I | Page 6 of 55 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS MEASUREMENT CONSIDERATIONS THEORY OF OPERATION OVERVIEW LOW NOISE AMPLIFIER (LNA) Active Impedance Matching LNA Noise VARIABLE GAIN AMPLIFIER X-AMP VGA Gain Control VGA Noise Common-Mode Biasing POSTAMPLIFIER Noise Output Clamping APPLICATIONS INFORMATION LNA—EXTERNAL COMPONENTS Gain Input VCM Input Logic Inputs—ENB, MODE, and HILO Optional Output Voltage Limiting Output Decoupling DRIVING ADCs OVERLOAD OPTIONAL INPUT OVERLOAD PROTECTION LAYOUT, GROUNDING, AND BYPASSING MULTIPLE INPUT MATCHING DISABLING THE LNA ULTRASOUND TGC APPLICATION HIGH DENSITY QUAD LAYOUT AD8331 EVALUATION BOARD GENERAL DESCRIPTION USER-SUPPLIED OPTIONAL COMPONENTS MEASUREMENT SETUP BOARD LAYOUT AD8331 EVALUATION BOARD SCHEMATICS AD8331 EVALUATION BOARD PCB LAYERS AD8332 EVALUATION BOARD GENERAL DESCRIPTION USER-SUPPLIED OPTIONAL COMPONENTS MEASUREMENT SETUP BOARD LAYOUT EVALUATION BOARD SCHEMATICS AD8332 EVALUATION BOARD PCB LAYERS AD8334 EVALUATION BOARD GENERAL DESCRIPTION CONFIGURING THE INPUT IMPEDANCE Driving the VGA from an External Source or Using the LNA to Drive an External Load Using the Clamp Circuit Viewing Signals MEASUREMENT SETUP BOARD LAYOUT EVALUATION BOARD SCHEMATICS AD8334 EVALUATION BOARD PCB LAYERS OUTLINE DIMENSIONS ORDERING GUIDE
