Datasheet AD8336 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | General-Purpose, −55°C to +125°C, Wide Bandwidth, DC-Coupled VGA |
| Páginas / Página | 27 / 5 — Data Sheet. AD8336. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. … |
| Revisión | F |
| Formato / tamaño de archivo | PDF / 802 Kb |
| Idioma del documento | Inglés |

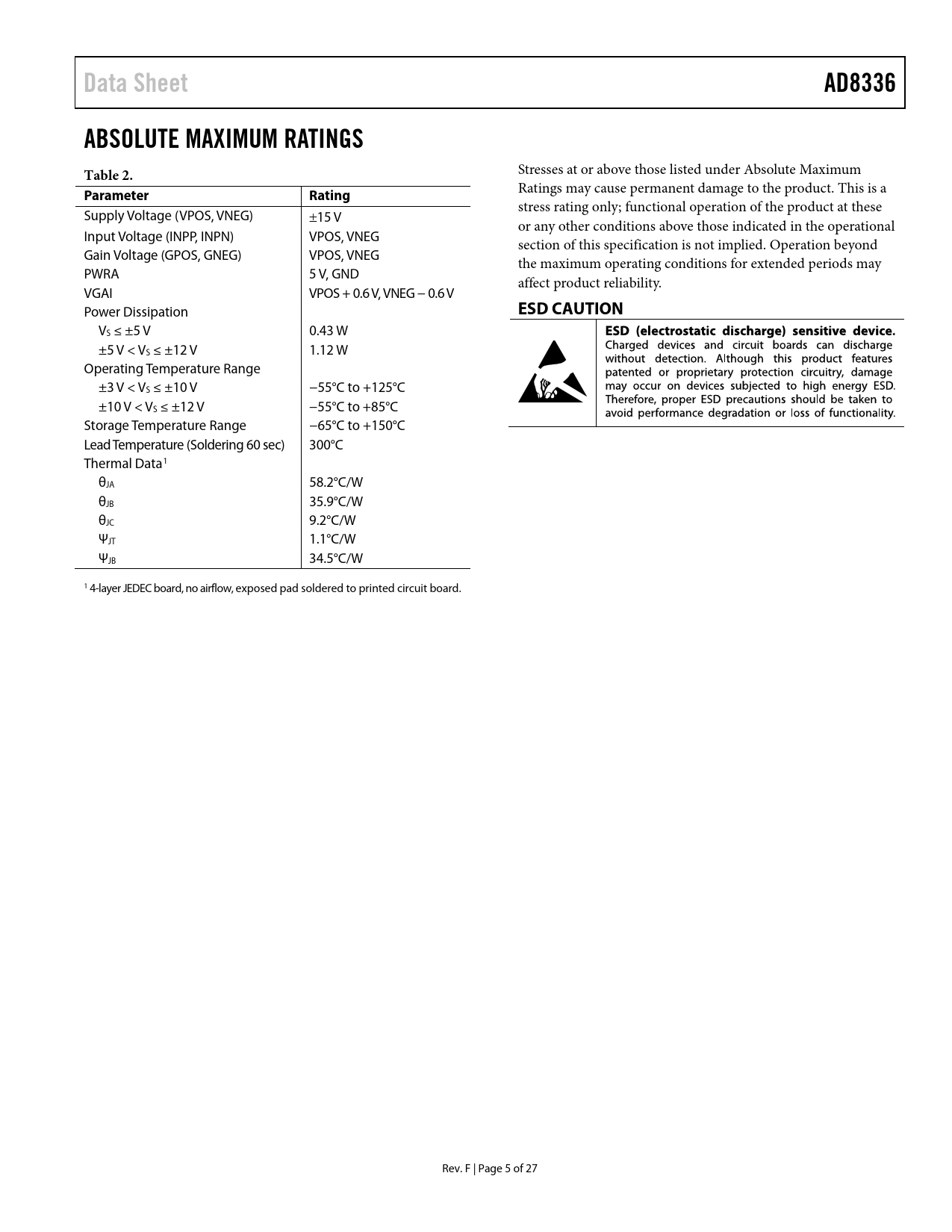

Data Sheet. AD8336. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet AD8336 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Supply Voltage (VPOS, VNEG) ±15 V or any other conditions above those indicated in the operational Input Voltage (INPP, INPN) VPOS, VNEG section of this specification is not implied. Operation beyond Gain Voltage (GPOS, GNEG) VPOS, VNEG the maximum operating conditions for extended periods may PWRA 5 V, GND affect product reliability. VGAI VPOS + 0.6 V, VNEG − 0.6 V Power Dissipation
