Datasheet LT6658 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | Precision Dual Output, High Current, Low Noise, Voltage Reference |
| Páginas / Página | 44 / 5 — AVAILABLE OPTIONS. OUTPUT VOLTAGE. INITIAL ACCURACY. TEMPERATURE. … |
| Revisión | C |
| Formato / tamaño de archivo | PDF / 4.2 Mb |
| Idioma del documento | Inglés |
AVAILABLE OPTIONS. OUTPUT VOLTAGE. INITIAL ACCURACY. TEMPERATURE. COEFFICIENT. ORDER PART NUMBER **. SPECIFIED JUNCTION
Línea de modelo para esta hoja de datos
- LT6658AHDE-3#TRPBF LT6658AHDE-3.3#TRPBF LT6658AHDE-5#TRPBF LT6658AHMSE-1.2#PBF LT6658AHMSE-1.2#TRPBF LT6658AHMSE-1.8#PBF LT6658AHMSE-1.8#TRPBF LT6658AHMSE-2.5#PBF LT6658AHMSE-2.5#TRPBF LT6658AHMSE-3#PBF LT6658AHMSE-3#TRPBF LT6658AHMSE-3.3#PBF LT6658AHMSE-3.3#TRPBF LT6658AHMSE-5#PBF LT6658AHMSE-5#TRPBF LT6658AIMSE-1.2#PBF LT6658AIMSE-1.2#TRPBF LT6658AIMSE-2.5#PBF LT6658AIMSE-2.5#TRPBF LT6658AIMSE-3#PBF LT6658AIMSE-3#TRPBF LT6658AIMSE-3.3#PBF LT6658AIMSE-3.3#TRPBF LT6658AIMSE-5#PBF LT6658AIMSE-5#TRPBF LT6658BHDE-2.5#TRPBF LT6658BHDE-3#TRPBF LT6658BHDE-3.3#TRPBF LT6658BHDE-5#TRPBF LT6658BHMSE-1.2#PBF LT6658BHMSE-1.2#TRPBF LT6658BHMSE-1.8#PBF LT6658BHMSE-1.8#TRPBF LT6658BHMSE-2.5#PBF LT6658BHMSE-2.5#TRPBF LT6658BHMSE-3#PBF LT6658BHMSE-3#TRPBF LT6658BHMSE-3.3#PBF LT6658BHMSE-3.3#TRPBF LT6658BHMSE-5#PBF LT6658BIMSE-1.2#PBF LT6658BIMSE-1.2#TRPBF LT6658BIMSE-1.8#PBF LT6658BIMSE-1.8#TRPBF LT6658BIMSE-2.5#PBF LT6658BIMSE-2.5#TRPBF LT6658BIMSE-3#PBF LT6658BIMSE-3#TRPBF LT6658BIMSE-3.3#PBF LT6658BIMSE-3.3#TRPBF LT6658BIMSE-5#PBF LT6658BIMSE-5#TRPBF
Versión de texto del documento
LT6658

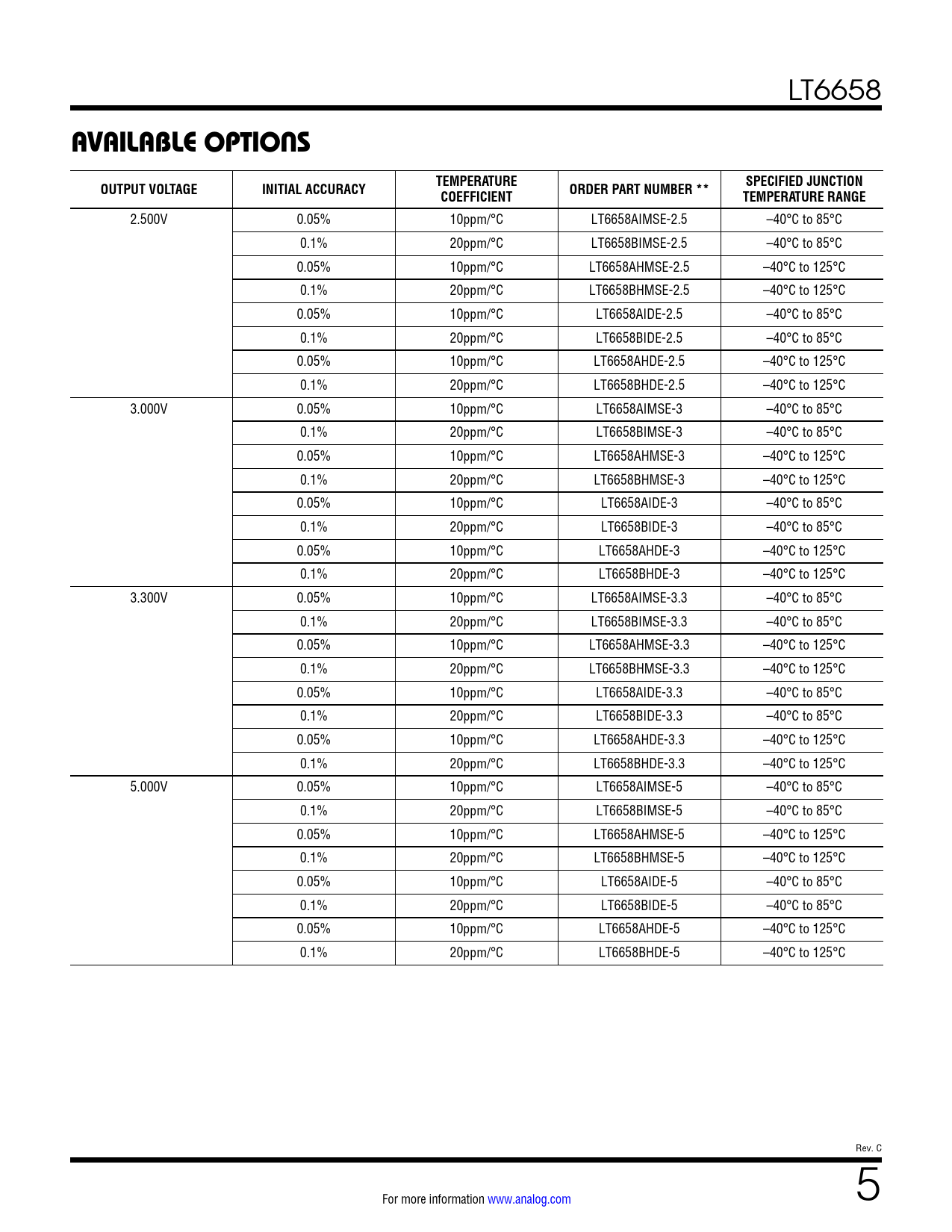

AVAILABLE OPTIONS OUTPUT VOLTAGE INITIAL ACCURACY TEMPERATURE COEFFICIENT ORDER PART NUMBER ** SPECIFIED JUNCTION TEMPERATURE RANGE
2.500V 0.05% 10ppm/°C LT6658AIMSE-2.5 –40°C to 85°C 0.1% 20ppm/°C LT6658BIMSE-2.5 –40°C to 85°C 0.05% 10ppm/°C LT6658AHMSE-2.5 –40°C to 125°C 0.1% 20ppm/°C LT6658BHMSE-2.5 –40°C to 125°C 0.05% 10ppm/°C LT6658AIDE-2.5 –40°C to 85°C 0.1% 20ppm/°C LT6658BIDE-2.5 –40°C to 85°C 0.05% 10ppm/°C LT6658AHDE-2.5 –40°C to 125°C 0.1% 20ppm/°C LT6658BHDE-2.5 –40°C to 125°C 3.000V 0.05% 10ppm/°C LT6658AIMSE-3 –40°C to 85°C 0.1% 20ppm/°C LT6658BIMSE-3 –40°C to 85°C 0.05% 10ppm/°C LT6658AHMSE-3 –40°C to 125°C 0.1% 20ppm/°C LT6658BHMSE-3 –40°C to 125°C 0.05% 10ppm/°C LT6658AIDE-3 –40°C to 85°C 0.1% 20ppm/°C LT6658BIDE-3 –40°C to 85°C 0.05% 10ppm/°C LT6658AHDE-3 –40°C to 125°C 0.1% 20ppm/°C LT6658BHDE-3 –40°C to 125°C 3.300V 0.05% 10ppm/°C LT6658AIMSE-3.3 –40°C to 85°C 0.1% 20ppm/°C LT6658BIMSE-3.3 –40°C to 85°C 0.05% 10ppm/°C LT6658AHMSE-3.3 –40°C to 125°C 0.1% 20ppm/°C LT6658BHMSE-3.3 –40°C to 125°C 0.05% 10ppm/°C LT6658AIDE-3.3 –40°C to 85°C 0.1% 20ppm/°C LT6658BIDE-3.3 –40°C to 85°C 0.05% 10ppm/°C LT6658AHDE-3.3 –40°C to 125°C 0.1% 20ppm/°C LT6658BHDE-3.3 –40°C to 125°C 5.000V 0.05% 10ppm/°C LT6658AIMSE-5 –40°C to 85°C 0.1% 20ppm/°C LT6658BIMSE-5 –40°C to 85°C 0.05% 10ppm/°C LT6658AHMSE-5 –40°C to 125°C 0.1% 20ppm/°C LT6658BHMSE-5 –40°C to 125°C 0.05% 10ppm/°C LT6658AIDE-5 –40°C to 85°C 0.1% 20ppm/°C LT6658BIDE-5 –40°C to 85°C 0.05% 10ppm/°C LT6658AHDE-5 –40°C to 125°C 0.1% 20ppm/°C LT6658BHDE-5 –40°C to 125°C Rev. C For more information www.analog.com 5 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Available Options Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
