Datasheet AD7766-KGD (Analog Devices) - 8
| Fabricante | Analog Devices |
| Descripción | 24-Bit, 8.5 mW, 109 dB, 128 kSPS/64 kSPS/32 kSPS ADCs |
| Páginas / Página | 11 / 8 — AD7766-2-KGD. Known Good Die. ABSOLUTE MAXIMUM RATINGS Table 4. … |
| Formato / tamaño de archivo | PDF / 242 Kb |
| Idioma del documento | Inglés |

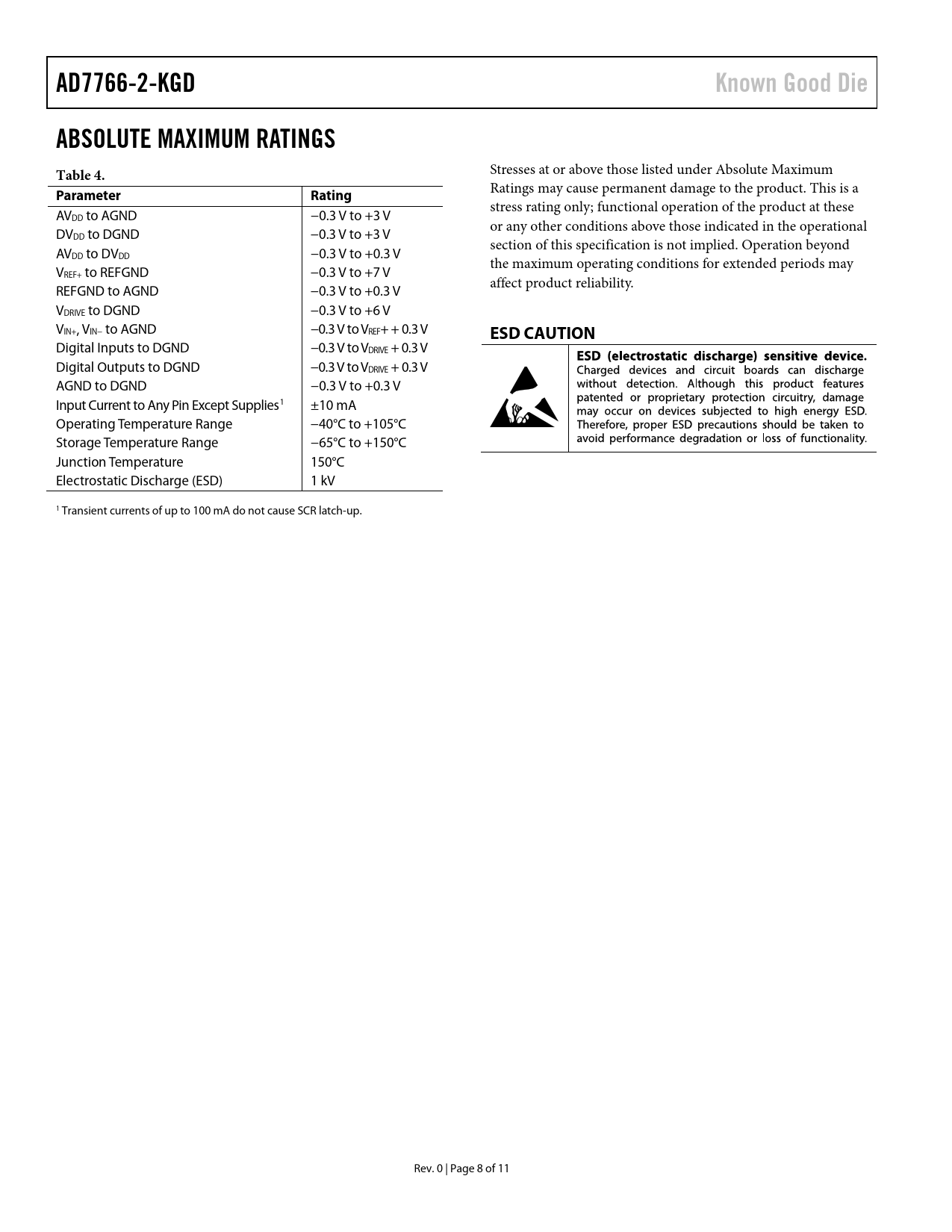

AD7766-2-KGD. Known Good Die. ABSOLUTE MAXIMUM RATINGS Table 4. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD7766-2-KGD Known Good Die ABSOLUTE MAXIMUM RATINGS Table 4.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these AVDD to AGND −0.3 V to +3 V or any other conditions above those indicated in the operational DVDD to DGND −0.3 V to +3 V section of this specification is not implied. Operation beyond AVDD to DVDD −0.3 V to +0.3 V the maximum operating conditions for extended periods may VREF+ to REFGND −0.3 V to +7 V affect product reliability. REFGND to AGND −0.3 V to +0.3 V VDRIVE to DGND −0.3 V to +6 V VIN+, VIN− to AGND −0.3 V to VREF+ + 0.3 V
ESD CAUTION
Digital Inputs to DGND −0.3 V to VDRIVE + 0.3 V Digital Outputs to DGND −0.3 V to VDRIVE + 0.3 V AGND to DGND −0.3 V to +0.3 V Input Current to Any Pin Except Supplies1 ±10 mA Operating Temperature Range −40°C to +105°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C Electrostatic Discharge (ESD) 1 kV 1 Transient currents of up to 100 mA do not cause SCR latch-up. Rev. 0 | Page 8 of 11 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM RELATED DEVICES TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS Timing Diagrams ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
