Datasheet RH118 (Analog Devices) - 3
| Fabricante | Analog Devices |
| Descripción | Precision, High Speed Operational Amplifier |
| Páginas / Página | 4 / 3 — ELECTRICAL CHARACTERISTICS (Continued). Note 1:. Note 4:. Note 5:. Note … |
| Revisión | C |
| Formato / tamaño de archivo | PDF / 671 Kb |
| Idioma del documento | Inglés |

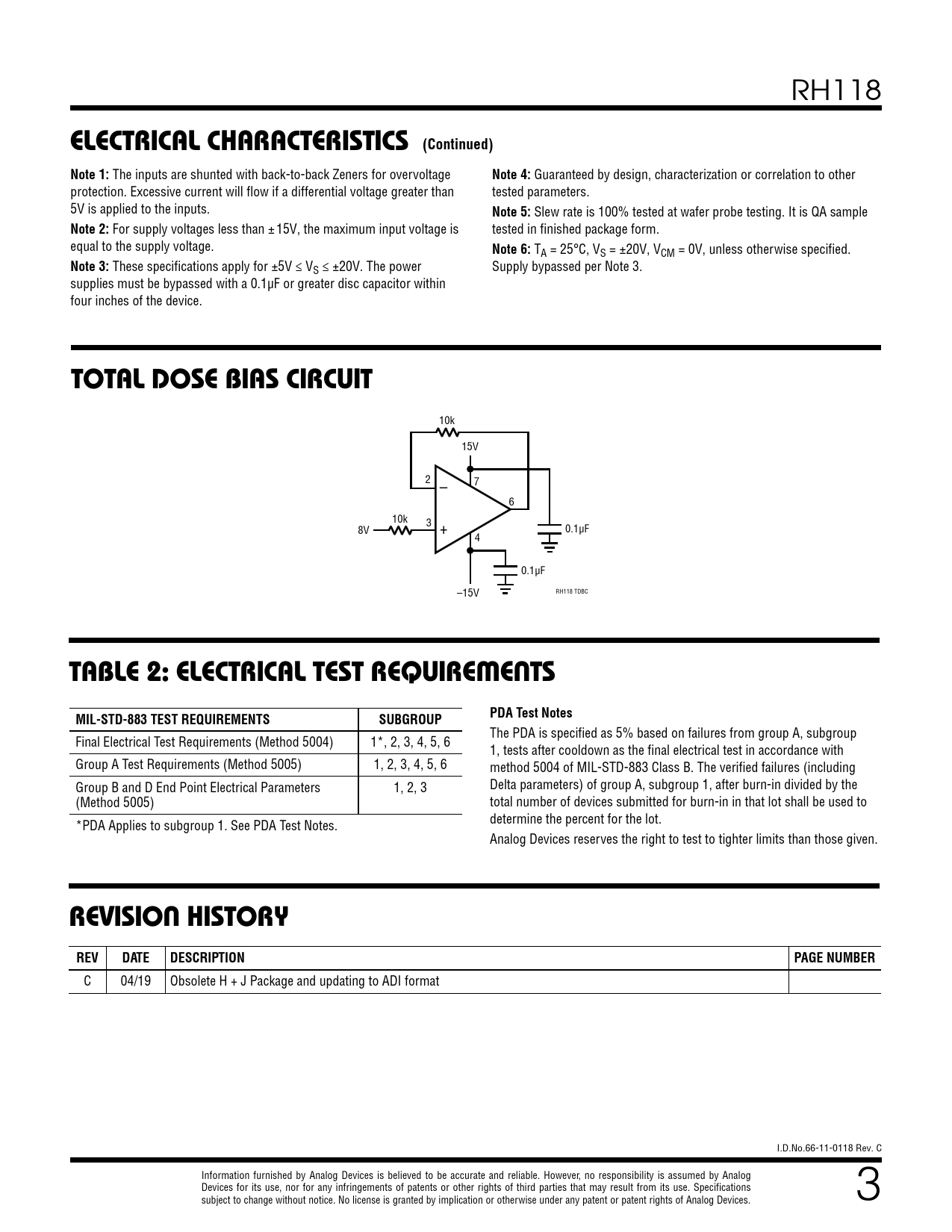

ELECTRICAL CHARACTERISTICS (Continued). Note 1:. Note 4:. Note 5:. Note 2:. Note 6:. Note 3:. TOTAL DOSE BIAS CIRCUIT
Línea de modelo para esta hoja de datos
Versión de texto del documento
RH118
ELECTRICAL CHARACTERISTICS (Continued) Note 1:
The inputs are shunted with back-to-back Zeners for overvoltage
Note 4:
Guaranteed by design, characterization or correlation to other protection. Excessive current will flow if a differential voltage greater than tested parameters. 5V is applied to the inputs.
Note 5:
Slew rate is 100% tested at wafer probe testing. It is QA sample
Note 2:
For supply voltages less than ±15V, the maximum input voltage is tested in finished package form. equal to the supply voltage.
Note 6:
TA = 25°C, VS = ±20V, VCM = 0V, unless otherwise specified.
Note 3:
These specifications apply for ±5V ≤ VS ≤ ±20V. The power Supply bypassed per Note 3. supplies must be bypassed with a 0.1µF or greater disc capacitor within four inches of the device.
TOTAL DOSE BIAS CIRCUIT
10k 15V 2 – 7 6 10k 3 8V + 0.1µF 4 0.1µF –15V RH118 TDBC
TABLE 2: ELECTRICAL TEST REQUIREMENTS MIL-STD-883 TEST REQUIREMENTS SUBGROUP PDA Test Notes
The PDA is specified as 5% based on failures from group A, subgroup Final Electrical Test Requirements (Method 5004) 1*, 2, 3, 4, 5, 6 1, tests after cooldown as the final electrical test in accordance with Group A Test Requirements (Method 5005) 1, 2, 3, 4, 5, 6 method 5004 of MIL-STD-883 Class B. The verified failures (including Group B and D End Point Electrical Parameters 1, 2, 3 Delta parameters) of group A, subgroup 1, after burn-in divided by the (Method 5005) total number of devices submitted for burn-in in that lot shall be used to *PDA Applies to subgroup 1. See PDA Test Notes. determine the percent for the lot. Analog Devices reserves the right to test to tighter limits than those given.
REVISION HISTORY REV DATE DESCRIPTION PAGE NUMBER
C 04/19 Obsolete H + J Package and updating to ADI format I.D.No.66-11-0118 Rev. C Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications For more information www.a subject to change without notice. No license is granted by implication or other nalog.com wise under any patent or patent rights of Analog Devices. 3 Document Outline Description Burn-In Circuit Package/Order Information Absolute Maximum Ratings Table 1: Electrical Characteristics Table 1A: Electrical Characteristics Electrical Characteristics Total Dose Bias Circuit Table 2: Electrical Test Requirements Revision History
