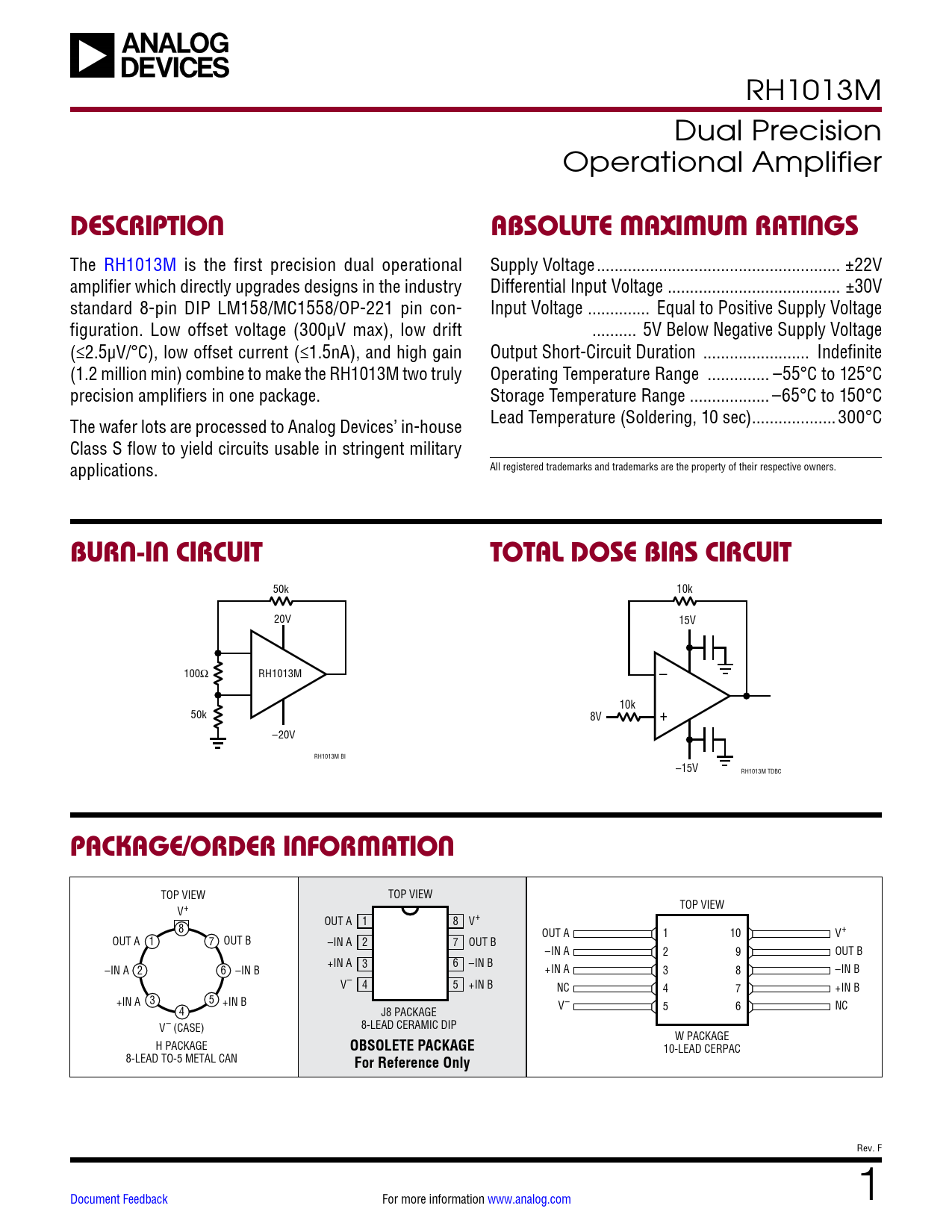

RH1013M Dual Precision Operational Amplifier
DESCRIPTION ABSOLUTE MAXIMUM RATINGS
The RH1013M is the first precision dual operational Supply Voltage ... ±22V amplifier which directly upgrades designs in the industry Differential Input Voltage ... ±30V standard 8-pin DIP LM158/MC1558/OP-221 pin con- Input Voltage .. Equal to Positive Supply Voltage figuration. Low offset voltage (300µV max), low drift .. 5V Below Negative Supply Voltage (≤2.5µV/°C), low offset current (≤1.5nA), and high gain Output Short-Circuit Duration .. Indefinite (1.2 million min) combine to make the RH1013M two truly Operating Temperature Range .. –55°C to 125°C precision amplifiers in one package. Storage Temperature Range .. –65°C to 150°C The wafer lots are processed to Analog Devices’ in-house Lead Temperature (Soldering, 10 sec) ...300°C Class S flow to yield circuits usable in stringent military applications. All registered trademarks and trademarks are the property of their respective owners.
BURN-IN CIRCUIT TOTAL DOSE BIAS CIRCUIT
50k 10k 20V 15V 100Ω RH1013M – 10k 50k 8V + –20V RH1013M BI –15V RH1013M TDBC
PACKAGE/ORDER INFORMATION
TOP VIEW TOP VIEW TOP VIEW V+ OUT A 1 8 V+ 8 OUT A 1 10 V+ OUT A 1 7 OUT B –IN A 2 7 OUT B –IN A 2 9 OUT B +IN A 3 6 –IN B –IN A 2 6 –IN B +IN A 3 8 –IN B V– 4 5 +IN B NC 4 7 +IN B +IN A 3 5 +IN B 4 J8 PACKAGE V– 5 6 NC V– (CASE) 8-LEAD CERAMIC DIP W PACKAGE H PACKAGE
OBSOLETE PACKAGE
10-LEAD CERPAC 8-LEAD TO-5 METAL CAN
For Reference Only
Rev. F Document Feedback For more information www.analog.com 1 Document Outline Description Burn-In Circuit Package/Order Information Absolute Maximum Ratings Total Dose Bias Circuit Table 1: Electrical characteristics Table 1a: Electrical characteristics Table 2: Electrical Test Requirements Typical Performance Characteristics Revision History Rad Hard
