Datasheet IRFF9120, JANTX2N6845, JANTXV2N6845 (International Rectifier) - 7
| Fabricante | International Rectifier |
| Descripción | 100V, P-CHANNEL MOSFET TO-205AF (TO-39) |
| Páginas / Página | 7 / 7 — IRFF9120. Foot Notes:. Case Outline and Dimensions —TO-205AF. IR WORLD … |
| Formato / tamaño de archivo | PDF / 134 Kb |
| Idioma del documento | Inglés |
IRFF9120. Foot Notes:. Case Outline and Dimensions —TO-205AF. IR WORLD HEADQUARTERS:. IR EUROPEAN REGIONAL CENTRE:. IR CANADA:
Línea de modelo para esta hoja de datos
Versión de texto del documento
IRFF9120 Foot Notes:
➂ ➀ I Repetitive Rating; Pulse width limited by SD ≤ -4.0A, di/dt ≤ -110A/µs, V maximum junction temperature. DD≤ -100V, TJ ≤ 150°C ➁ Suggested RG = 7.5 V Ω DD = -25V, starting TJ = 25°C, Peak IL = -4.0A, ➃ Pulse width ≤ 300 µs; Duty Cycle ≤ 2%

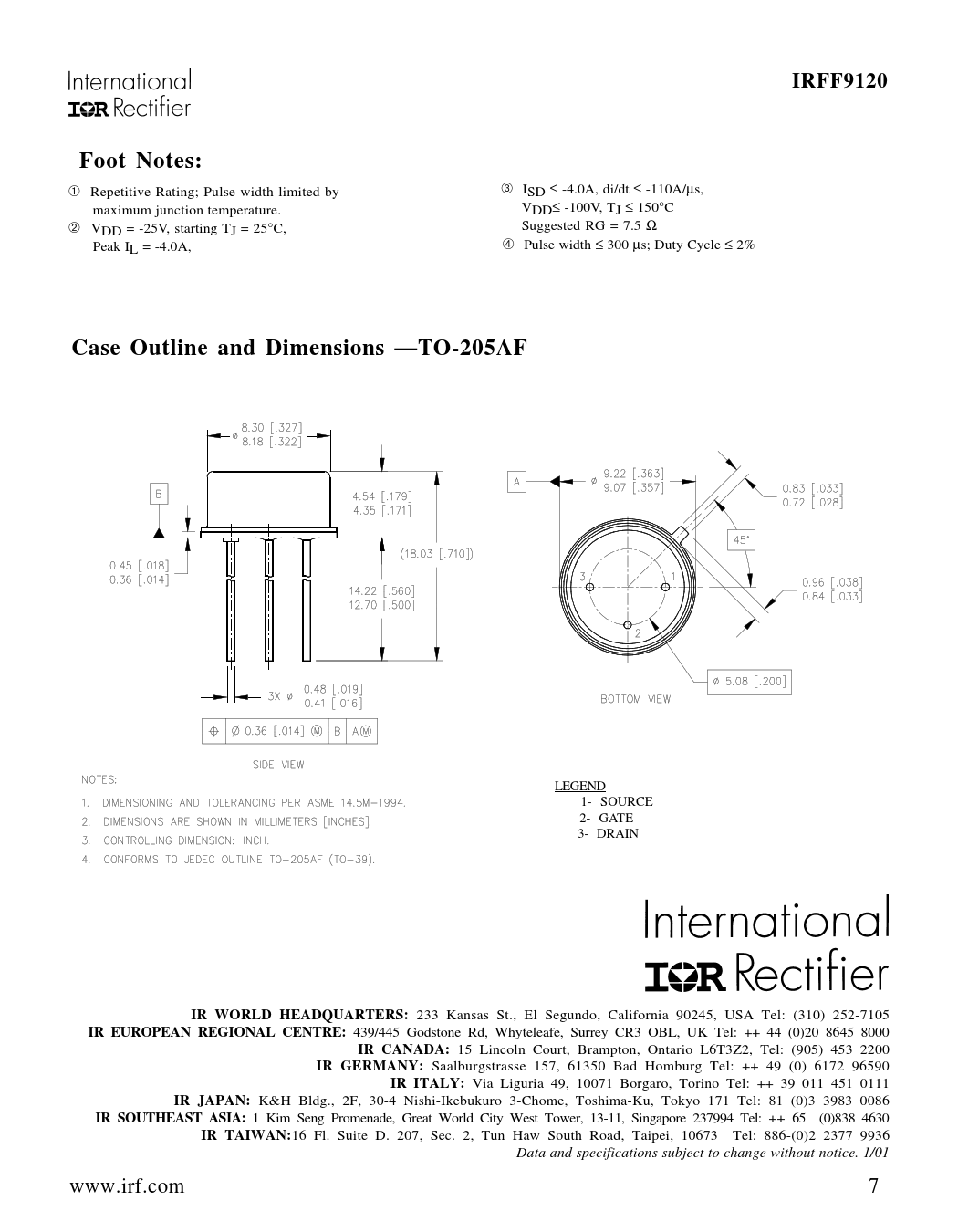

Case Outline and Dimensions —TO-205AF
LEGEND 1- SOURCE 2- GATE 3- DRAIN
