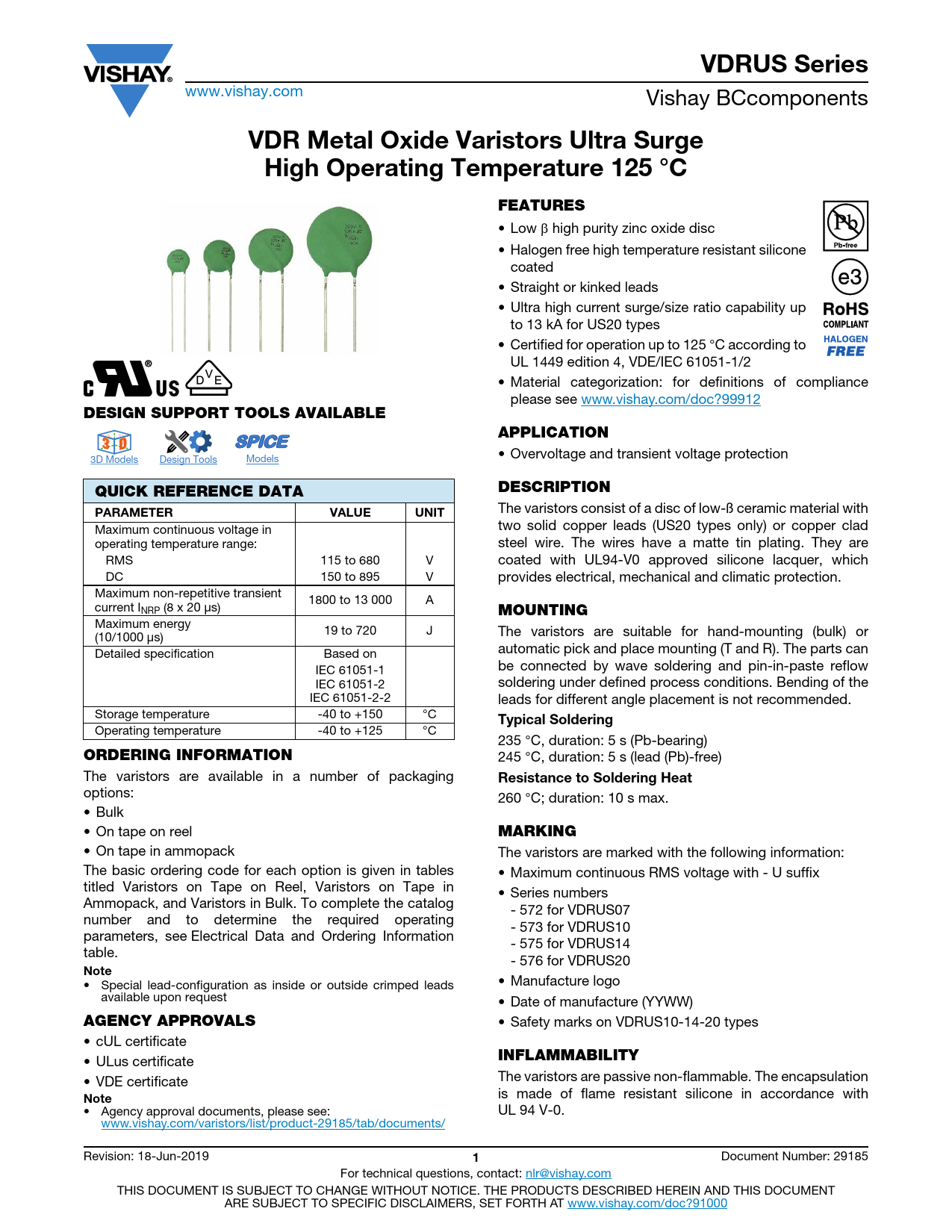

VDRUS Series
www.vishay.com Vishay BCcomponents
VDR Metal Oxide Varistors Ultra Surge High Operating Temperature 125 °C FEATURES
• Low  high purity zinc oxide disc • Halogen free high temperature resistant silicone coated • Straight or kinked leads • Ultra high current surge/size ratio capability up to 13 kA for US20 types • Certified for operation up to 125 °C according to UL 1449 edition 4, VDE/IEC 61051-1/2 • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
DESIGN SUPPORT TOOLS AVAILABLE APPLICATION D 3 3 D
• Overvoltage and transient voltage protection 3D Models Design Tools Models
DESCRIPTION QUICK REFERENCE DATA
The varistors consist of a disc of low-ß ceramic material with
PARAMETER VALUE UNIT
two solid copper leads (US20 types only) or copper clad Maximum continuous voltage in operating temperature range: steel wire. The wires have a matte tin plating. They are RMS 115 to 680 V coated with UL94-V0 approved silicone lacquer, which DC 150 to 895 V provides electrical, mechanical and climatic protection. Maximum non-repetitive transient 1800 to 13 000 A current INRP (8 x 20 μs)
MOUNTING
Maximum energy  19 to 720 J The varistors are suitable for hand-mounting (bulk) or (10/1000 μs) automatic pick and place mounting (T and R). The parts can Detailed specification Based on be connected by wave soldering and pin-in-paste reflow IEC 61051-1 IEC 61051-2 soldering under defined process conditions. Bending of the IEC 61051-2-2 leads for different angle placement is not recommended. Storage temperature -40 to +150 °C
Typical Soldering
Operating temperature -40 to +125 °C 235 °C, duration: 5 s (Pb-bearing)
ORDERING INFORMATION
245 °C, duration: 5 s (lead (Pb)-free) The varistors are available in a number of packaging
Resistance to Soldering Heat
options: 260 °C; duration: 10 s max. • Bulk • On tape on reel
MARKING
• On tape in ammopack The varistors are marked with the following information: The basic ordering code for each option is given in tables • Maximum continuous RMS voltage with - U suffix titled Varistors on Tape on Reel, Varistors on Tape in • Series numbers Ammopack, and Varistors in Bulk. To complete the catalog - 572 for VDRUS07 number and to determine the required operating - 573 for VDRUS10 parameters, see Electrical Data and Ordering Information - 575 for VDRUS14 table. - 576 for VDRUS20
Note
• Special lead-configuration as inside or outside crimped leads • Manufacture logo available upon request • Date of manufacture (YYWW)
AGENCY APPROVALS
• Safety marks on VDRUS10-14-20 types • cUL certificate
INFLAMMABILITY
• ULus certificate • VDE certificate The varistors are passive non-flammable. The encapsulation
Note
is made of flame resistant silicone in accordance with • Agency approval documents, please see: UL 94 V-0. www.vishay.com/varistors/list/product-29185/tab/documents/ Revision: 18-Jun-2019
