CONFIDENTIAL. KP276C1505. Digital Absolute Pressure Sensor. Functional description. 1.3. Block Diagram. Figure 2. NCS. CLK. NTC. SDI. SDO
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 5

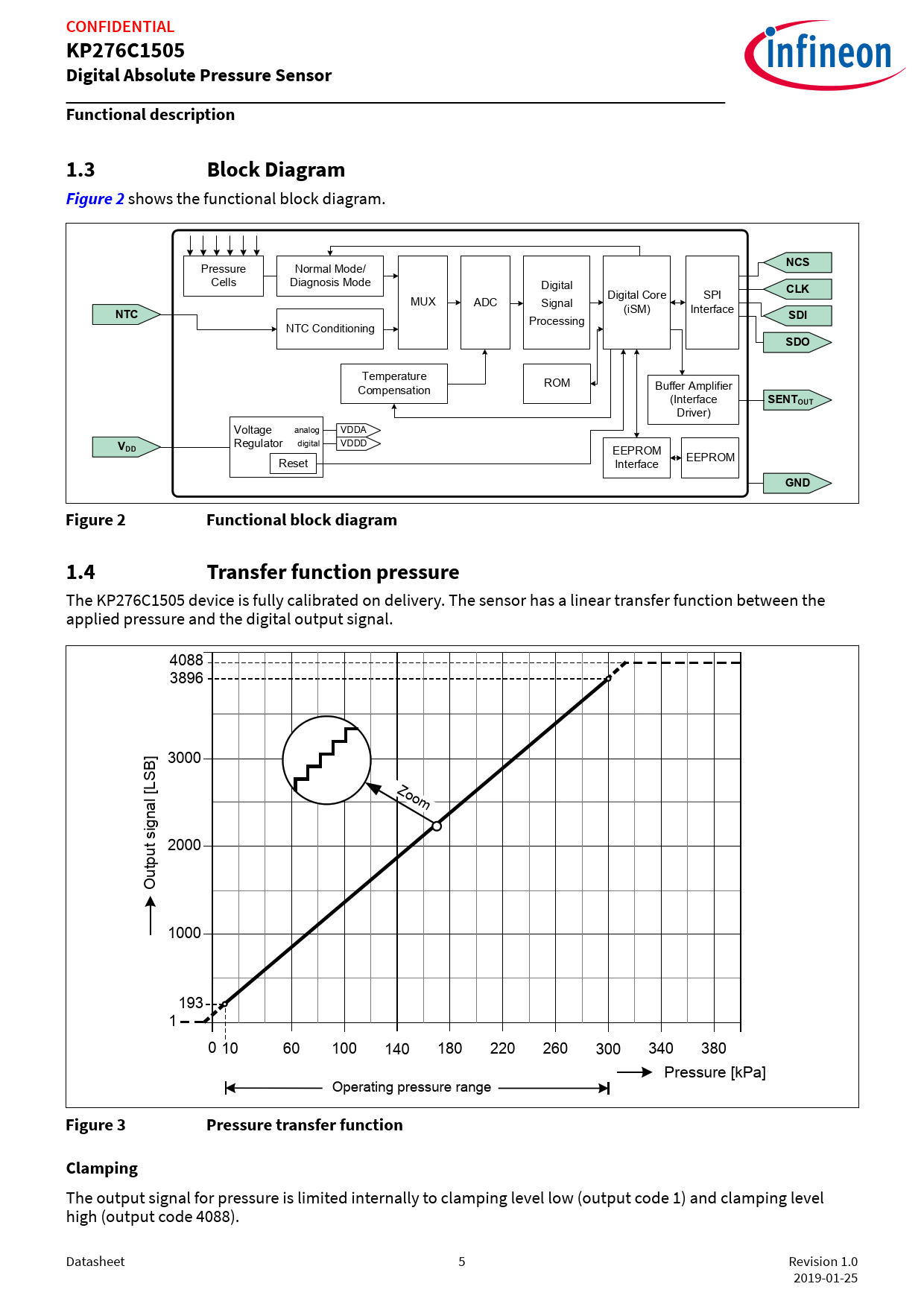

CONFIDENTIAL KP276C1505 Digital Absolute Pressure Sensor Functional description 1.3 Block Diagram Figure 2
shows the functional block diagram.
NCS
Pressure Normal Mode/ Cells Diagnosis Mode Digital
CLK
Digital Core SPI MUX ADC Signal (iSM) Interface
NTC
Processing
SDI
NTC Conditioning
SDO
Temperature ROM Compensation Buffer Amplifier (Interface
SENTOUT
Driver) Voltage analog VDDA Regulator digital VDDD
VDD
EEPROM EEPROM Reset Interface
GND Figure 2 Functional block diagram 1.4 Transfer function pressure
The KP276C1505 device is fully calibrated on delivery. The sensor has a linear transfer function between the applied pressure and the digital output signal. 4088 3896 3000 [LSB] Zoom 2000 Output signal 1000 193 1 0 10 60 100 140 180 220 260 300 340 380 Pressure [kPa] Operating pressure range
Figure 3 Pressure transfer function Clamping
The output signal for pressure is limited internally to clamping level low (output code 1) and clamping level high (output code 4088). Datasheet 5 Revision 1.0 2019-01-25 Document Outline dTurboTMAP with SENT Output and Temperature Sensor Interface Features Potential applications Product validation Description Table of contents 1 Functional description 1.1 Pin configuration 1.2 Pin description 1.3 Block Diagram 1.4 Transfer function pressure 1.4.1 Pressure transfer function characteristics 1.4.2 Pressure accuracy 1.5 Transfer function temperature 1.5.1 Temperature transfer function characteristics 1.6 SENT interface 1.6.1 Physical layer 1.6.2 Data link layer 1.6.2.1 Nibble specification 1.6.2.2 Status and communication nibble 1.6.2.3 Enhanced serial message format 1.6.2.4 Enhanced serial message data 1.6.3 Pressure channel output codes 1.6.4 Temperature channel output codes 1.6.5 Diagnostic Error Codes 1.6.5.1 Signal out of range 1.6.5.2 Diag1 1.6.5.3 Diag2 1.6.5.4 EEPROM Check 1.6.6 Definition of Pressure signal path latency 1.7 External temperature sensor 1.7.1 Linearization of the external temperature sensor transfer function 1.7.2 Accuracy for NTC signal processing 2 Specification 2.1 Application circuit example 2.2 Application circuit example for EMC 2.3 Absolute maximum ratings 2.4 Operating range 2.5 Characteristics 3 Package information 3.1 PG-DSOF-8-162 Outline 3.2 Identification code Revision history Disclaimer
