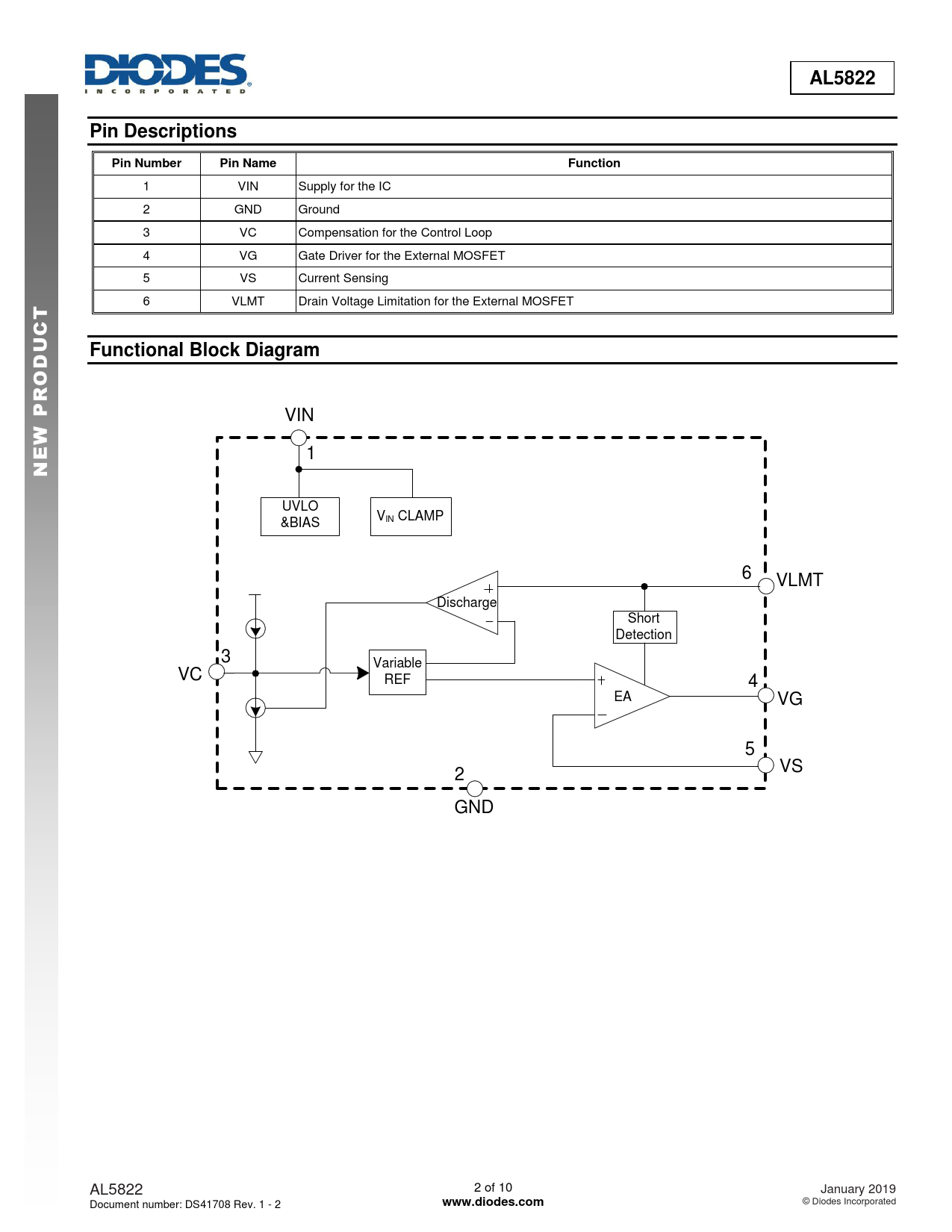

AL5822. Pin Descriptions. Pin Number. Pin Name. Function. U D. Functional Block Diagram. R P. W E. www.diodes.com
Línea de modelo para esta hoja de datos
Versión de texto del documento
AL5822 Pin Descriptions Pin Number Pin Name Function
1 VIN Supply for the IC 2 GND Ground 3 VC Compensation for the Control Loop 4 VG Gate Driver for the External MOSFET 5 VS Current Sensing
T
6 VLMT Drain Voltage Limitation for the External MOSFET
C U D Functional Block Diagram O R P
VIN
W E
1
N
UVLO V &BIAS IN CLAMP 6 VLMT Discharge Short Detection 3 Variable VC REF 4 EA VG 5 VS 2 GND AL5822 2 of 10 January 2019 Document number: DS41708 Rev. 1 - 2
