Performance Characteristics. Item. Table 1 – Ratings & Part Number Reference. Rated Current (A). Part
Línea de modelo para esta hoja de datos
- MPX1D0520L100 MPX1D0520L1R0 MPX1D0520L1R5 MPX1D0520L2R2 MPX1D0520L3R3 MPX1D0520L4R7 MPX1D0520L6R8 MPX1D0520LR15 MPX1D0520LR22 MPX1D0520LR33 MPX1D0520LR47 MPX1D0520LR68 MPX1D0530L100 MPX1D0530L150 MPX1D0530L1R0 MPX1D0530L1R5 MPX1D0530L220 MPX1D0530L2R2 MPX1D0530L3R3 MPX1D0530L4R7 MPX1D0530L6R8 MPX1D0530LR15 MPX1D0530LR22 MPX1D0530LR33 MPX1D0530LR47 MPX1D0530LR68 MPX1D0618L1R0 MPX1D0618L1R5 MPX1D0618L2R2 MPX1D0618L3R3 MPX1D0618L4R7 MPX1D0618LR10 MPX1D0618LR15 MPX1D0618LR22 MPX1D0618LR33 MPX1D0618LR47 MPX1D0618LR68 MPX1D0624L100 MPX1D0624L1R0 MPX1D0624L1R5 MPX1D0624L2R2 MPX1D0624L3R3 MPX1D0624L4R7 MPX1D0624L6R8 MPX1D0624LR10 MPX1D0624LR15 MPX1D0624LR22 MPX1D0624LR33 MPX1D0624LR47 MPX1D0624LR68 MPX1D0630L100 MPX1D0630L150 MPX1D0630L1R0 MPX1D0630L1R5 MPX1D0630L220 MPX1D0630L2R2 MPX1D0630L3R3 MPX1D0630L4R7 MPX1D0630L6R8 MPX1D0630LR10 MPX1D0630LR15 MPX1D0630LR22 MPX1D0630LR33 MPX1D0630LR47 MPX1D0630LR68 MPX1D0650L100 MPX1D0650L1R0 MPX1D0650L1R5 MPX1D0650L2R2 MPX1D0650L3R3 MPX1D0650L4R7 MPX1D0650L6R8 MPX1D0650LR68 MPX1D0830L100 MPX1D0830L150 MPX1D0830L1R0 MPX1D0830L1R5 MPX1D0830L220 MPX1D0830L2R2 MPX1D0830L330 MPX1D0830L3R3 MPX1D0830L4R7 MPX1D0830L6R8 MPX1D0830LR22 MPX1D0830LR33 MPX1D0830LR47 MPX1D0830LR68 MPX1D0840L100 MPX1D0840L150 MPX1D0840L1R0 MPX1D0840L1R5 MPX1D0840L220 MPX1D0840L2R2 MPX1D0840L330 MPX1D0840L3R3 MPX1D0840L470 MPX1D0840L4R7 MPX1D0840L6R8 MPX1D0840LR22 MPX1D0840LR33 MPX1D0840LR47 MPX1D0840LR68
Versión de texto del documento
SMD Inductors Metal Composite Power Inductors MPX

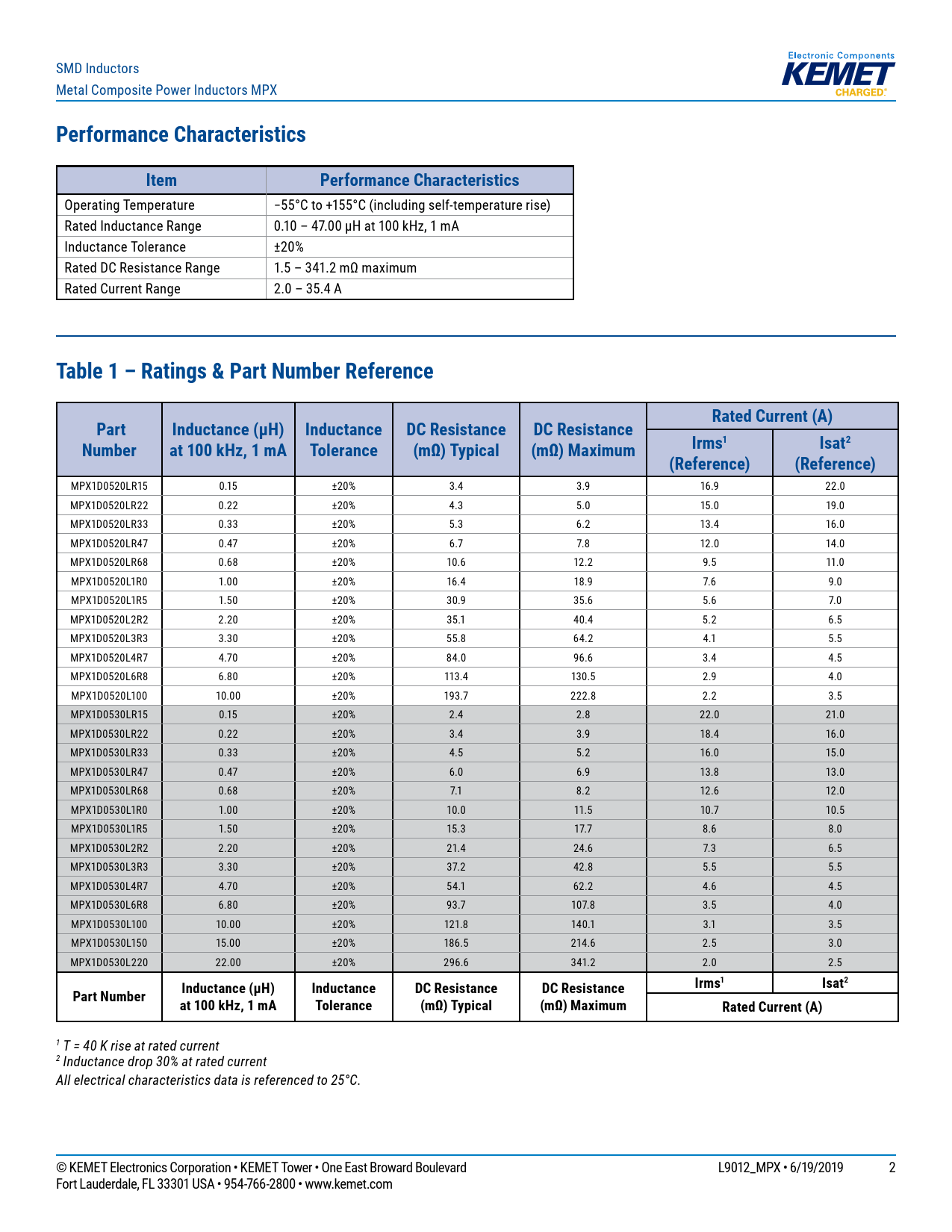

Performance Characteristics Item Performance Characteristics
Operating Temperature −55°C to +155°C (including self-temperature rise) Rated Inductance Range 0.10 – 47.00 µH at 100 kHz, 1 mA Inductance Tolerance ±20% Rated DC Resistance Range 1.5 – 341.2 mΩ maximum Rated Current Range 2.0 – 35.4 A
Table 1 – Ratings & Part Number Reference Rated Current (A) Part Inductance (µH) Inductance DC Resistance DC Resistance Number at 100 kHz, 1 mA Tolerance (mΩ) Typical (mΩ) Maximum Irms1 Isat2 (Reference) (Reference)
MPX1D0520LR15 0.15 ±20% 3.4 3.9 16.9 22.0 MPX1D0520LR22 0.22 ±20% 4.3 5.0 15.0 19.0 MPX1D0520LR33 0.33 ±20% 5.3 6.2 13.4 16.0 MPX1D0520LR47 0.47 ±20% 6.7 7.8 12.0 14.0 MPX1D0520LR68 0.68 ±20% 10.6 12.2 9.5 11.0 MPX1D0520L1R0 1.00 ±20% 16.4 18.9 7.6 9.0 MPX1D0520L1R5 1.50 ±20% 30.9 35.6 5.6 7.0 MPX1D0520L2R2 2.20 ±20% 35.1 40.4 5.2 6.5 MPX1D0520L3R3 3.30 ±20% 55.8 64.2 4.1 5.5 MPX1D0520L4R7 4.70 ±20% 84.0 96.6 3.4 4.5 MPX1D0520L6R8 6.80 ±20% 113.4 130.5 2.9 4.0 MPX1D0520L100 10.00 ±20% 193.7 222.8 2.2 3.5 MPX1D0530LR15 0.15 ±20% 2.4 2.8 22.0 21.0 MPX1D0530LR22 0.22 ±20% 3.4 3.9 18.4 16.0 MPX1D0530LR33 0.33 ±20% 4.5 5.2 16.0 15.0 MPX1D0530LR47 0.47 ±20% 6.0 6.9 13.8 13.0 MPX1D0530LR68 0.68 ±20% 7.1 8.2 12.6 12.0 MPX1D0530L1R0 1.00 ±20% 10.0 11.5 10.7 10.5 MPX1D0530L1R5 1.50 ±20% 15.3 17.7 8.6 8.0 MPX1D0530L2R2 2.20 ±20% 21.4 24.6 7.3 6.5 MPX1D0530L3R3 3.30 ±20% 37.2 42.8 5.5 5.5 MPX1D0530L4R7 4.70 ±20% 54.1 62.2 4.6 4.5 MPX1D0530L6R8 6.80 ±20% 93.7 107.8 3.5 4.0 MPX1D0530L100 10.00 ±20% 121.8 140.1 3.1 3.5 MPX1D0530L150 15.00 ±20% 186.5 214.6 2.5 3.0 MPX1D0530L220 22.00 ±20% 296.6 341.2 2.0 2.5
Irms1 Isat2 Part Number Inductance (µH) Inductance DC Resistance DC Resistance at 100 kHz, 1 mA Tolerance (mΩ) Typical (mΩ) Maximum Rated Current (A)
1 T = 40 K rise at rated current 2 Inductance drop 30% at rated current All electrical characteristics data is referenced to 25°C. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard L9012_MPX • 6/19/2019 2 Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
