Datasheet PI3A6386 (Diodes) - 3
| Fabricante | Diodes |
| Descripción | Usb Type-C Ultra-Low-Thd Audio and Data Switch Array |
| Páginas / Página | 9 / 3 — PI3A6386. Maximum Ratings. Note:. Recommended Operating Conditions. … |
| Formato / tamaño de archivo | PDF / 1.2 Mb |
| Idioma del documento | Inglés |

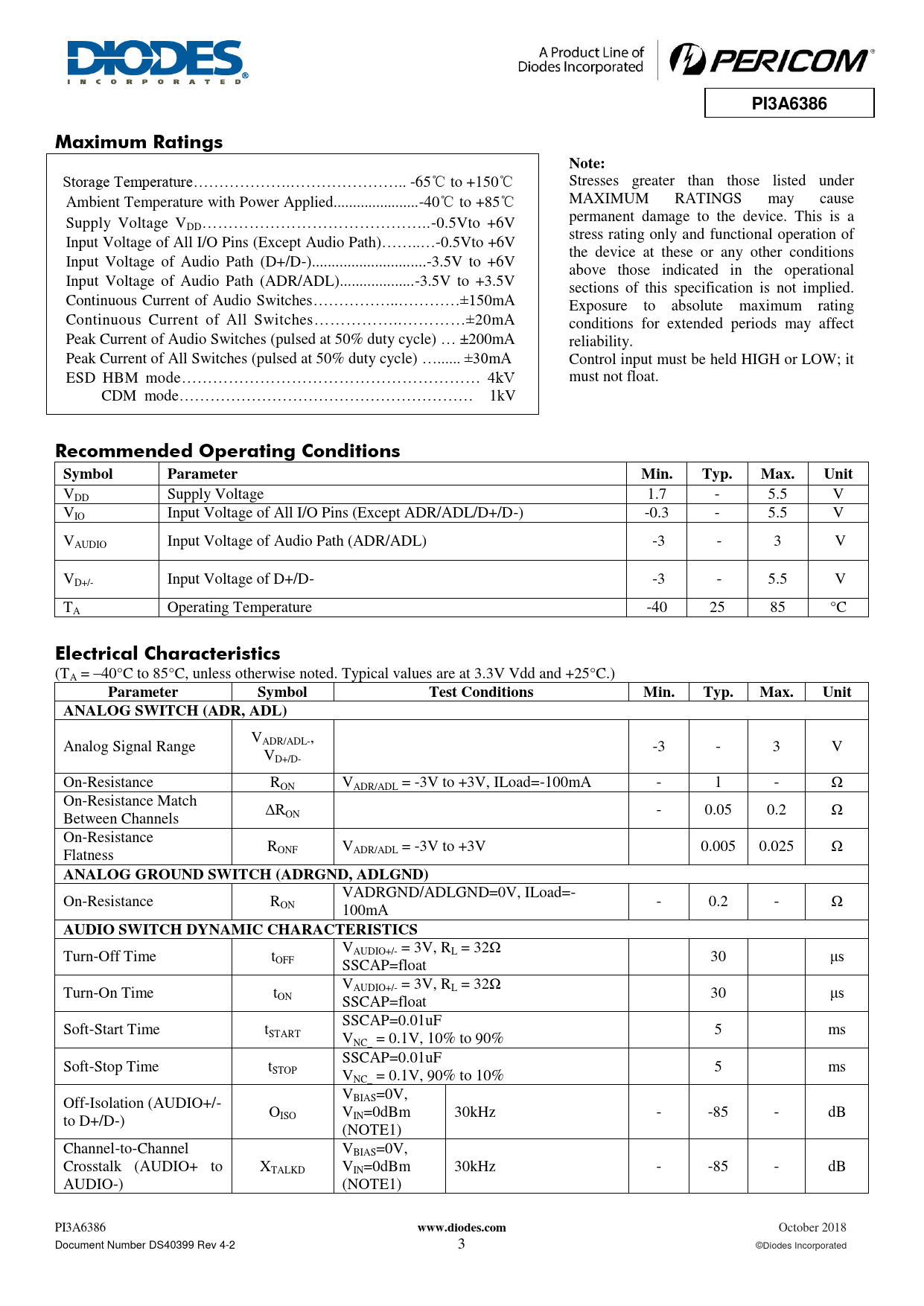

PI3A6386. Maximum Ratings. Note:. Recommended Operating Conditions. Symbol. Parameter. Min. Typ. Max. Unit. Electrical Characteristics
Línea de modelo para esta hoja de datos
Versión de texto del documento
PI3A6386 Maximum Ratings Note:
Storage Temperature……………….………………….. -65℃ to +150℃ Stresses greater than those listed under Ambient Temperature with Power Applied..-40℃ to +85℃ MAXIMUM RATINGS may cause Supply Voltage V …………………………………….. permanent damage to the device. This is a DD -0.5Vto +6V stress rating only and functional operation of Input Voltage of All I/O Pins (Except Audio Path)……..…-0.5Vto +6V the device at these or any other conditions Input Voltage of Audio Path (D+/D-)...-3.5V to +6V above those indicated in the operational Input Voltage of Audio Path (ADR/ADL)...-3.5V to +3.5V sections of this specification is not implied. Continuous Current of Audio Switches……………..…………±150mA Exposure to absolute maximum rating Continuous Current of All Switches……………..…………±20mA conditions for extended periods may affect Peak Current of Audio Switches (pulsed at 50% duty cycle) … ±200mA reliability. Peak Current of All Switches (pulsed at 50% duty cycle) ….. ±30mA Control input must be held HIGH or LOW; it ESD HBM mode………………………………………………… 4kV must not float. CDM mode………………………………………………… 1kV
Recommended Operating Conditions Symbol Parameter Min. Typ. Max. Unit
VDD Supply Voltage 1.7 - 5.5 V VIO Input Voltage of All I/O Pins (Except ADR/ADL/D+/D-) -0.3 - 5.5 V VAUDIO Input Voltage of Audio Path (ADR/ADL) -3 - 3 V VD+/- Input Voltage of D+/D- -3 - 5.5 V TA Operating Temperature -40 25 85 °C
Electrical Characteristics
(TA = –40°C to 85°C, unless otherwise noted. Typical values are at 3.3V Vdd and +25°C.)
Parameter Symbol Test Conditions Min. Typ. Max. Unit ANALOG SWITCH (ADR, ADL)
V Analog Signal Range ADR/ADL-, -3 - 3 V VD+/D- On-Resistance RON VADR/ADL = -3V to +3V, ILoad=-100mA - 1 - Ω On-Resistance Match ΔR Between Channels ON - 0.05 0.2 Ω On-Resistance R Flatness ONF VADR/ADL = -3V to +3V 0.005 0.025 Ω
ANALOG GROUND SWITCH (ADRGND, ADLGND)
VADRGND/ADLGND=0V, ILoad=- On-Resistance RON - 0.2 - Ω 100mA
AUDIO SWITCH DYNAMIC CHARACTERISTICS
V Turn-Off Time t AUDIO+/- = 3V, RL = 32Ω OFF 30 μs SSCAP=float V Turn-On Time t AUDIO+/- = 3V, RL = 32Ω ON 30 μs SSCAP=float SSCAP=0.01uF Soft-Start Time tSTART 5 ms VNC_ = 0.1V, 10% to 90% SSCAP=0.01uF Soft-Stop Time tSTOP 5 ms VNC_ = 0.1V, 90% to 10% V Off-Isolation (AUDIO+/- BIAS=0V, O V 30kHz - -85 - dB to D+/D-) ISO IN=0dBm (NOTE1) Channel-to-Channel VBIAS=0V, Crosstalk (AUDIO+ to XTALKD VIN=0dBm 30kHz - -85 - dB AUDIO-) (NOTE1) PI3A6386
www.diodes.com
October 2018 Document Number DS40399 Rev 4-2 3 © Diodes Incorporated
