Data Sheet. ADuM6132. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. VDD 1. 16 VISO. GND 2. 15 GNDISO. VDDL 3. 14 GNDA. VIA 4. 13 V. TOP VIEW
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 7

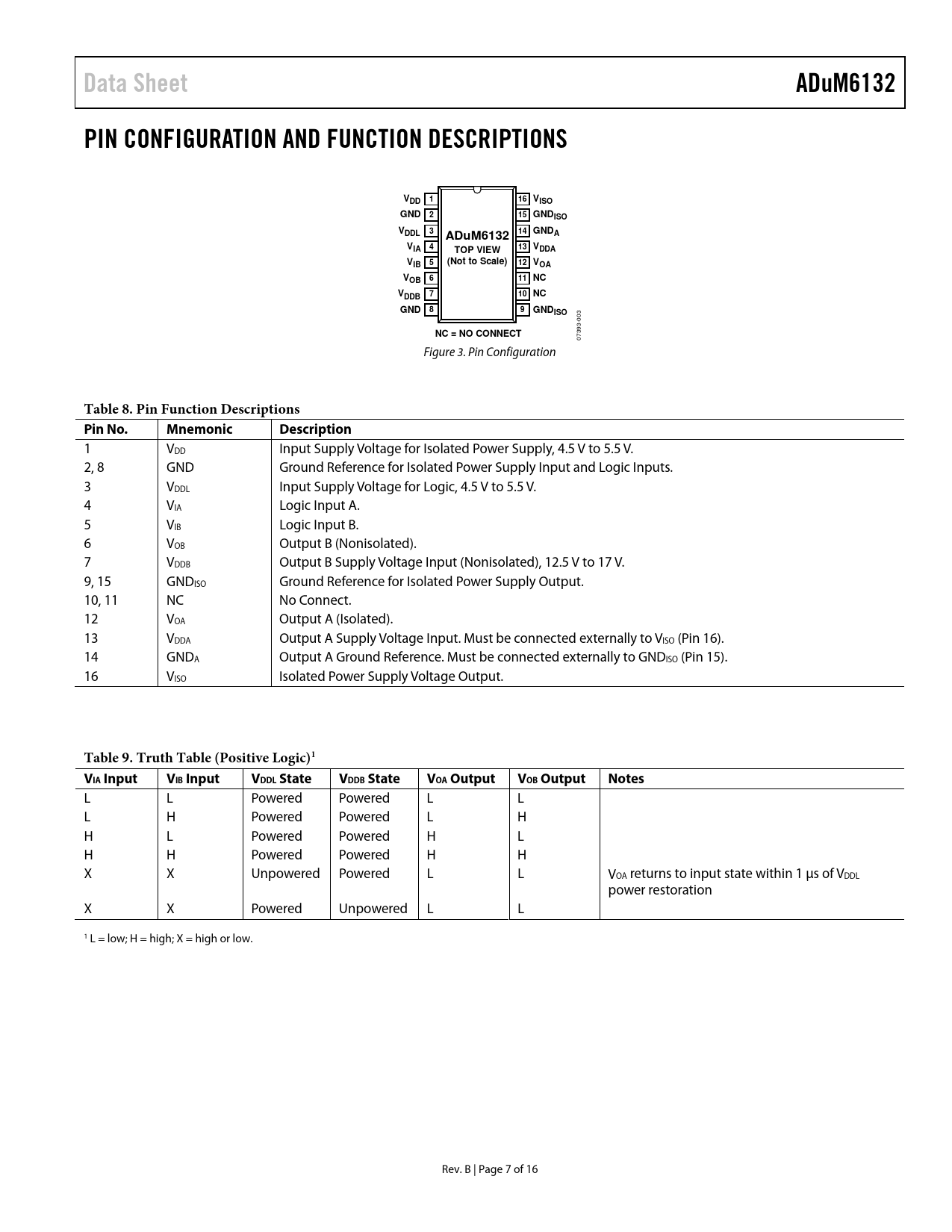

Data Sheet ADuM6132 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS VDD 1 16 VISO GND 2 15 GNDISO VDDL 3 14 GNDA ADuM6132 VIA 4 13 V TOP VIEW DDA V (Not to Scale) IB 5 12 VOA VOB 6 11 NC VDDB 7 10 NC GND 8 9 GNDISO
